Allegro自动10度走线详细教程

Allegro自动10度走线详细教程

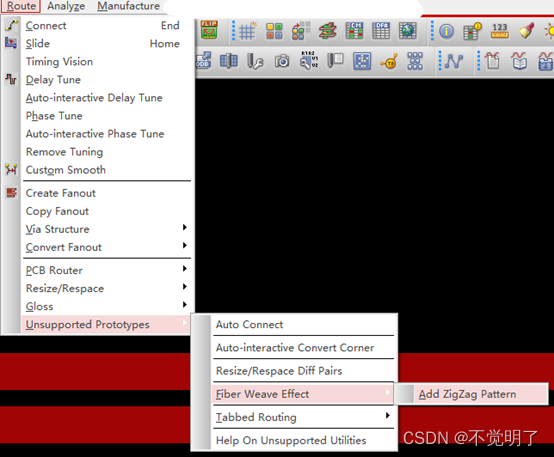

allegro 16.6更新到hotfix S071后新增fiber_weave命令，用于十度走线，如下

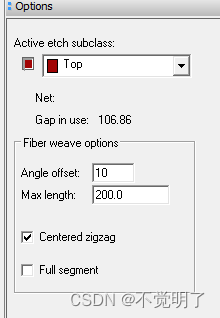

框选需要10度的走线

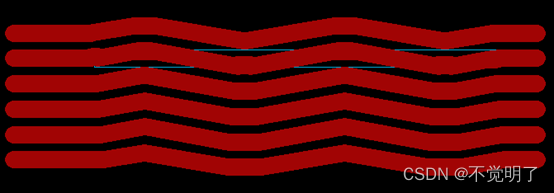

   如下图
