Win7以后系统中Protel99se不能加载库文件解决方法
在win7下安装Protel99se会出现无法添加原理图库,元件库的情况。
如图，提示“file not recognized”。
方法（推荐）：
利用原理图Find Component功能:

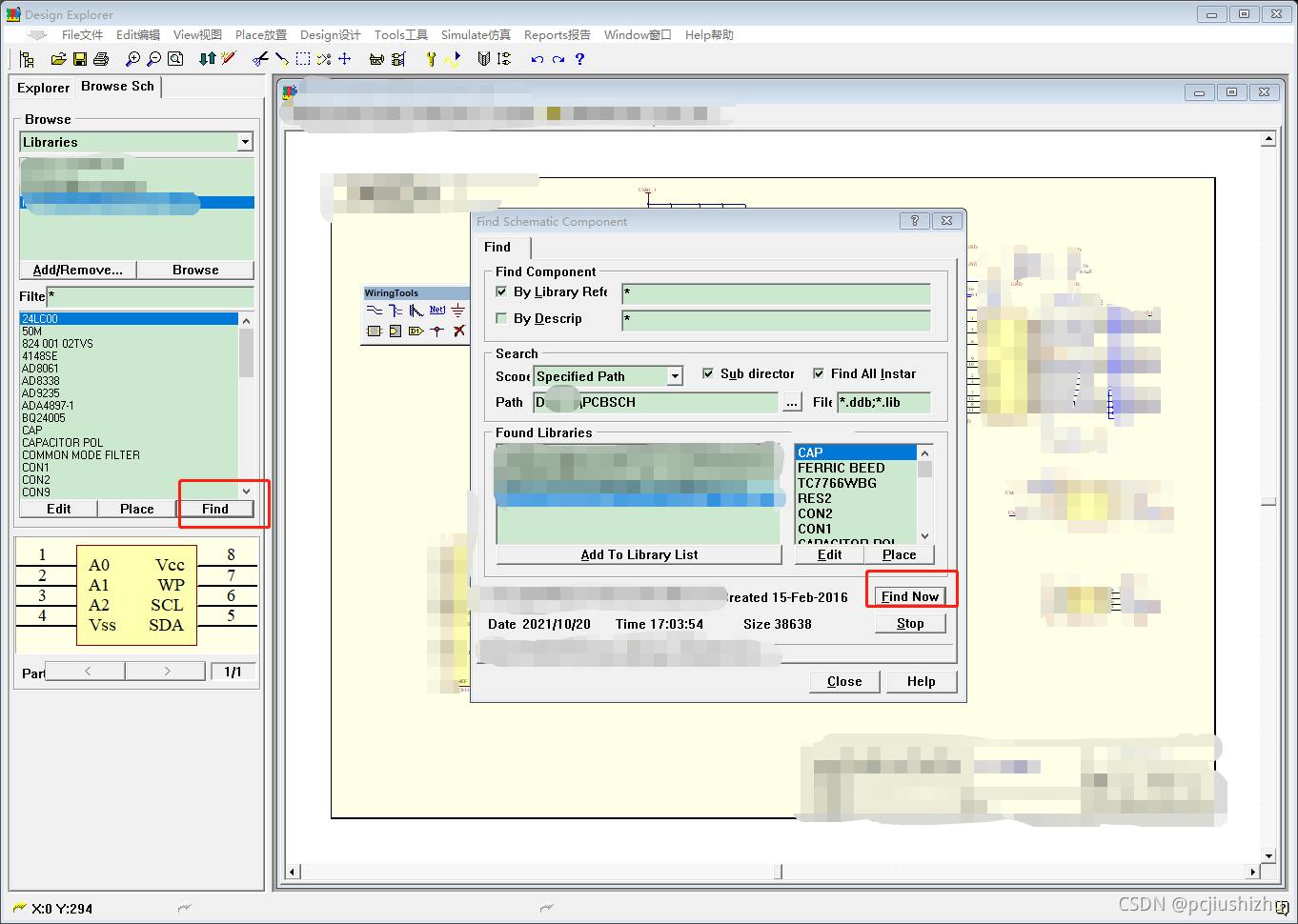

首先，添加原理图库，在**.sch文件中点击“Find”（下图）
在“Path”中找到存放设计的文件夹，点击“Find now”（下图）
再点击“close”即可;
2)PCB库的添加
如果在C:\Windows下找不到Advpcb99se.ini，不是没有安装这个文件，而是这个文件被安装到了用户目录下面去了(C:\Users\(自己的用户
名)\AppData\ Local \VirtualStore\Windows)，将这个文件复制到C:\windows下。修改这个文件，如下内容
Count=3
File0=D>MSACCESS:$RP>d:\Program Files\Design Explorer 99 SE\Library\Pcb\Generic Footprints𝑅𝑁>𝐴𝑑𝑣𝑝𝑐𝑏.𝑑𝑑𝑏 RN>Advpcb.ddb OP>𝑂𝑁>𝑃𝐶𝐵𝐹𝑜𝑜𝑡𝑝𝑟𝑖𝑛𝑡𝑠.𝑙𝑖𝑏 ON>PCBFootprints.lib ID>-1𝐴𝑇𝑇𝑅>0 ATTR>0 E>PCBLIB𝑆𝑇𝐹>𝐹𝑖𝑙𝑒1=𝐷>𝑀𝑆𝐴𝐶𝐶𝐸𝑆𝑆: STF>File1=D>MSACCESS: RP>https://www.gofarlic.com\Program Files\Design Explorer 99
SE\Library\Pcb\Connectors𝑅𝑁>𝑀𝑖𝑠𝑐𝑒𝑙𝑙𝑎𝑛𝑒𝑜𝑢𝑠𝐶𝑜𝑛𝑛𝑒𝑐𝑡𝑜𝑟𝑠.𝑑𝑑𝑏 RN>MiscellaneousConnectors.ddb OP>𝑂𝑁>𝑀𝑖𝑠𝑐𝑒𝑙𝑙𝑎𝑛𝑒𝑜𝑢𝑠𝐶𝑜𝑛𝑛𝑒𝑐𝑡𝑜𝑟𝑠.𝑙𝑖𝑏 ON>MiscellaneousConnectors.lib ID>-1𝐴𝑇𝑇𝑅>0 ATTR>0 E>PCBLIB$STF>
File2=D>MSACCESS:𝑅𝑃>𝐹:\Evan99𝑠𝑒𝐿𝐼𝐵 RP>F:\Evan99seLIB RN>MyPCBlib.Ddb𝑂𝑃> OP> ON>MyPCBLib.L IB𝐼𝐷>41 ID>41 ATTR>0𝐸>𝑃𝐶𝐵𝐿𝑖𝑏 E>PCBLib STF>
保存退出即可。
注意PCB库文件有一个ID值，每一个文件的ID都不同，一般方法是从XP里面的这个文件里去获取。当然也有最简单的方法，那就是在DDB文件里，lib文件直接放在最顶层，不要放在任何文件里，这样的话这个ID就是-1(Protel自带的元件库这个值都是-1就是这个原因吧)。这个方法不一定可靠，但是目前还没发现出错，加载不了的。
注意：如果改的是C:\windowns下面的advpcb99se.ini那么就只有以管理员权限运行才加载那些库，这样在平时使用会觉得挺麻烦。解决办法就是修改C:\Users\(用户
名)\AppData\Local\VirtualStore\Windows下的advpcb99seini，这样就不需要管理员权限运行了。(因为普通运行时就是从用户目录下加载的这个文件)，【Win10x64下测试发现，只有修改该目录下的文件才可成功添加PCB封装库，修改windows下的文件无效】
附上：
PCB ADVPCB99SE.INI
[Import File]
Path=*.*
Prompt=Import File
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=6
Count=0
[Export File]
Path=*.*
Prompt=Export File
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=7
Count=0
[PCB Libraries]
Path=https://www.gofarlic.com\OCT\PCBSCH\AD7380_SCH.lib
Prompt=PCB Libraries
SelFileType=All files(*.*)
EditorName=All
Sel File Type=All files(*.*)
WholeProject=False
TypeCount=2
Count=8
File0=D>MSACCESS:𝑅𝑃>𝐶:\Program𝐹𝑖𝑙𝑒𝑠\Design𝐸𝑥𝑝𝑙𝑜𝑟𝑒𝑟99𝑆𝐸\Library\Pcb\Generic𝐹𝑜𝑜𝑡𝑝𝑟𝑖𝑛𝑡𝑠 RP>C:\ProgramFiles\DesignExplorer99SE\Library\Pcb\GenericFootprints RP>C:\Program Files\Design Explorer 99 SE\Library\Pcb\Generic FootprintsRN>Advpcb.ddb𝑂𝑃> OP> OP>ON>PCB Footprints.lib𝐼𝐷>−1 ID>−1 ID>-1ATTR>0𝐸>𝑃𝐶𝐵𝐿𝐼𝐵 E>PCBLIB E>PCBLIBSTF>
File1=D>MSACCESS:𝑅𝑃>𝐷:\OCT\PCBSCH RP>D:\OCT\PCBSCH RP>https://www.gofarlic.com\OCT\PCBSCHRN>BldScnUsbV1.ddb𝑂𝑃> OP> OP>ON>PWR_BD.lib𝐼𝐷>−1 ID>−1 ID>-1ATTR>0𝐸>𝑃𝐶𝐵𝐿𝑖𝑏 E>PCBLib E>PCBLibSTF>
File2=D>MSACCESS:𝑅𝑃>𝐷:\OCT\PCBSCH RP>D:\OCT\PCBSCH RP>https://www.gofarlic.com\OCT\PCBSCHRN>BldScnUsbV1.ddb𝑂𝑃> OP> OP>ON>bladder11.lib𝐼𝐷>−1 ID>−1 ID>-1ATTR>0𝐸>𝑃𝐶𝐵𝐿𝑖𝑏 E>PCBLib E>PCBLibSTF>
File3=D>MSACCESS:𝑅𝑃>𝐷:\OCT\PCBSCH RP>D:\OCT\PCBSCH RP>https://www.gofarlic.com\OCT\PCBSCHRN>BldScnUsbV1.ddb𝑂𝑃> OP> OP>ON>DIGITALV2.lib𝐼𝐷>−1 ID>−1 ID>-1ATTR>0𝐸>𝑃𝐶𝐵𝐿𝑖𝑏 E>PCBLib E>PCBLibSTF>
File4=D>MSACCESS:𝑅𝑃>𝐷:\OCT\PCBSCH RP>D:\OCT\PCBSCH RP>https://www.gofarlic.com\OCT\PCBSCHRN>BldScnUsbV1.ddb𝑂𝑃> OP> OP>ON>OLED.lib𝐼𝐷>−1 ID>−1 ID>-1ATTR>0𝐸>𝑃𝐶𝐵𝐿𝑖𝑏 E>PCBLib E>PCBLibSTF>
File5=D>MSACCESS:𝑅𝑃>𝐷:\OCT\PCBSCH RP>D:\OCT\PCBSCH RP>https://www.gofarlic.com\OCT\PCBSCHRN>BldScnUsbV1.ddb𝑂𝑃> OP> OP>ON>AD7380.lib𝐼𝐷>−1 ID>−1 ID>-1ATTR>0𝐸>𝑃𝐶𝐵𝐿𝑖𝑏 E>PCBLib E>PCBLibSTF>
File6=D>MSACCESS:𝑅𝑃>𝐷:\OCT\PCBSCH RP>D:\OCT\PCBSCH RP>https://www.gofarlic.com\OCT\PCBSCHRN>BldScnUsbV1.ddb𝑂𝑃> OP> OP>ON>DAC81402RHBR.lib𝐼𝐷>−1 ID>−1 ID>-1ATTR>0𝐸>𝑃𝐶𝐵𝐿𝑖𝑏 E>PCBLib E>PCBLibSTF>
File7=D>MSACCESS:𝑅𝑃>𝐷:\OCT\PCBSCH RP>D:\OCT\PCBSCH RP>https://www.gofarlic.com\OCT\PCBSCHRN>BldScnUsbV1.ddb𝑂𝑃> OP> OP>ON>DIGITALV21.lib𝐼𝐷>−1 ID>−1 ID>-1ATTR>0𝐸>𝑃𝐶𝐵𝐿𝑖𝑏 E>PCBLib E>PCBLibSTF>
[File Open]
Path=*.*
Prompt=File Open
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=1
Count=0
[File Save As]
Path=*.*
Prompt=File Save As
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=1
Count=0
[Load Netlist]
Path=*.Net
Prompt=Load Netlist
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=2
Count=0
[Save Aperture]
Path=*.Apt
Prompt=Save Aperture
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=1
Count=0
[Load Aperture]
Path=*.Apt
Prompt=Load Aperture
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=2
Count=0
[Save Gerber]
Path=*.GBR
Prompt=Save Gerber
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=2
Count=0
[Load Gerber]
Path=*.G??
Prompt=Load Gerber
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=2
Count=0
[Load DXF]
Path=*.DXF
Prompt=Load DXF
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=2
Count=0
[ BOM ]
Path=*.BOM
Prompt=BOM
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=1
Count=0
[Report File]
Path=*.Rep
Prompt=Report File
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=1
Count=0
[Pick and Place File]
Path=*.Pik
Prompt=Pick and Place File
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=1
Count=0
[DRC File]
Path=*.Drc
Prompt=DRC File
SelFileType=
EditorName=All
Sel File Type=
WholeProject=False
TypeCount=1
Count=0
[SystemOptions]
SingleLayerMode=False
DraftTrackThreshold=20000
CleanRedraw=False
ShowInvisibleObjects=False
DisplaySpecialStrings=False
RedrawLayerOnToggle=True
UseCurrentForMultiLayer=False
UseNetColorForHighlight=False
HighlightFull=True
UseTransparent=False
UseDithered=False
BoardCursorType=0
TextToRectSize=11
AutoPan=True
ShowPadNets=True
ShowPadNumbers=True
ShowTestPoints=True
ShowViaNets=True
ShowStatusInfo=True
ShowStatusInterval=100
RepeatRotateItem=True
RepeatCircular=False
RepeatDegrees=45.00
RepeatX=10000000.00
RepeatY=0.00
RepeatXUnit=1
RepeatYUnit=1
RepeatCountDefault=1
RepeatInc=1
CheckPatterns=True
CheckComments=True
NetlistReportFile=True
NetlistReportDialog=True
DeleteUnconnectedComps=False
DeleteUnconnectedPrims=True
GlobalEditIncludeArcsWithTracks=False
ValidateOnLoad=False
SaveDefs=True
DoOnlineDRC=True
AutoPanMode=6
AutoPanSpeed=1200
AutoPanUnit=1
AutoPanSmallStep=30
AutoPanLargeStep=100
InteractiveRouteMode=1
UndoRedoStackSize=30
PolygonThreshold=5000
PolygonRepour=0
PlowThroughPolygons=False
ProtectLockedPrimitives=False
LoopRemoval=True
DeleteDeadEnds=False
QuestionDelete=False
QuestionGlobalChange=True
QuestionDrag=True
NearestComponent=True
RemoveDuplicatesOnOutput=True
DuplicateDesignatorsAllowed=False
AutoVia=True
SnapToCentre=True
ReportsCSV=False
DeselectFirst=False
DefaultPrimsPermanent=False
ComponentDragMode=0
RotationStep=90.00
OnlySelectVisible=True
PlaceShoveDepth=0
DrawMode=00000000000000000
Top Layer=255
Mid Layer 1=128
Mid Layer 2=32768
Mid Layer 3=65280
Mid Layer 4=8388608
Mid Layer 5=16776960
Mid Layer 6=8388736
Mid Layer 7=16711935
Mid Layer 8=32896
Mid Layer 9=65535
Mid Layer 10=8421504
Mid Layer 11=16777215
Mid Layer 12=8388736
Mid Layer 13=8421376
Mid Layer 14=12632256
Mid Layer 15=128
Mid Layer 16=32768
Mid Layer 17=65280
Mid Layer 18=8388608
Mid Layer 19=16776960
Mid Layer 20=8388736
Mid Layer 21=16711935
Mid Layer 22=32896
Mid Layer 23=65535
Mid Layer 24=8421504
Mid Layer 25=16777215
Mid Layer 26=8388736
Mid Layer 27=8421376
Mid Layer 28=12632256
Mid Layer 29=128
Mid Layer 30=32768
Bottom Layer=16711680
Top Overlay=65535
Bottom Overlay=32896
Top Paste=8421504
Bottom Paste=128
Top Solder Mask=8388736
Bottom Solder Mask=16711935
Internal Plane 1=32768
Internal Plane 2=128
Internal Plane 3=8388736
Internal Plane 4=8421376
Internal Plane 5=32768
Internal Plane 6=128
Internal Plane 7=8388736
Internal Plane 8=8421376
Internal Plane 9=32768
Internal Plane 10=128
Internal Plane 11=8388736
Internal Plane 12=8421376
Internal Plane 13=32768
Internal Plane 14=128
Internal Plane 15=8388736
Internal Plane 16=8421376
Drill Guide=128
Keep Out Layer=16711935
Mechanical Layer 1=16711935
Mechanical Layer 2=8388736
Mechanical Layer 3=32768
Mechanical Layer 4=32896
Mechanical Layer 5=16711935
Mechanical Layer 6=8388736
Mechanical Layer 7=32768
Mechanical Layer 8=32896
Mechanical Layer 9=16711935
Mechanical Layer 10=8388736
Mechanical Layer 11=32768
Mechanical Layer 12=32896
Mechanical Layer 13=16711935
Mechanical Layer 14=8388736
Mechanical Layer 15=32768
Mechanical Layer 16=32896
Drill Drawing=2752767
Multi Layer=12632256
Connect Layer=8421376
BackGround=0
DRC Errors=65280
Highlight Layer=16777215
Grid Color 1=6049101
Grid Color 10=9473425
Pad Hole Layer=15461320
Via Hole Layer=11599871
LayerDrawingOrder0=74
LayerDrawingOrder1=33
LayerDrawingOrder2=34
LayerDrawingOrder3=75
LayerDrawingOrder4=0
LayerDrawingOrder5=1
LayerDrawingOrder6=2
LayerDrawingOrder7=3
LayerDrawingOrder8=4
LayerDrawingOrder9=5
LayerDrawingOrder10=6
LayerDrawingOrder11=7
LayerDrawingOrder12=8
LayerDrawingOrder13=9
LayerDrawingOrder14=10
LayerDrawingOrder15=11
LayerDrawingOrder16=12
LayerDrawingOrder17=13
LayerDrawingOrder18=14
LayerDrawingOrder19=15
LayerDrawingOrder20=16
LayerDrawingOrder21=17
LayerDrawingOrder22=18
LayerDrawingOrder23=19
LayerDrawingOrder24=20
LayerDrawingOrder25=21
LayerDrawingOrder26=22
LayerDrawingOrder27=23
LayerDrawingOrder28=24
LayerDrawingOrder29=25
LayerDrawingOrder30=26
LayerDrawingOrder31=27
LayerDrawingOrder32=28
LayerDrawingOrder33=29
LayerDrawingOrder34=30
LayerDrawingOrder35=31
LayerDrawingOrder36=32
LayerDrawingOrder37=35
LayerDrawingOrder38=36
LayerDrawingOrder39=37
LayerDrawingOrder40=38
LayerDrawingOrder41=39
LayerDrawingOrder42=40
LayerDrawingOrder43=41
LayerDrawingOrder44=42
LayerDrawingOrder45=43
LayerDrawingOrder46=44
LayerDrawingOrder47=45
LayerDrawingOrder48=46
LayerDrawingOrder49=47
LayerDrawingOrder50=48
LayerDrawingOrder51=49
LayerDrawingOrder52=50
LayerDrawingOrder53=51
LayerDrawingOrder54=52
LayerDrawingOrder55=53
LayerDrawingOrder56=54
LayerDrawingOrder57=55
LayerDrawingOrder58=56
LayerDrawingOrder59=57
LayerDrawingOrder60=58
LayerDrawingOrder61=59
LayerDrawingOrder62=60
LayerDrawingOrder63=61
LayerDrawingOrder64=62
LayerDrawingOrder65=63
LayerDrawingOrder66=64
LayerDrawingOrder67=65
LayerDrawingOrder68=66
LayerDrawingOrder69=67
LayerDrawingOrder70=68
LayerDrawingOrder71=69
LayerDrawingOrder72=70
LayerDrawingOrder73=71
LayerDrawingOrder74=72
LayerDrawingOrder75=73
LayerDrawingOrder76=79
LayerDrawingOrder77=76
LayerDrawingOrder78=76
LayerDrawingOrder79=76
LayerDrawingOrder80=76
LayerDrawingOrder81=76
LayerDrawingOrder82=76
Com1=0,0,0,0,0
Com2=0,0,0,0,0
Com3=0,0,0,0,0
Com4=0,0,0,0,0
[ComponentTypeMap]
Count=0
[CachedFiles]
Count=4
File0=D>MSACCESS:𝑅𝑃>𝐷:\OCT\PCBSCH RP>D:\OCT\PCBSCH RN>BldScnUsbV1.ddb𝑂𝑃> OP> ON>DIGITALV2.lib𝐼𝐷>−1 ID>−1 ATTR>0𝐸>𝑃𝐶𝐵𝐿𝑖𝑏 E>PCBLib STF>
File1=D>MSACCESS:𝑅𝑃>𝐷:\OCT\PCBSCH RP>D:\OCT\PCBSCH RN>BldScnUsbV1.ddb𝑂𝑃> OP> ON>bladder11.lib𝐼𝐷>−1 ID>−1 ATTR>0𝐸>𝑃𝐶𝐵𝐿𝑖𝑏 E>PCBLib STF>
File2=D>MSACCESS:𝑅𝑃>𝐷:\OCT\PCBSCH RP>D:\OCT\PCBSCH RN>BldScnUsbV1.ddb𝑂𝑃> OP> ON>PWR_BD.lib𝐼𝐷>−1 ID>−1 ATTR>0𝐸>𝑃𝐶𝐵𝐿𝑖𝑏 E>PCBLib STF>
File3=D>MSACCESS:𝑅𝑃>𝐶:\Program𝐹𝑖𝑙𝑒𝑠\Design𝐸𝑥𝑝𝑙𝑜𝑟𝑒𝑟99𝑆𝐸\Library\Pcb\Generic𝐹𝑜𝑜𝑡𝑝𝑟𝑖𝑛𝑡𝑠 RP>C:\ProgramFiles\DesignExplorer99SE\Library\Pcb\GenericFootprints RN>Advpcb.ddb𝑂𝑃> OP> ON>PCB Footprints.lib𝐼𝐷>−1 ID>−1 ATTR>0𝐸>𝑃𝐶𝐵𝐿𝐼𝐵 E>PCBLIB STF>
