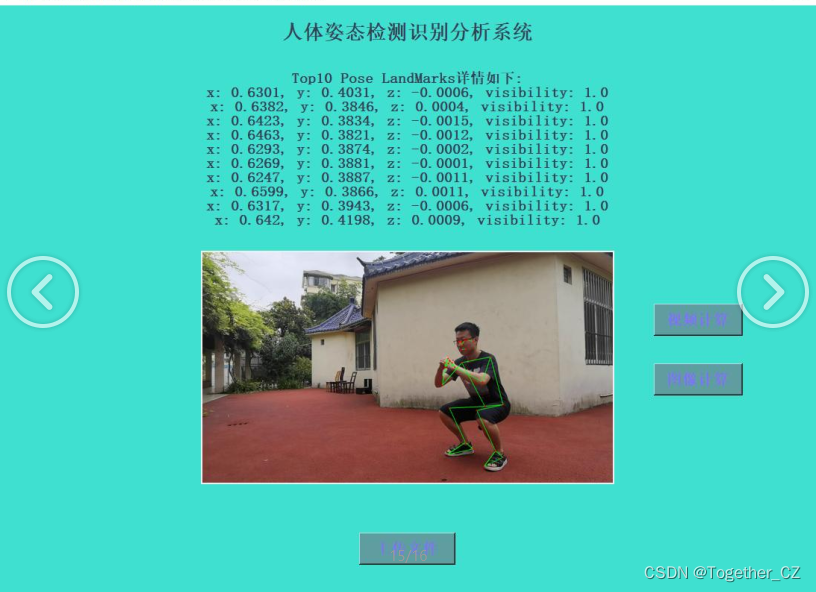

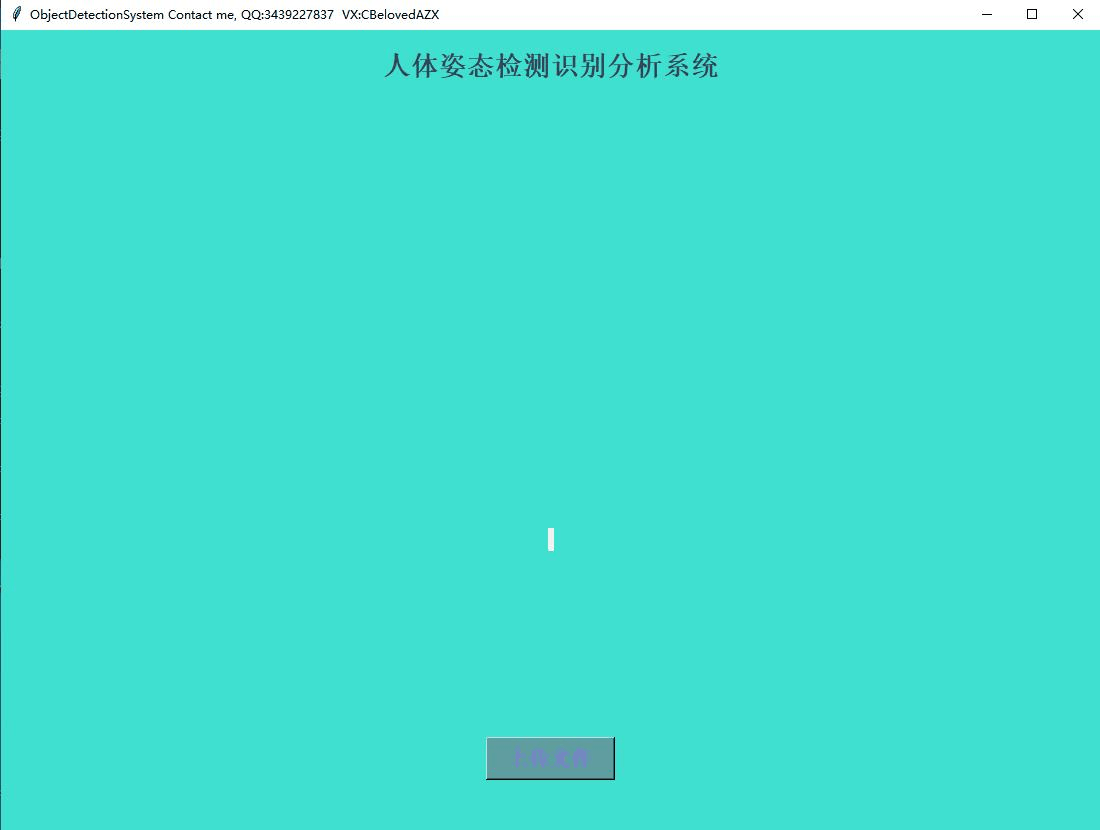

之前做的人体姿态检测大都是基于openpose或者是 yolo -pose之类的技术框架，这里主要是想基于一个开源的实现来完成人体姿态检测。首先看下效果图：

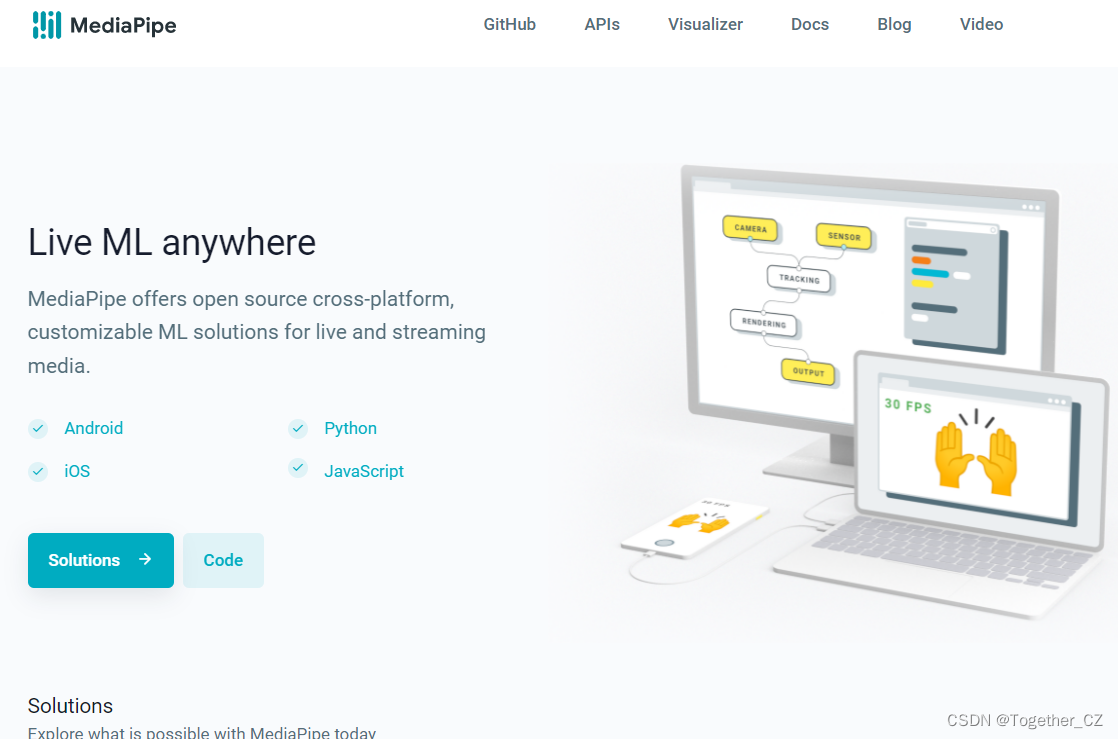

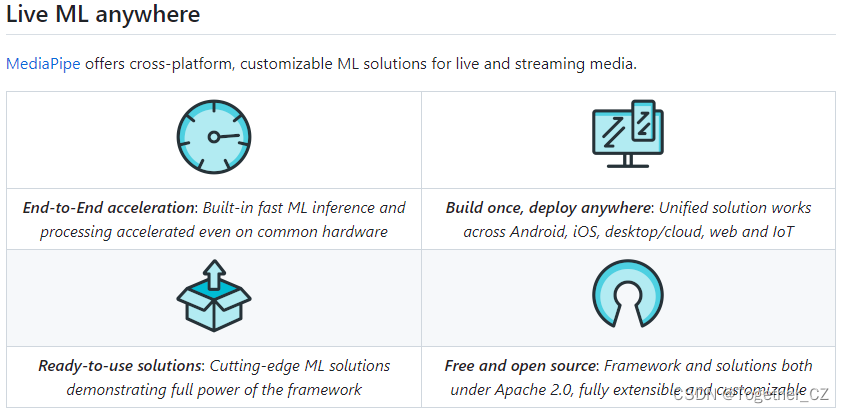

Mediapipe是google的一个开源项目，支持跨平台的常用ML方案。项目在这里，如下所示：

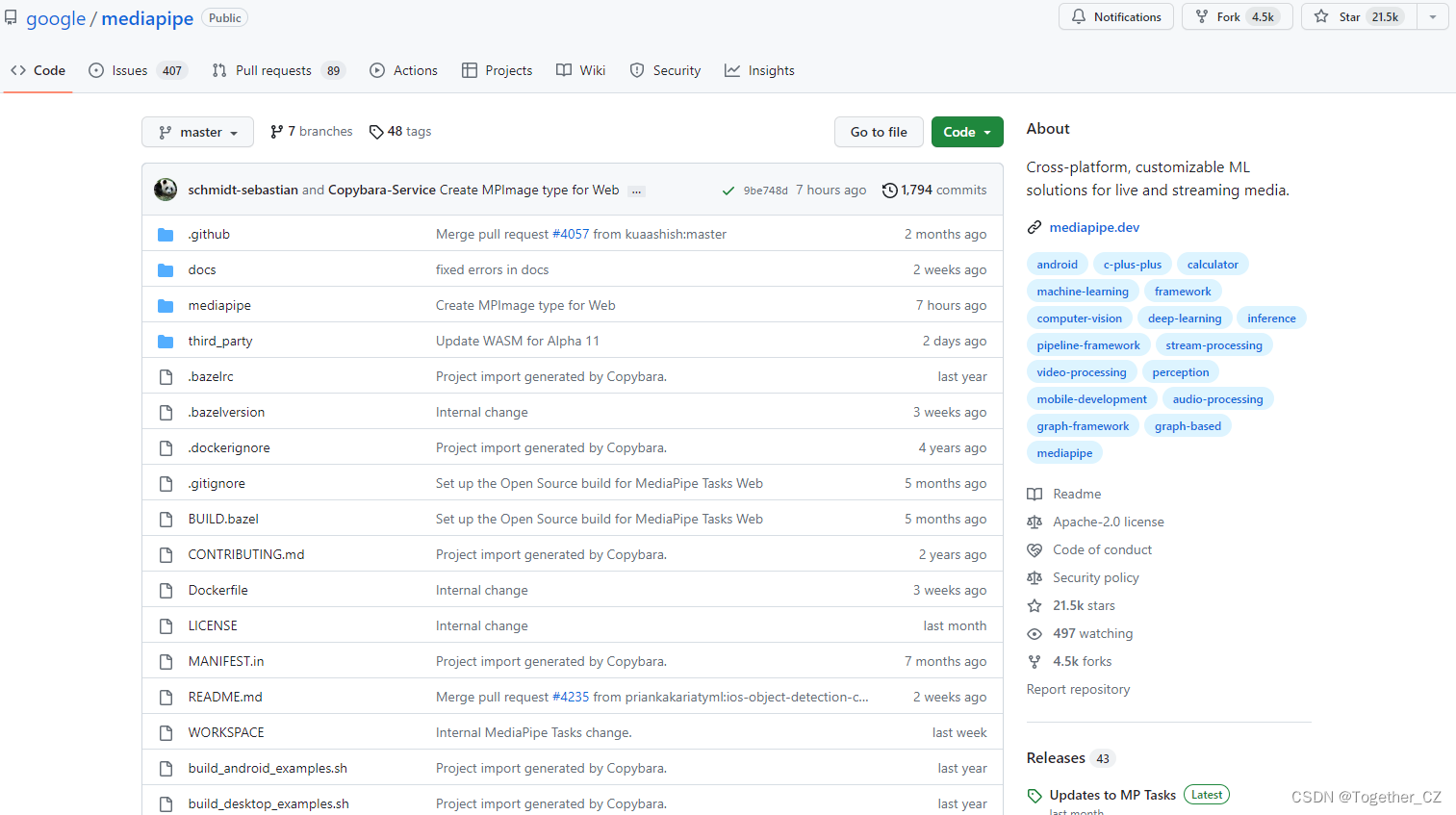

github 仓库在这里，如下所示：

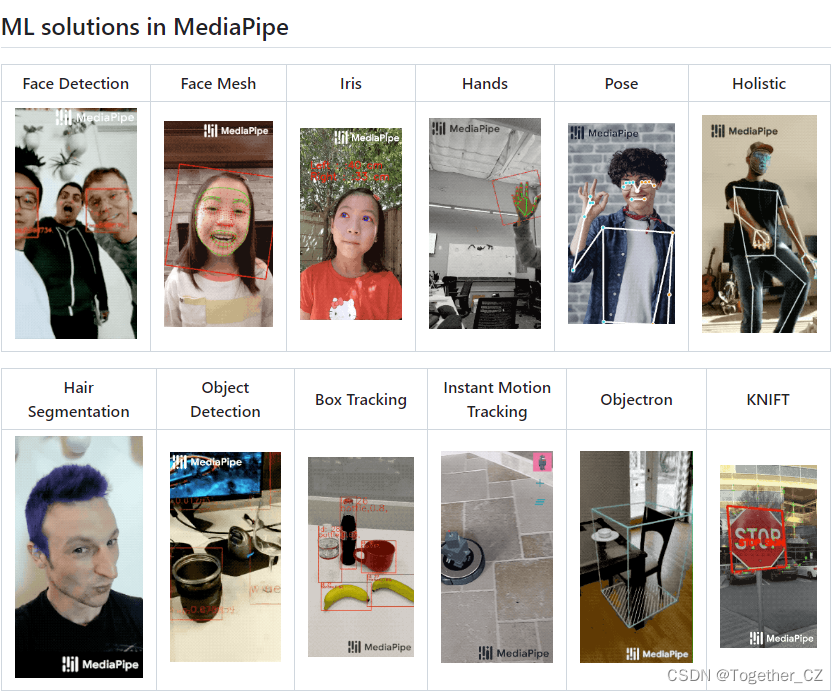

MediaPipe工具包包括框架和Solutions。框架是用c++、Java和Obj-C编写的，包含： Calculator API (C++)、Graph construction API (Protobuf)和Graph Execution API (C++, Java, Obj-C)。Solutions是基于特定的预训练TensorFlow或TFLite模型的开源预构建示例。MediaPipe Solutions构建在框架之上。目前，它提供了16个Solutions，包括：人脸检测、Face Mesh、虹膜、手、姿态、人体、人物分割、头发分割、目标检测、Box Tracking、Instant Motion Tracking、3D目标检测、特征匹配、AutoFlip、MediaSequence、YouTube-8M。如下所示：
这里主要是想基于mediapipe来实现人体姿态检测。
核心代码实现很简单，如下所示：

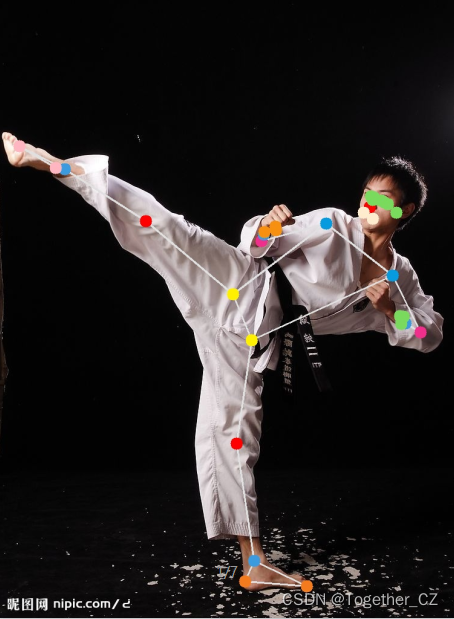

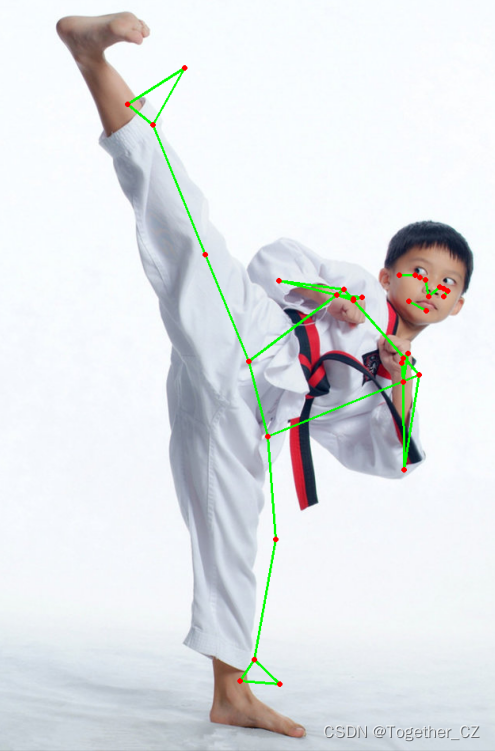

mp_pose = mp.solutions.posemp_drawing = mp.solutions.drawing_utilspose = mp_pose.Pose(static_image_mode=True, smooth_landmarks=True, min_detection_confidence=0.5, min_tracking_confidence=0.5 )# 姿态估计results = pose.process(img)print("results: ", results.pose_landmarks)# 可视化mp_drawing.draw_landmarks(img, results.pose_landmarks, mp_pose.POSE_CONNECTIONS)look_img(img)结果如下所示：

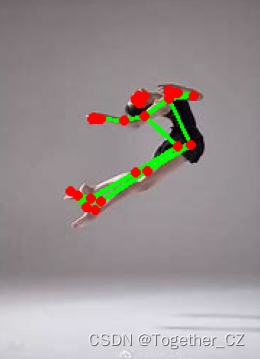

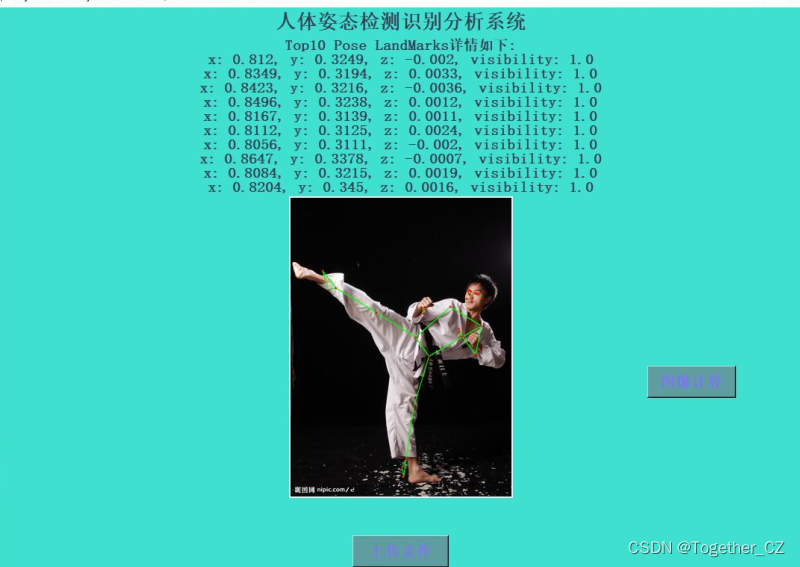

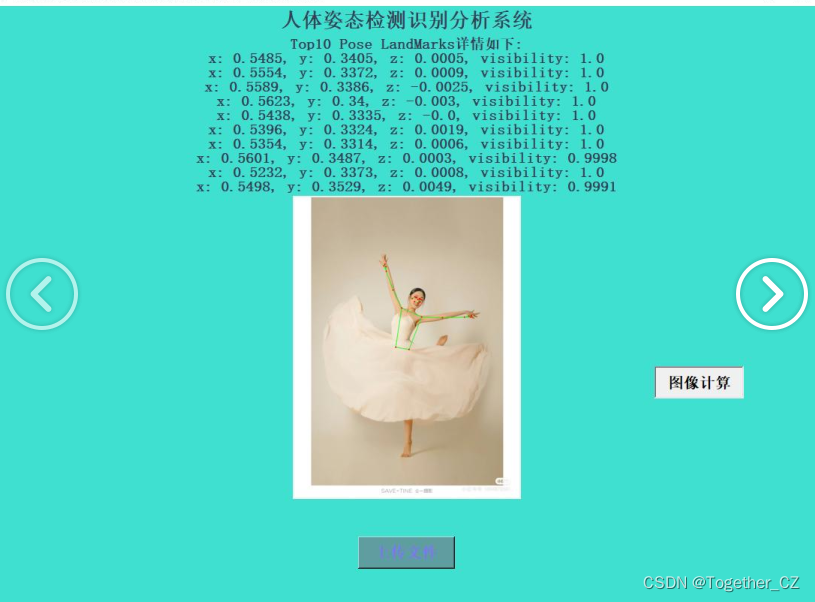

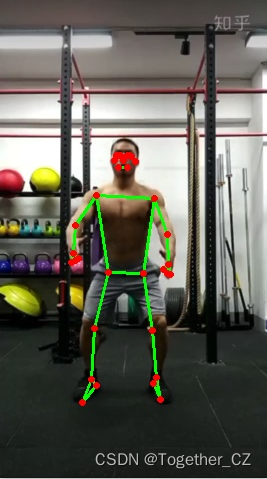

我们再多测试几张图片，如下所示：
效果还是可以的，毕竟是开箱即用的工具了。
这里打印出来了计算得到的landmarks，如下所示：
landmark { x: 0.8632122278213501 y: 0.39934223890304565 z: -0.0021378363016992807 visibility: 1.0}landmark { x: 0.8844274282455444 y: 0.387251079082489 z: 0.005716356914490461 visibility: 1.0}landmark { x: 0.8930062055587769 y: 0.3897208869457245 z: -0.002450103173032403 visibility: 1.0}landmark { x: 0.9013738632202148 y: 0.39209526777267456 z: 0.0007952205487526953 visibility: 1.0}landmark { x: 0.8574270009994507 y: 0.378071129322052 z: 0.0035106923896819353 visibility: 1.0}landmark { x: 0.8468424081802368 y: 0.37453708052635193 z: 0.003549371613189578 visibility: 1.0}landmark { x: 0.8365076184272766 y: 0.3711674213409424 z: -0.0029587973840534687 visibility: 1.0}landmark { x: 0.8933941125869751 y: 0.3996911644935608 z: -0.0009722764370962977 visibility: 0.9999998807907104}landmark { x: 0.8056524991989136 y: 0.37151792645454407 z: 0.0004327383066993207 visibility: 0.9999991655349731}landmark { x: 0.8579585552215576 y: 0.4187290668487549 z: 6.539761670865119e-05 visibility: 0.9999994039535522}landmark { x: 0.8241762518882751 y: 0.40628987550735474 z: 0.004473073408007622 visibility: 0.9999991655349731}landmark { x: 0.8441612720489502 y: 0.5035648345947266 z: -0.25567159056663513 visibility: 0.9999856948852539}landmark { x: 0.6964893341064453 y: 0.39029890298843384 z: -0.24796368181705475 visibility: 0.9999732971191406}landmark { x: 0.8154499530792236 y: 0.6286311745643616 z: -0.5366763472557068 visibility: 0.9982965588569641}landmark { x: 0.567449688911438 y: 0.37861955165863037 z: -0.5087283253669739 visibility: 0.9612370133399963}landmark { x: 0.8140097856521606 y: 0.5123477578163147 z: -0.5489024519920349 visibility: 0.9991863369941711}landmark { x: 0.6818426847457886 y: 0.3975215554237366 z: -0.6002770066261292 visibility: 0.9928218722343445}landmark { x: 0.8133549690246582 y: 0.4815672039985657 z: -0.5735042691230774 visibility: 0.9980783462524414}landmark { x: 0.7153089642524719 y: 0.4053640067577362 z: -0.6815528273582458 visibility: 0.9833958148956299}landmark { x: 0.822299599647522 y: 0.4749387800693512 z: -0.5469208359718323 visibility: 0.9978579878807068}landmark { x: 0.7317229509353638 y: 0.4011012315750122 z: -0.6464983820915222 visibility: 0.9760293364524841}landmark { x: 0.8098946809768677 y: 0.48704978823661804 z: -0.5442765355110168 visibility: 0.9976638555526733}landmark { x: 0.7142665982246399 y: 0.4025900065898895 z: -0.6355682611465454 visibility: 0.9730454087257385}landmark { x: 0.546131432056427 y: 0.5851266384124756 z: -0.09281446784734726 visibility: 0.9991334080696106}landmark { x: 0.508682131767273 y: 0.48553502559661865 z: 0.04270992800593376 visibility: 0.9998688697814941}landmark { x: 0.5611737966537476 y: 0.7204070091247559 z: -0.24625882506370544 visibility: 0.9888652563095093}landmark { x: 0.42196184396743774 y: 0.3439556956291199 z: -0.3940356969833374 visibility: 0.9972810745239258}landmark { x: 0.5202962756156921 y: 0.8794336915016174 z: -0.15859434008598328 visibility: 0.9323670268058777}landmark { x: 0.31913697719573975 y: 0.17321842908859253 z: -0.18911319971084595 visibility: 0.9997671246528625}landmark { x: 0.49125418066978455 y: 0.9076821208000183 z: -0.21756611764431 visibility: 0.90669184923172}landmark { x: 0.26992592215538025 y: 0.1453598439693451 z: -0.29918187856674194 visibility: 0.99979168176651}landmark { x: 0.570073127746582 y: 0.9116483330726624 z: -0.3478630483150482 visibility: 0.9282693862915039}landmark { x: 0.381407231092453 y: 0.09821030497550964 z: -0.4874095618724823 visibility: 0.9996092915534973}为了方便界面展示，这里对其进行解析处理，结果输出如下所示：
x: 0.8632, y: 0.3993, z: -0.0021, visibility: 1.0x: 0.8844, y: 0.3873, z: 0.0057, visibility: 1.0x: 0.893, y: 0.3897, z: -0.0025, visibility: 1.0x: 0.9014, y: 0.3921, z: 0.0008, visibility: 1.0x: 0.8574, y: 0.3781, z: 0.0035, visibility: 1.0x: 0.8468, y: 0.3745, z: 0.0035, visibility: 1.0x: 0.8365, y: 0.3712, z: -0.003, visibility: 1.0x: 0.8934, y: 0.3997, z: -0.001, visibility: 1.0x: 0.8057, y: 0.3715, z: 0.0004, visibility: 1.0x: 0.858, y: 0.4187, z: 0.0001, visibility: 1.0x: 0.8242, y: 0.4063, z: 0.0045, visibility: 1.0x: 0.8442, y: 0.5036, z: -0.2557, visibility: 1.0x: 0.6965, y: 0.3903, z: -0.248, visibility: 1.0x: 0.8154, y: 0.6286, z: -0.5367, visibility: 0.9983x: 0.5674, y: 0.3786, z: -0.5087, visibility: 0.9612x: 0.814, y: 0.5123, z: -0.5489, visibility: 0.9992x: 0.6818, y: 0.3975, z: -0.6003, visibility: 0.9928x: 0.8134, y: 0.4816, z: -0.5735, visibility: 0.9981x: 0.7153, y: 0.4054, z: -0.6816, visibility: 0.9834x: 0.8223, y: 0.4749, z: -0.5469, visibility: 0.9979x: 0.7317, y: 0.4011, z: -0.6465, visibility: 0.976x: 0.8099, y: 0.487, z: -0.5443, visibility: 0.9977x: 0.7143, y: 0.4026, z: -0.6356, visibility: 0.973x: 0.5461, y: 0.5851, z: -0.0928, visibility: 0.9991x: 0.5087, y: 0.4855, z: 0.0427, visibility: 0.9999x: 0.5612, y: 0.7204, z: -0.2463, visibility: 0.9889x: 0.422, y: 0.344, z: -0.394, visibility: 0.9973x: 0.5203, y: 0.8794, z: -0.1586, visibility: 0.9324x: 0.3191, y: 0.1732, z: -0.1891, visibility: 0.9998x: 0.4913, y: 0.9077, z: -0.2176, visibility: 0.9067x: 0.2699, y: 0.1454, z: -0.2992, visibility: 0.9998x: 0.5701, y: 0.9116, z: -0.3479, visibility: 0.9283x: 0.3814, y: 0.0982, z: -0.4874, visibility: 0.9996之后开发专用的可视化界面实现可视化推理如下所示：
界面大小的限制，这里仅展示了Top 10的关键点信息数据，感兴趣的话都可以自行尝试。
