Fluent MyBatis实战：动态SQL生成与代码构建

阅读数 1077

特性

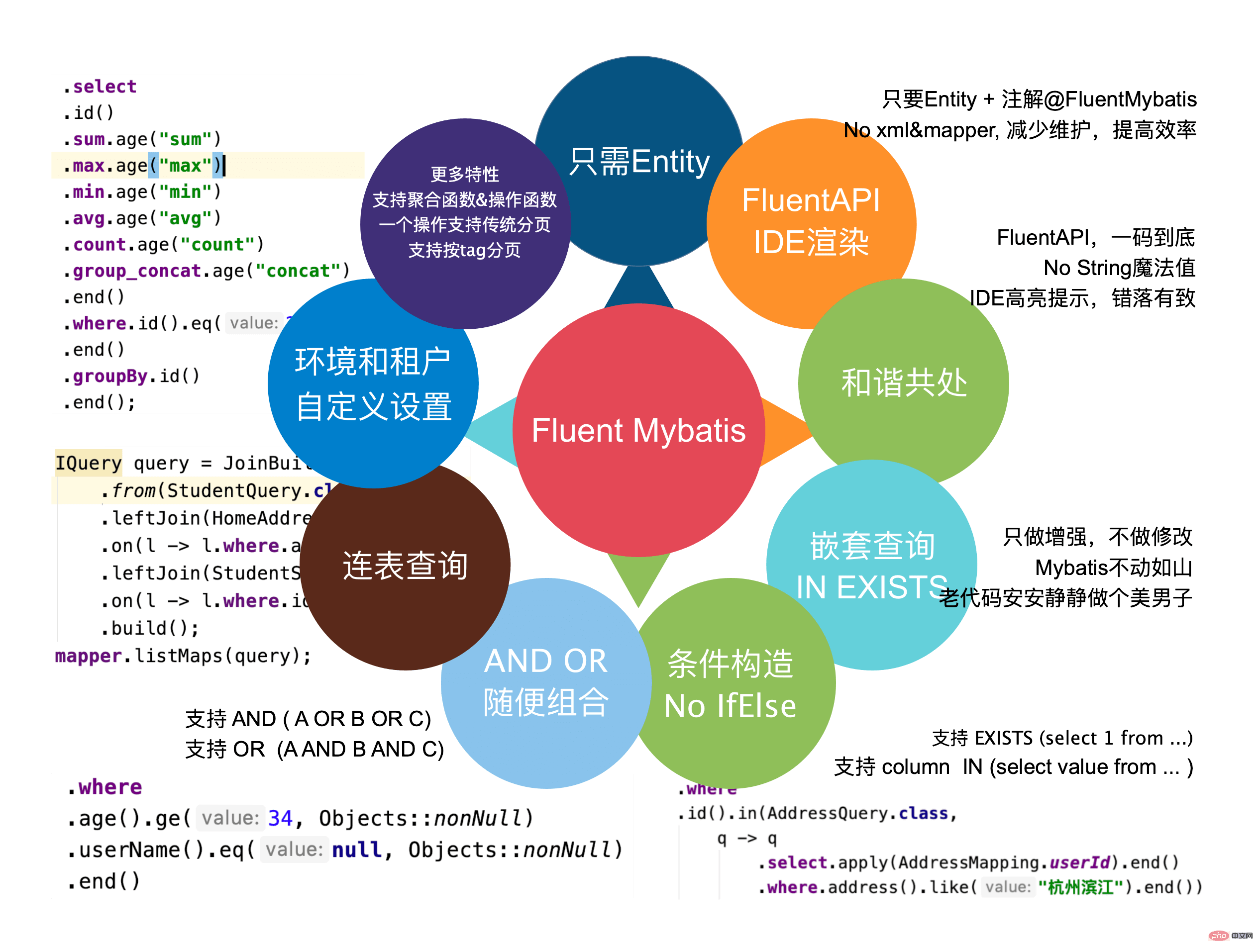

看一下官方给出的特性图

Java Fluent Mybatis如何构建项目与实现代码生成

给出对几个特性乍一看还是很全面的，其中比较吸引我的是两点。

1、从图中给出的语法，和sql十分相近，不仔细看还以为是直接sql语句扔了上来。看上去就比较实用。

2、No xml&mapper，虽然mybatis-plus已经做到实用 IService接口实现大部分的sql操作

立即学习“Java免费学习笔记（深入）”；

项目搭建

springboot搭建一项目的过程就不过多赘述了，这里说下我实用的springboot版本

<parent>
        <groupid>org.springframework.boot</groupid>
        <artifactid>spring-boot-starter-parent</artifactid>
        <version>2.5.5</version>
        <relativepath></relativepath> <!-- lookup parent from repository -->
    </parent>

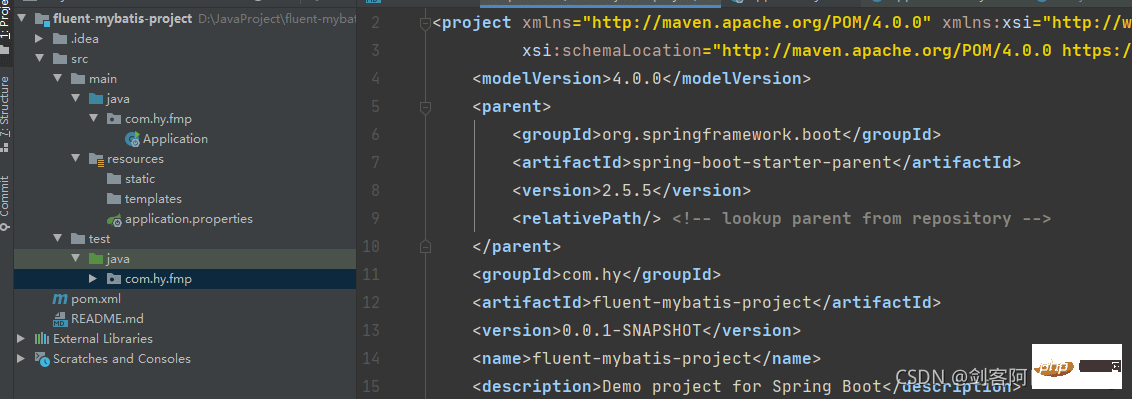

代码结构如下：

Java Fluent Mybatis如何构建项目与实现代码生成

maven依赖引入-fluent-mybatis

<properties>
    <fluent-mybatis.version>1.8.7</fluent-mybatis.version></properties><dependencies>
    <!-- 引入fluent-mybatis 运行依赖包, scope为compile -->
    <dependency>
        <groupid>com.github.atool</groupid>
        <artifactid>fluent-mybatis</artifactid>
        <version>${fluent-mybatis.version}</version>
    </dependency>
    <!-- 引入fluent-mybatis-processor, scope设置为provider 编译需要，运行时不需要 -->
    <dependency>
        <groupid>com.github.atool</groupid>
        <artifactid>fluent-mybatis-processor</artifactid>
        <scope>provided</scope>
        <version>${fluent-mybatis.version}</version>
    </dependency></dependencies>

完整maven依赖如下

100

101

102

103

<!--?xml  version="1.0" encoding="UTF-8"?--><project>
    <modelversion>4.0.0</modelversion>
    <parent>
        <groupid>org.springframework.boot</groupid>
        <artifactid>spring-boot-starter-parent</artifactid>
        <version>2.5.5</version>
        <relativepath></relativepath> <!-- lookup parent from repository -->
    </parent>
    <groupid>com.hy</groupid>
    <artifactid>fluent-mybatis-project</artifactid>
    <version>0.0.1-SNAPSHOT</version>
    <name>fluent-mybatis-project</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
        <fluent-mybatis.version>1.8.7</fluent-mybatis.version>
    </properties>
    <dependencies>
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter-web</artifactid>
        </dependency>

        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-devtools</artifactid>
            <scope>runtime</scope>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-configuration-processor</artifactid>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupid>org.projectlombok</groupid>
            <artifactid>lombok</artifactid>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupid>org.springframework.boot</groupid>
            <artifactid>spring-boot-starter-test</artifactid>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupid>org</groupid>
            <artifactid>jaudiotagger</artifactid>
            <version>2.0.1</version>
        </dependency>
        <dependency>
            <groupid>com.google.guava</groupid>
            <artifactid>guava</artifactid>
            <version>30.1.1-jre</version>
        </dependency>
        <dependency>
            <groupid>cn.hutool</groupid>
            <artifactid>hutool-all</artifactid>
            <version>5.5.2</version>
        </dependency>
        <!-- 引入fluent-mybatis 运行依赖包, scope为compile -->
        <dependency>
            <groupid>com.github.atool</groupid>
            <artifactid>fluent-mybatis</artifactid>
            <version>${fluent-mybatis.version}</version>
        </dependency>
        <!-- 引入fluent-mybatis-processor, scope设置为provider 编译需要，运行时不需要 -->
        <dependency>
            <groupid>com.github.atool</groupid>
            <artifactid>fluent-mybatis-processor</artifactid>
            <scope>provided</scope>
            <version>${fluent-mybatis.version}</version>
        </dependency>
        <dependency>
            <groupid>org.mybatis.spring.boot</groupid>
            <artifactid>mybatis-spring-boot-starter</artifactid>
            <version>2.2.0</version>
        </dependency>

        <dependency>
            <groupid>mysql</groupid>
            <artifactid>mysql-connector-java</artifactid>
            <scope>runtime</scope>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupid>org.springframework.boot</groupid>
                <artifactid>spring-boot-maven-plugin</artifactid>
                <configuration>
                    <excludes>
                        <exclude>
                            <groupid>org.projectlombok</groupid>
                            <artifactid>lombok</artifactid>
                        </exclude>
                    </excludes>
                </configuration>
            </plugin>
        </plugins>
    </build>

</project>

表构建

在数据库创建一张测试表，表比较简单，先试试看。sql如下：

CREATE TABLE `test_fluent_mybatis` (
  `id` int NOT NULL AUTO_INCREMENT COMMENT '自增主键',
  `name` varchar(255) DEFAULT NULL COMMENT '姓名',
  `age` int DEFAULT NULL COMMENT '年龄',
  `create_time` datetime DEFAULT NULL COMMENT '创建时间',
  `del_flag` int DEFAULT NULL COMMENT '是否删除',
  PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_0900_ai_ci;

代码生成工具类

注意：放到测试代码包中。结构如下图：

Java Fluent Mybatis如何构建项目与实现代码生成

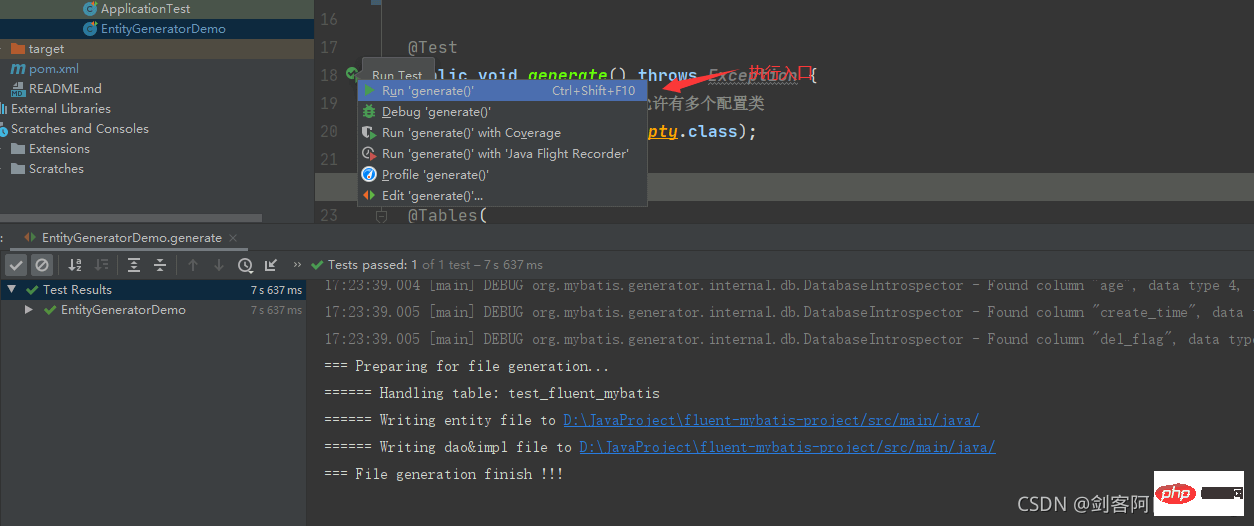

代码生成工具类代码，先按照官方给的简单样例来，如下:

package com.hy.fmp;

import cn.org.atool.generator.FileGenerator;
import cn.org.atool.generator.annotation.Table;
import cn.org.atool.generator.annotation.Tables;
import org.junit.jupiter.api.Test;

public class EntityGeneratorDemo {
  // 数据源 url
  static final String url =
      "jdbc:mysql://192.168.0.16:3306/test?useUnicode=true&amp;characterEncoding=utf8";
  // 数据库用户名
  static final String username = "root";
  // 数据库密码
  static final String password = "123456";

  @Test
  public void generate() throws Exception {
    // 引用配置类，build方法允许有多个配置类
    FileGenerator.build(Empty.class);
  }

  @Tables(
      // 设置数据库连接信息
      url = url,
      username = username,
      password = password,
      // 设置entity类生成src目录, 相对于 user.dir
      srcDir = "src/main/java",
      // 设置entity类的package值
      basePack = "com.hy.fmp.fluent",
      // 设置dao接口和实现的src目录, 相对于 user.dir
      daoDir = "src/main/java",
      // 设置哪些表要生成Entity文件
      tables = {@Table(value = {"test_fluent_mybatis"})})
  static class Empty { // 类名随便取, 只是配置定义的一个载体
  }
}
