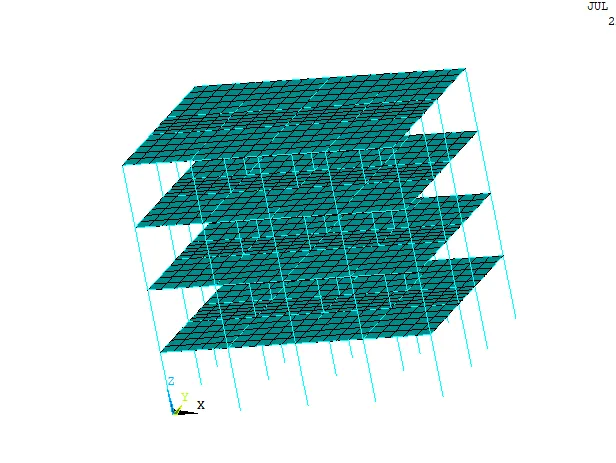

板梁框架结构APDL建模实践

FINISH

/CLEAR

! /UIS,MSGPOP,2

KEYW,PR_SGVOF,0

/NERR,99999,99999, ,0,99999,

/PREP7

et,1,beam189

et,2,beam189

et,3,shell181

keyopt,3,3,2

mp,ex,1,2.0e10

mp,dens,1,2500

mp,prxy,1,0.2

mp,ex,2,2.0e10

mp,dens,2,2500

mp,prxy,2,0.2

mp,ex,3,2.0e10

mp,dens,3,2500

mp,prxy,3,0.2

sectype,1,beam,rect

secdata,0.25,0.6

secoffset,user,-0.125,0.3

sectype,2,beam,rect

secdata,0.25,0.6

secoffset,user,0.125,0.3

sectype,3,beam,rect

secdata,0.6,0.6

secoffset,user,-0.3,0.3

sectype,4,beam,rect

secdata,0.6,0.6

secoffset,user,-0.3,0

sectype,5,beam,rect

secdata,0.6,0.6

secoffset,user,-0.3,-0.3

sectype,6,beam,rect

secdata,0.6,0.6

secoffset,user,0,0.3

sectype,7,beam,rect

secdata,0.6,0.6

secoffset,user,0,-0.3

sectype,8,beam,rect

secdata,0.6,0.6

secoffset,user,0.3,0.3

sectype,9,beam,rect

secdata,0.6,0.6

secoffset,user,0.3,0

sectype,10,beam,rect

secdata,0.6,0.6

secoffset,user,0.3,-0.3

sectype,11,beam,rect

secdata,0.25,0.5

secoffset,user,0,0.25

sectype,12,beam,rect

secdata,0.6,0.6

sectype,13,shell

secdata,0.1

secoffset,top

!*************************

*do,i,0,4

k,i+1,i*3.6,,3.3

*enddo

kgen,2,1,5,1,,4.2

kgen,2,1,5,1,,4.2+2.4

kgen,2,1,5,1,,4.2+2.4+4.2

*do,i,1,4

l,i,i+1

*enddo

*do,i,6,9

l,i,i+1

*enddo

*do,i,11,14

l,i,i+1

*enddo

*do,i,16,19

l,i,i+1

*enddo

*do,i,1,15

l,i,i+5

*enddo

*do,i,1,4

a,i,i+1,i+6,i+5

*enddo

*do,i,6,9

a,i,i+1,i+6,i+5

*enddo

*do,i,11,14

a,i,i+1,i+6,i+5

*enddo
