Python实现Fleiss Kappa一致性分析：计算Z值和p值等相关统计量

阅读数 6

参考资料

Fleiss Kappa的定义

Fleiss Kappa的原论文因为要付费才能阅读，我这里就不放链接了

Fleiss' kappa - Wikipediahttps://en.wikipedia.org/wiki/Fleiss%27_kappa

Fleiss Kappa相关统计量 Z值，p值，95%置信区间

属性一致性分析的 kappa 统计量的方法和公式 - Minitab请选择您所选的方法或公式。https://support.minitab.com/zh-cn/minitab/20/help-and-how-to/quality-and-process-improvement/measurement-system-analysis/how-to/attribute-agreement-analysis/attribute-agreement-analysis/methods-and-formulas/kappa-statistics/#testing-significance-of-fleiss-kappa-unknown-standard刘伟. 属性值测量系统的相关性研究[D].南京理工大学,2010.https://kns.cnki.net/kcms2/article/abstract?v=30M9_8jKqe0eeyUFGF2Hn7wI0LSs-Y73fT2Qnj25ZztRFGn-k7w38HpuuprNL7uDobRQegHTkIu0rsYpWZAWQXSLhgCo5vf_lwfoH8muLibc8UPwv_ZzuvwiTEcRGaXb&uniplatform=NZKPT&language=CHSFleiss' kappa in SPSS Statistics | Laerd Statisticshttps://statistics.laerd.com/spss-tutorials/fleiss-kappa-in-spss-statistics.php

第一个和第二个链接提供了计算公式，第三个链接是SPSS的计算Fleiss Kappa的图文教程，没有涉及公式推理。

前情提要

网上关于Fleiss Kappa的资料比较多，但是相关统计量，如Z值和P值的资料比较少。维基百科只提供了Fleiss Kappa的计算方法，没有提及相关统计量的计算。

期间找了很多工具，如SPSS，Minitab和SPSSAU。SPSS和Minitab是付费软件，SPSSAU是免费的在线分析平台。但SPSSAU只允许5万条及以下的数据进行分析，而我的数据量超过了5万条。

找遍全网好像没有人公开计算Fleiss Kappa相关统计量的代码，而可以计算这些统计量的软件要么是付费的，要么是存在数据量的限制，我就想能不能自己实现一个计算工具。

Fleiss Kappa原理

关于Fleiss Kappa的原理部分，我觉得还是看维基百科比较好，他写的比较清楚，还提供了数据示例。下面是关于Fleiss Kappa的计算代码。

import numpy as npdef fleiss_kappa(data: np.array):    """ Calculates Fleiss' kappa coefficient for inter-rater agreement. Args: data: numpy array of shape (subjects, categories), where each element represents the number of raters who assigned a particular category to a subject. Returns: kappa: Fleiss' kappa coefficient. """    subjects, categories = data.shape    n_rater = np.sum(data[0])     p_j = np.sum(data, axis=0) / (n_rater * subjects)    P_e_bar = np.sum(p_j ** 2)     P_i = (np.sum(data ** 2, axis=1) - n_rater) / (n_rater * (n_rater - 1))    P_bar = np.mean(P_i)     K = (P_bar - P_e_bar) / (1 - P_e_bar)

subjects是样本数量，相当于维基百科中的N

categories是类别数量，相当于维基百科中的k

n_rater是投票者的数量，相当于维基百科中的n

data是输入的矩阵，第i行j列的元素是维基百科中的 $n_{ij}$

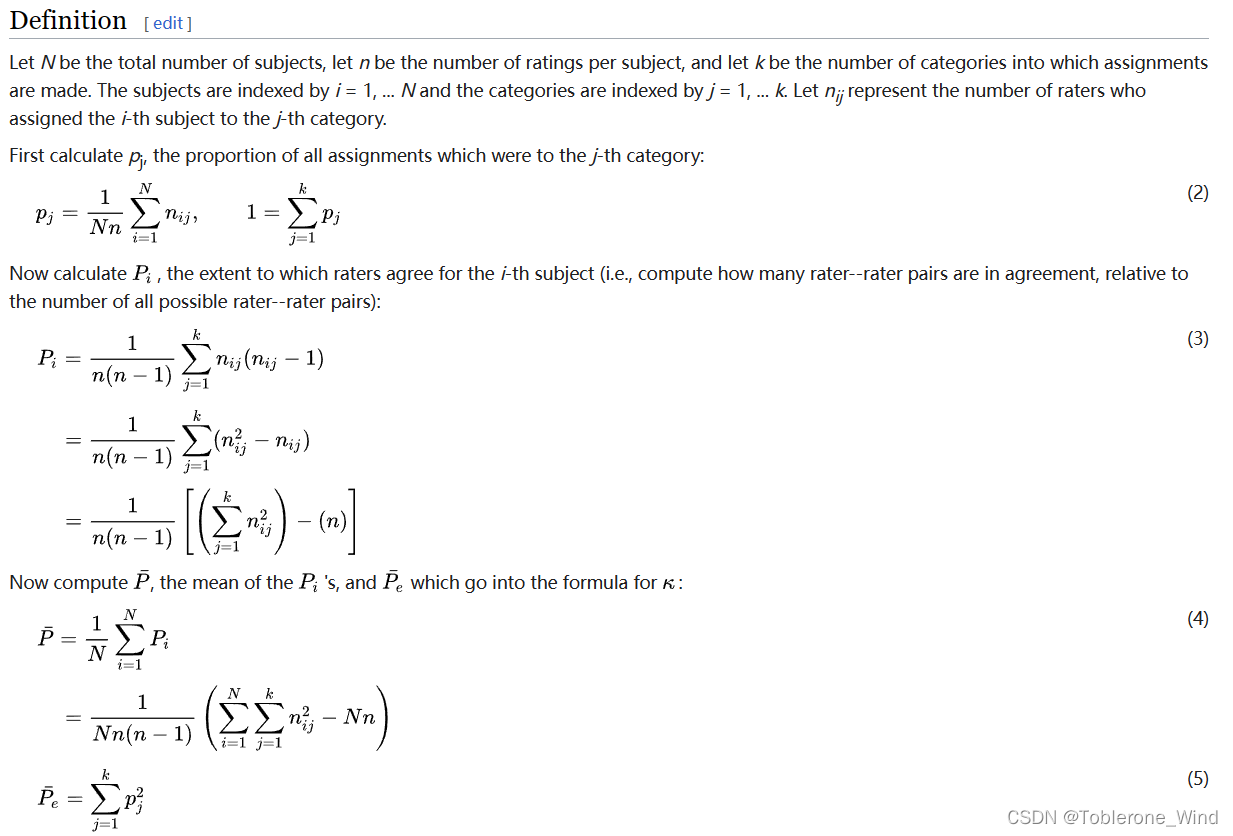

这里我提供维基百科的公式截图，可以对照看一下

相关统计量的计算

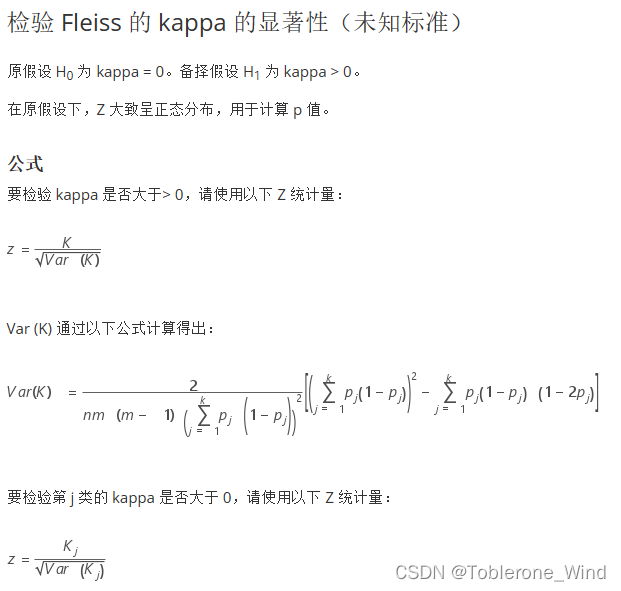

下图是Minitab提供的公式，链接我放在了博客开头

z值算出来后，p-value和95%置信区间就水到渠成了。

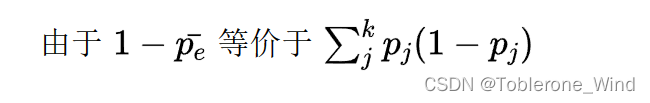

在代码中我使用tmp进行了替换，简化了 表达式

    tmp = (1 - P_e_bar) ** 2    var = 2 * (tmp - np.sum(p_j * (1 - p_j) * (1 - 2 * p_j))) / (tmp * subjects * n_rater * (n_rater - 1))        # standard error    SE = np.sqrt(var)      Z = K / SE     p_value = 2 * (1 - norm.cdf(np.abs(Z)))     ci_bound = 1.96 * SE / subjects    lower_ci_bound = K - ci_bound    upper_ci_bound = K + ci_bound

下面是完整代码

import numpy as npfrom scipy.stats import norm def fleiss_kappa(data: np.array):    """ Calculates Fleiss' kappa coefficient for inter-rater agreement. Args: data: numpy array of shape (subjects, categories), where each element represents the number of raters who assigned a particular category to a subject. Returns: kappa: Fleiss' kappa coefficient. """    subjects, categories = data.shape    n_rater = np.sum(data[0])     p_j = np.sum(data, axis=0) / (n_rater * subjects)    P_e_bar = np.sum(p_j ** 2)     P_i = (np.sum(data ** 2, axis=1) - n_rater) / (n_rater * (n_rater - 1))    P_bar = np.mean(P_i)     K = (P_bar - P_e_bar) / (1 - P_e_bar)     tmp = (1 - P_e_bar) ** 2    var = 2 * (tmp - np.sum(p_j * (1 - p_j) * (1 - 2 * p_j))) / (tmp * subjects * n_rater * (n_rater - 1))        # standard error    SE = np.sqrt(var)      Z = K / SE     p_value = 2 * (1 - norm.cdf(np.abs(Z)))     ci_bound = 1.96 * SE / subjects    lower_ci_bound = K - ci_bound    upper_ci_bound = K + ci_bound     print("Fleiss Kappa: {:.3f}".format(K))    print("Standard Error: {:.3f}".format(SE))    print("Z: {:.3f}".format(Z))    print("p-value: {:.3f}".format(p_value))    print("Lower 95% CI Bound: {:.3f}".format(lower_ci_bound))    print("Upper 95% CI Bound: {:.3f}".format(upper_ci_bound))    print()

这个函数只能处理格式形如维基百科示例的数据，对于其他格式的数据，需要相关的转换函数。

这里提供了两个转换函数，和对应的测试数据

def transform(*raters):    """ Transforms the ratings of multiple raters into the required data format for Fleiss' Kappa calculation. Args: *raters: Multiple raters' ratings. Each rater's ratings should be a list or array of annotations. Returns: data: numpy array of shape (subjects, categories), where each element represents the number of raters who assigned a particular category to a subject. """    assert all(len(rater) == len(raters[0]) for rater in raters), "Lengths of raters are not consistent."        subjects = len(raters[0])    categories = max(max(rater) for rater in raters) + 1    data = np.zeros((subjects, categories))     for i in range(subjects):        for rater in raters:            data[i, rater[i]] += 1        return data def tranform2(weighted):    """ Transforms weighted data into the required data format for Fleiss' Kappa calculation. Args: weighted: List of weighted ratings. Each row represents [rater_0_category, rater_1_category, ..., rater_n_category, weight]. Returns: data: numpy array of shape (subjects, categories), where each element represents the number of raters who assigned a particular category to a subject. """    n_rater = len(weighted[0]) - 1    raters = [[] for _ in range(n_rater)]    for i in range(len(weighted)):        for j in range(len(raters)):            raters[j] = raters[j] + [weighted[i][j] for _ in range(weighted[i][n_rater])]        data = transform(*raters)        return data def test():    # Example data provided by wikipedia https://en.wikipedia.org/wiki/Fleiss_kappa    data = np.array([        [0, 0, 0, 0, 14],        [0, 2, 6, 4, 2],        [0, 0, 3, 5, 6],        [0, 3, 9, 2, 0],        [2, 2, 8, 1, 1],        [7, 7, 0, 0, 0],        [3, 2, 6, 3, 0],        [2, 5, 3, 2, 2],        [6, 5, 2, 1, 0],        [0, 2, 2, 3, 7]    ])     fleiss_kappa(data)     # need transform    rater1 = [1, 2, 2, 1, 2, 2, 1, 1, 3, 1, 2, 2]    rater2 = [1, 2, 1, 2, 1, 2, 3, 2, 3, 2, 3, 1]    rater3 = [1, 2, 2, 1, 3, 3, 3, 2, 1, 2, 3, 1]     data = transform(rater1, rater2, rater3)    fleiss_kappa(data)     # The first row indicates that both rater 1 and 2 rated as category 0, this case occurs 8 times.    # need transform2    weighted_data = [        [0, 0, 8],        [0, 1, 2],        [0, 2, 0],        [1, 0, 0],        [1, 1, 17],        [1, 2, 3],        [2, 0, 0],        [2, 1, 5],        [2, 2, 15]    ]    data = tranform2(weighted_data)    fleiss_kappa(data) test()
