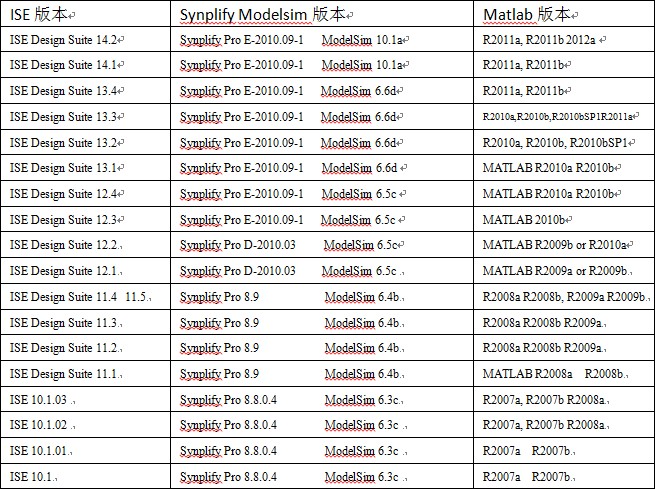

DSP System Generator与MATLAB、Synplify、ModelSim版本匹配问题

阅读数 11

GSM版主的整理：

System Generator for DSP 13.1
Operating System Support:
Windows 7
Windows XP
Windows Vista
Red Hat Linux 4u7
Red Hat Linux 5u2
SUSE Linux 10.1
* Support for 32-bit and 64-bit on all OS
Required:
ISE Design Suite 13.1 Logic Edition
MATLAB R2010a or R2010b from the MathWorks (requires Simulink Fixed-Point Toolbox for bus-widths greater than 53 bits)
Optional:
ISE Design Suite 13.1 - Embedded / System Editions
Beta support is provided for MATLAB 2011a
Synopsys Synplify Pro E-2010.09-1
Mentor Graphics ModelSim 6.6d

System Generator for DSP 12.4
Operating System Support:
Windows XP
Windows Vista
Red Hat Linux 4u7
Red Hat Linux 5u2
SUSE Linux 10.1
* Support for 32-bit and 64-bit on all OS
Required:
ISE Design Suite 12.4 Logic Edition
MATLAB R2010a or R2010b from the MathWorks (requires Simulink Fixed-Point Toolbox for bus-widths greater than 53 bits)
Optional:
ISE Design Suite 12.4 - Embedded / System Editions
Synopsys Synplify Pro E-2010.09-1
Mentor Graphics ModelSim 6.5c

System Generator for DSP 12.3
Operating System Support:
Windows XP

Windows Vista

Red Hat Linux 4u7

Red Hat Linux 5u2

SUSE Linux 10.1

* Support for 32- bit and 64-bit on all OS

Required:
ISE Design Suite 12.3 Logic Edition
MATLAB R2009b or R2010a from the MathWorks (requires Simulink Fixed-Point Toolbox for bus-widths greater than 53 bits)
Beta support for MATLAB 2010b
Optional:
ISE Design Suite 12.3 - Embedded / System Editions
Synopsys Synplify Pro E-2010.09-1

Mentor Graphics ModelSim 6.5c

System Generator for DSP 12.2
Operating System Support:

Windows XP

Windows Vista

Red Hat Linux 4u7

Red Hat Linux 5u2

SUSE Linux 10.1

* Support for 32 bit and 64 bit on all OS

Required:
ISE Design Suite 12.2 Logic Edition
MATLAB R2009b or R2010a from the MathWorks (requires Simulink Fixed-Point Toolbox for bus-widths greater than 53 bits)

Optional:
ISE Design Suite 12.2 - Embedded / System Editions
Synopsys Synplify Pro D-2010.03

Mentor Graphics ModelSim 6.5c

System Generator for DSP 12.1
Operating System Support:

Windows XP

Windows Vista

Red Hat Linux 4u7

Red Hat Linux 5u2

SUSE Linux 10.1

* Support for 32-bit and 64-bit on all OS

Required:
ISE Design Suite 12.1 Logic Edition
MATLAB R2009a or R2009b from the MathWorks

Optional:
ISE Design Suite 12.1 - Embedded / System Editions
Synopsys Synplify Pro D-2010.03

Mentor Graphics ModelSim 6.5c

System Generator for DSP and AccelDSP 11.4/11.5
Operating System Support:

System Generator and AccelDSP

Windows XP

System Generator only:

Windows Vista

Red Hat Linux 4u7

Red Hat Linux 5u2

SUSE Linux 10.1

Required:

ISE Design Suite 11.4 Logic Edition

MATLAB R2008a R2008b, R2009a or R2009b from The MathWorks

Optional:

ISE Design Suite 11.4 - Embedded / System Editions

Synopsys Synplify Pro 8.9

Mentor Graphics ModelSim 6.4b

System Generator for DSP and AccelDSP 11.3
Operating System Support:

System Generator and AccelDSP

Windows XP

System Generator only:

Windows Vista

Red Hat Linux 4u7

Red Hat Linux 5u2

SUSE Linux 10

Required:

ISE Design Suite 11.3 Logic Edition

MATLAB R2008a R2008b, or R2009a from the MathWorks

Optional:

ISE Design Suite 11.3 - Embedded / System Editions

Synopsys Synplify Pro 8.9

Mentor Graphics ModelSim 6.4b

System Generator for DSP and AccelDSP 11.2
Operating System Support:

Windows XP (32 bit only) - Both System Generator and AccelDSP

Red Hat Linux 4u7 (32 and 64 bit) - System Generator only

Required:

ISE Design Suite 11.2 Logic Edition

MATLAB R2008a R2008b, or R2009a from the MathWorks

Optional:

ISE Design Suite 11.2 - Embedded / System Editions

Synopsys Synplify Pro 8.9

Mentor Graphics ModelSim 6.4b

System Generator for DSP and AccelDSP 11.1
Operating System Support:

Windows XP (32 bit only) - Both System Generator and AccelDSP

Red Hat Linux 4u7 (32 and 64 bit) - System Generator only

Required:

ISE Design Suite 11.1 Logic Edition

MATLAB R2008a or R2008b from the MathWorks

Optional:

ISE Design Suite 11.1 - Embedded / System Editions

Synopsys Synplify Pro 8.9

Mentor Graphics ModelSim 6.4b

System Generator for DSP and AccelDSP 10.1.03
Required:

Windows XP (32 bit only)

ISE 10.1.03

ISE 10.1 IP Update 3

MATLAB R2007a, R2007b or R2008a from the MathWorks

Optional:

EDK 10.1.03

ChipScope 10.1.03

Synplicity Synplify Pro 8.8.0.4

Model Technology ModelSim 6.3c

System Generator for DSP and AccelDSP 10.1.02
Required:

Windows XP (32 bit only)

ISE 10.1.02

ISE 10.1 IP Update 2

MATLAB R2007a, R2007b or R2008a from the MathWorks

Optional:

EDK 10.1.02

ChipScope 10.1.02

Synplicity Synplify Pro 8.8.0.4

Model Technology ModelSim 6.3c

System Generator for DSP and AccelDSP 10.1.01
Required:

Windows XP (32 bit only)

ISE 10.1.01

ISE 10.1 IP Update 1

MATLAB R2007a or R2007b from the MathWorks

Optional:

EDK 10.1.01

ChipScope 10.1.01

Synplicity Synplify Pro 8.8.0.4

Model Technology ModelSim 6.3c

System Generator for DSP and AccelDSP 10.1.00.1134
Required:

Windows XP (32 bit only)

ISE 10.1

ISE 10.1 IP Update 0

MATLAB R2007a or R2007b from MathWorks

Optional:

EDK 10.1

ChipScope 10.1

Synplicity Synplify Pro 8.8.0.4

Model Technology ModelSim 6.3c

System Generator for DSP 9.2.01.1028

Required:

Windows XP

ISE 9.2i Service Pack 3 or later

ISE 9.2i IP Update 2 or later

MATLAB R2006b or R2007a from MathWorks

Optional:

AccelDSP 9.2i

ISE 9.2i Service Pack 3 Virtex-5 LX220T/SXT Installer

EDK 9.2i

ChipScope 9.2i

Synplicity Synplify Pro 8.8.0.4

Model Technology ModelSim 6.1f

System Generator for DSP 9.2.00.967
Required:

Windows XP

ISE 9.2i Service Pack 2 or later

ISE 9.2i IP Update 1 or later

MATLAB R2006b or R2007a from MathWorks

Optional:

ISE 9.2i Service Pack 2 Virtex-5 LX220T/SXT Installer

ChipScope 9.2i

Synplicity Synplify Pro 8.8.0.4

Model Technology ModelSim 6.1f

System Generator for DSP 9.1.01
Required:

Windows XP

ISE 9.1i Service Pack 3 or later

ISE 9.1i IP Update 2 or later

MATLAB R2006a or R2006b from MathWorks; see (Xilinx Answer 23145) for the required MATLAB 2006a patch.

Optional:

ISE 9.1i Service Pack 3 Virtex-5 LX220T/SXT Installer

ChipScope 9.1i

EDK 9.1i

Synplicity Synplify Pro 8.6.2

Model Technology ModelSim 6.1f

System Generator for DSP 9.1
Required:

Windows XP (Windows XP 64 bit is not currently supported)

ISE 9.1i Service Pack 2 or later

ISE 9.1i IP Update 1 or later

MATLAB R2006a or R2006b from MathWorks; see (Xilinx Answer 23145) for the required MATLAB 2006a patch.

Optional:

ISE 9.1i Service Pack 2 Virtex-5 LX220T/SXT Installer

ChipScope 9.1i

EDK 9.1i

Synplicity Synplify Pro 8.6.2

Model Technology ModelSim 6.1f

System Generator for DSP 8.2.x
PC Only ISE 8.2i Service Pack 3 or later

ISE 8.2i IP Update 2

ChipScope 8.2i

EDK 8.2i

R14 SP3 and R2006a from MathWorks; see (Xilinx Answer 23145) for the required MATLAB 2006a patch.

Synplicity Synplify Pro 8.4

Model Technology ModelSim 6.1b

Windows XP

System Generator for DSP 8.2
PC Only ISE 8.2i Service Pack 1 or later

ISE 8.2i IP Update 1

ChipScope 8.2i

EDK 8.2i

R14 SP3 and R2006a from MathWorks; see (Xilinx Answer 23145) for the required MATLAB 2006a patch.

Synplicity Synplify Pro 8.4

Model Technology ModelSim 6.1b

Windows XP

System Generator for DSP 8.1.01
PC Only ISE 8.1i Service Pack 2 or later

ISE 8.1i IP Update 1

ChipScope 8.1i

EDK 8.1i

R14 SP1, R14 SP2, R14 SP3, and R2006a from MathWorks; see (Xilinx Answer 23145) for the required MATLAB 2006a patch.

Synplicity Synplify Pro 8.4

Model Technology ModelSim 6.1b

Windows XP

System Generator for DSP 8.1
PC Only ISE 8.1i Service Pack 1 or later

PC Only ISE 7.1i Service Pack 4 or later

ChipScope 8.1i

ChipScope 7.1i

EDK 7.1i

R14 SP1, R14 SP2 and R14 SP3 from MathWorks

Windows XP

System Generator for DSP 7.1
PC Only ISE 7.1i Service Pack 1 or later

ChipScope 7.1i

EDK 7.1i SP2

R14, R14 SP1, R14 SP2 from MathWorks

Windows XP

System Generator for DSP 6.1
PC Only ISE 6.3i Service Pack 1 or later

IP Update 4

ChipScope 6.3i

EDK 6.3i

R13 SP1 or R14 from MathWorks

For information on installing System Generator for DSP 6.1.1 with ISE 6.2i, see (Xilinx Answer 18964).

Windows XP

System Generator for DSP 3.1
PC Only ISE 5.2i Service Pack 1 or later

R13 from MathWorks

Synplify 7.2

Leonardo Spectrum 2002e

Windows 2000 and Windows XP

System Generator for DSP 2.3
PC Only ISE 5.1i

IP Update 1

R12 SP1 or R13 from MathWorks

Synplify 7.2

Leonardo Spectrum 2002d

Windows NT 4.0 Service Pack 6, Windows 2000, and Windows XP

System Generator for DSP 2.2
PC Only ISE 4.2i

IP Update 2

R12 SP1 from MathWorks

Synplify 7.1

Leonardo Spectrum 2002a

Windows NT 4.0 Service Pack 6 or greater, Windows 2000, and Windows ME

System Generator for DSP 2.1
PC Only ISE 4.1i Service Pack 1 or later

IP Update 1

R12 or R12 SP1 from MathWorks

Windows NT 4.0 Service Pack 6 or greater, Windows 2000, and Windows 98

System Generator for DSP 1.1
PC Only ISE 3.xi Service Pack 7 or later

IP Update 3

R11 SP1 or R12 from MathWorks

Windows NT 4.0 and Windows 98

System Generator for DSP 1.0
PC Only ISE 3.1i Service Pack 1 or later

IP Update 1 (d_ip1)

R11 SP1 from MathWorks

Windows NT 4.0 and Windows 98
