os.popen(args) 7
if not os.path.exists( 7
k1 = 53.6 8
k2 = 0.2093

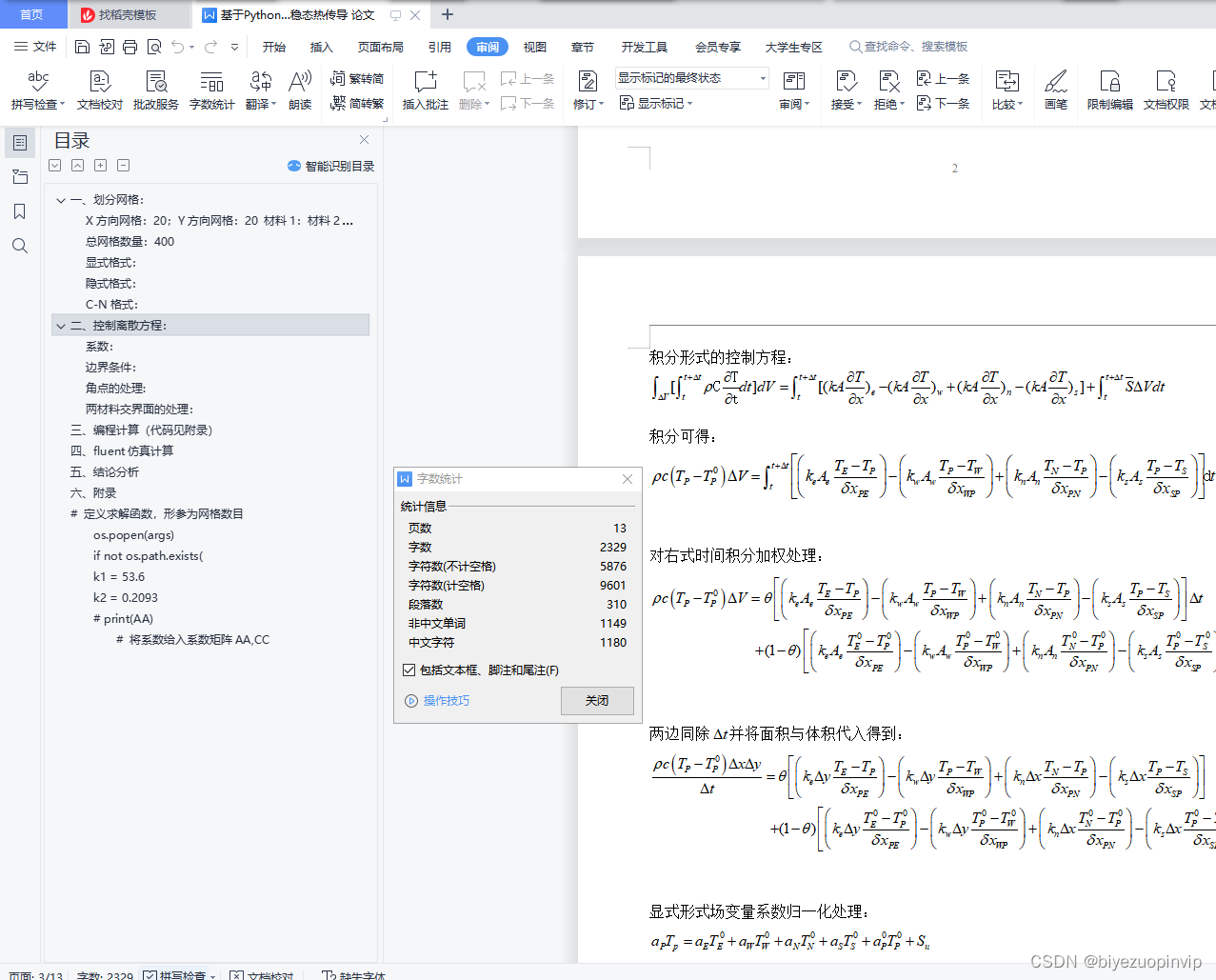

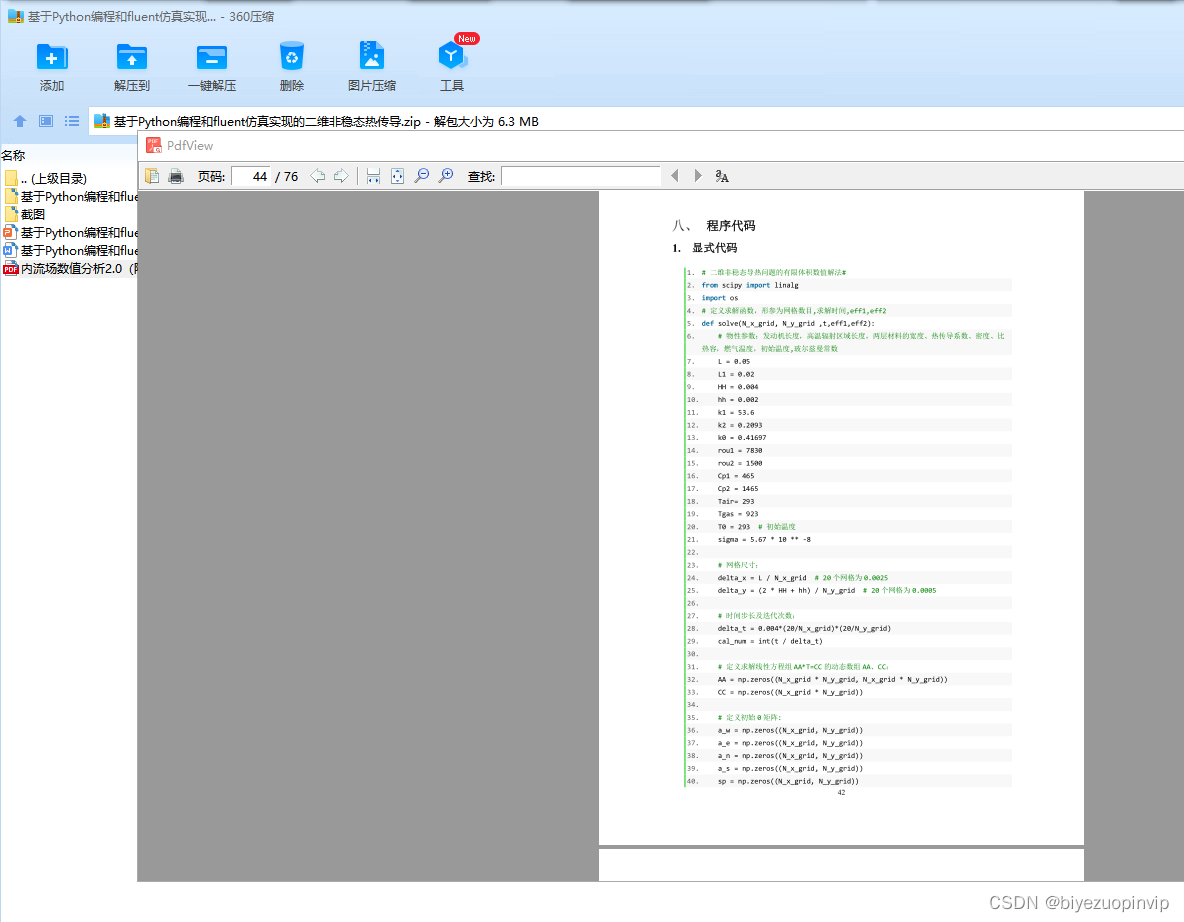

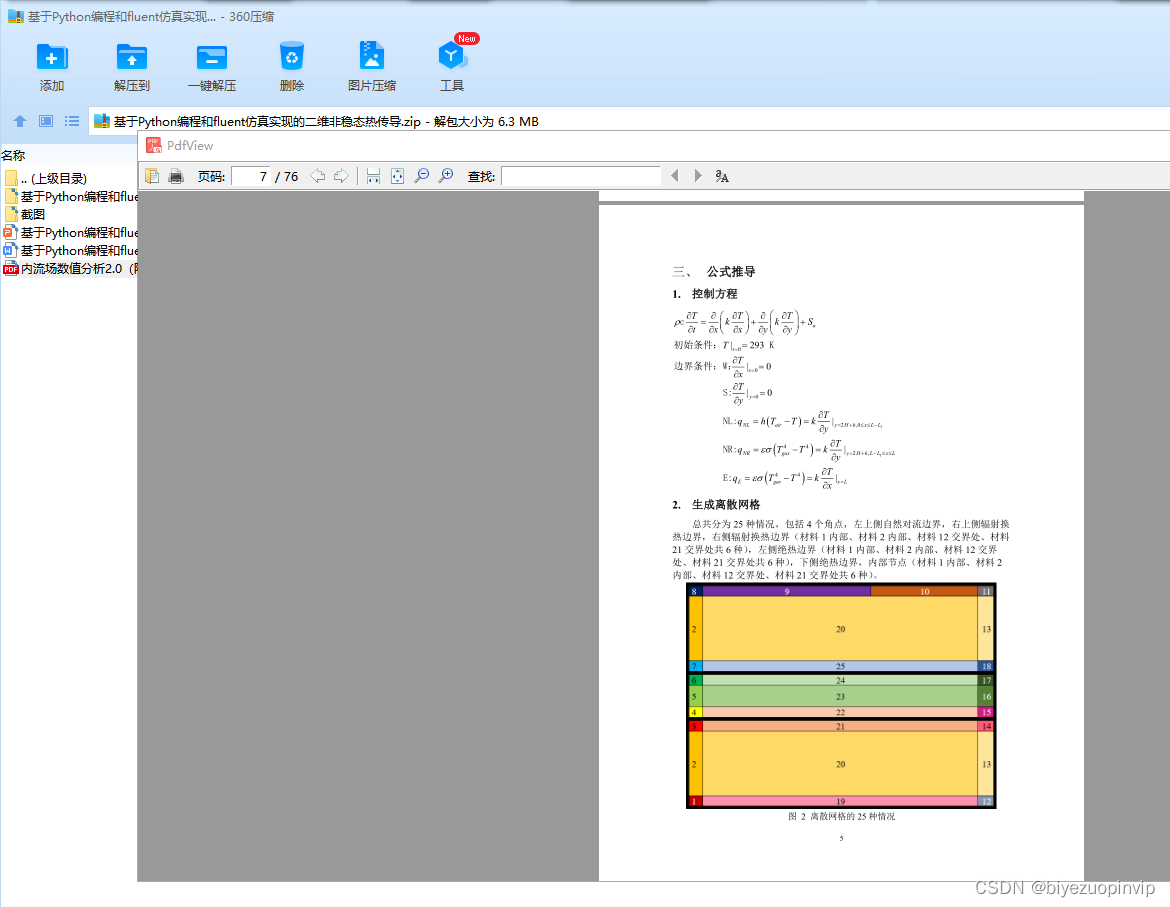

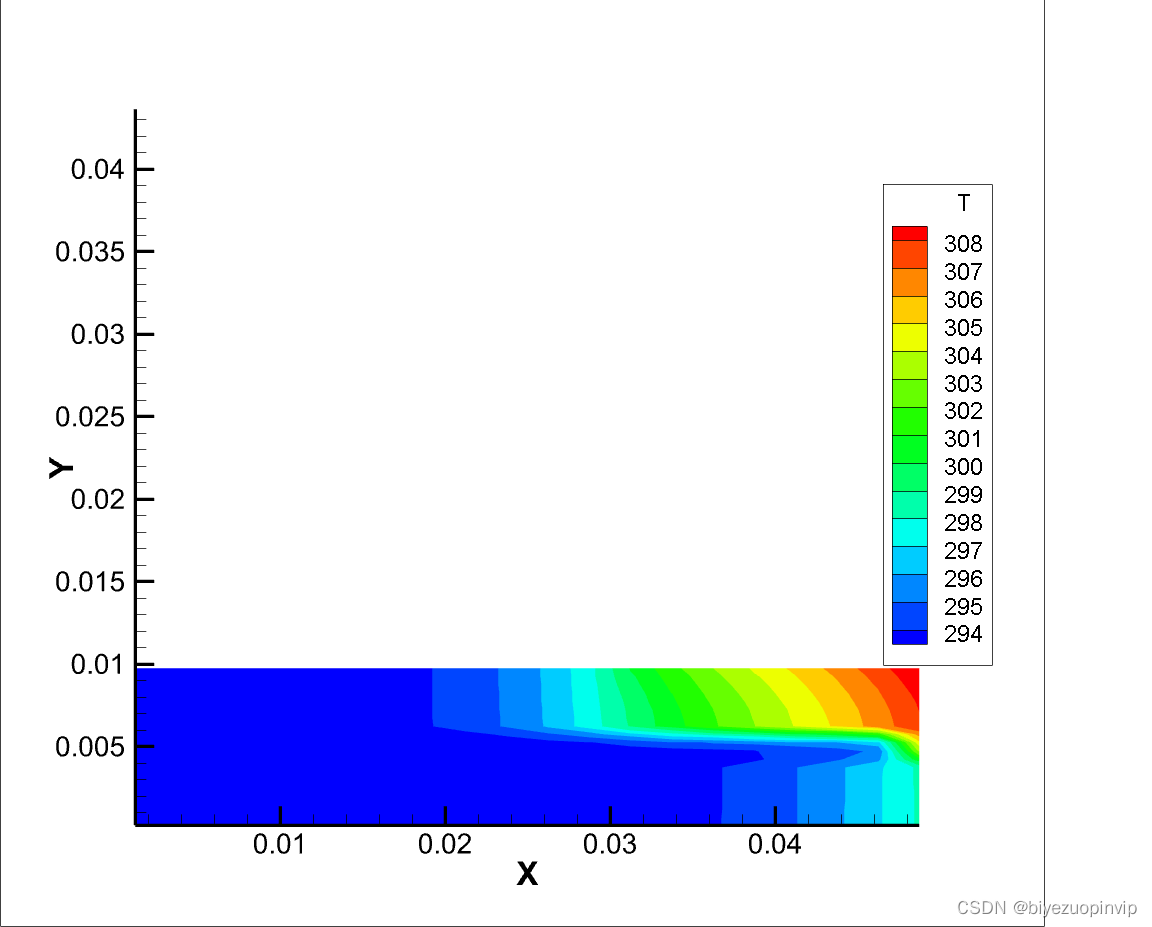

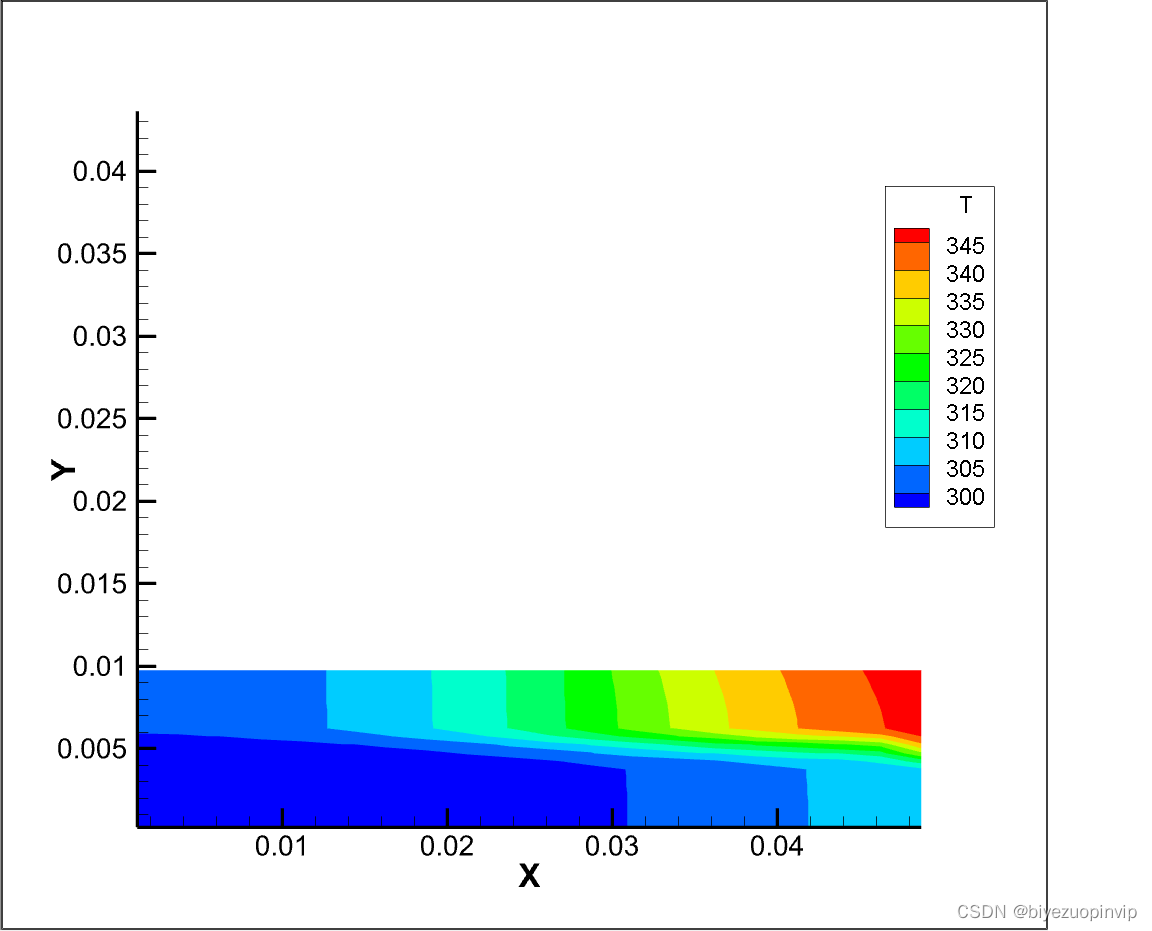

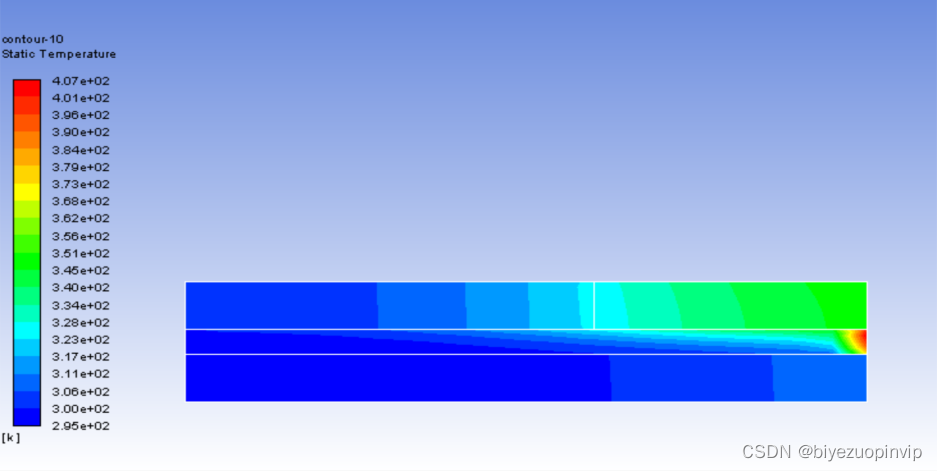

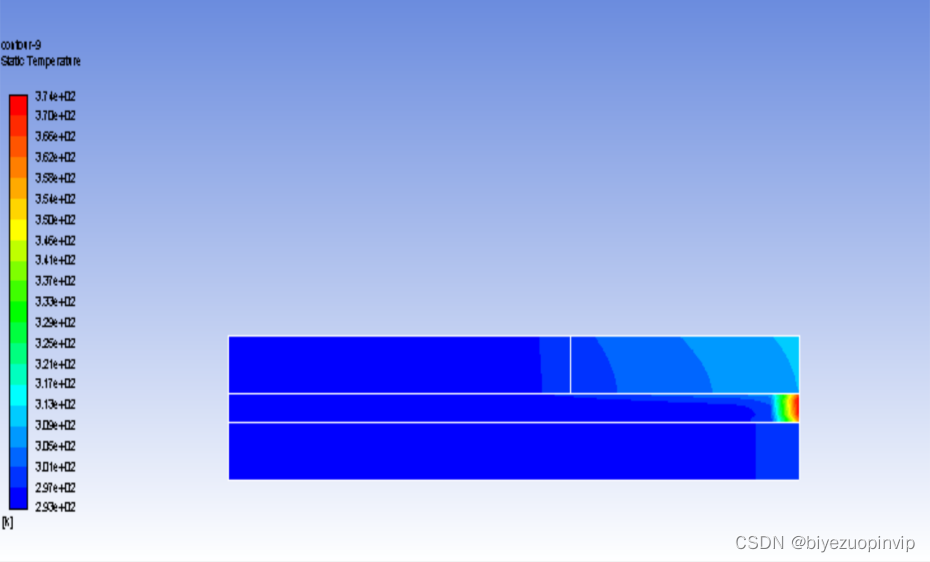

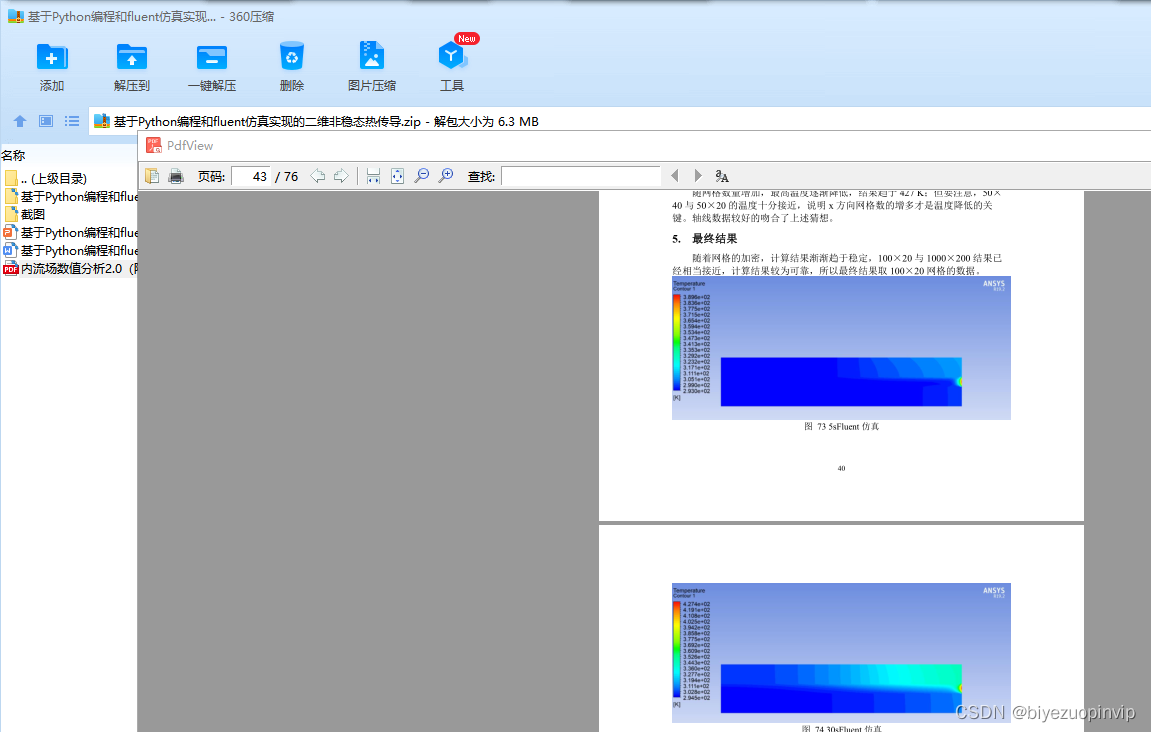

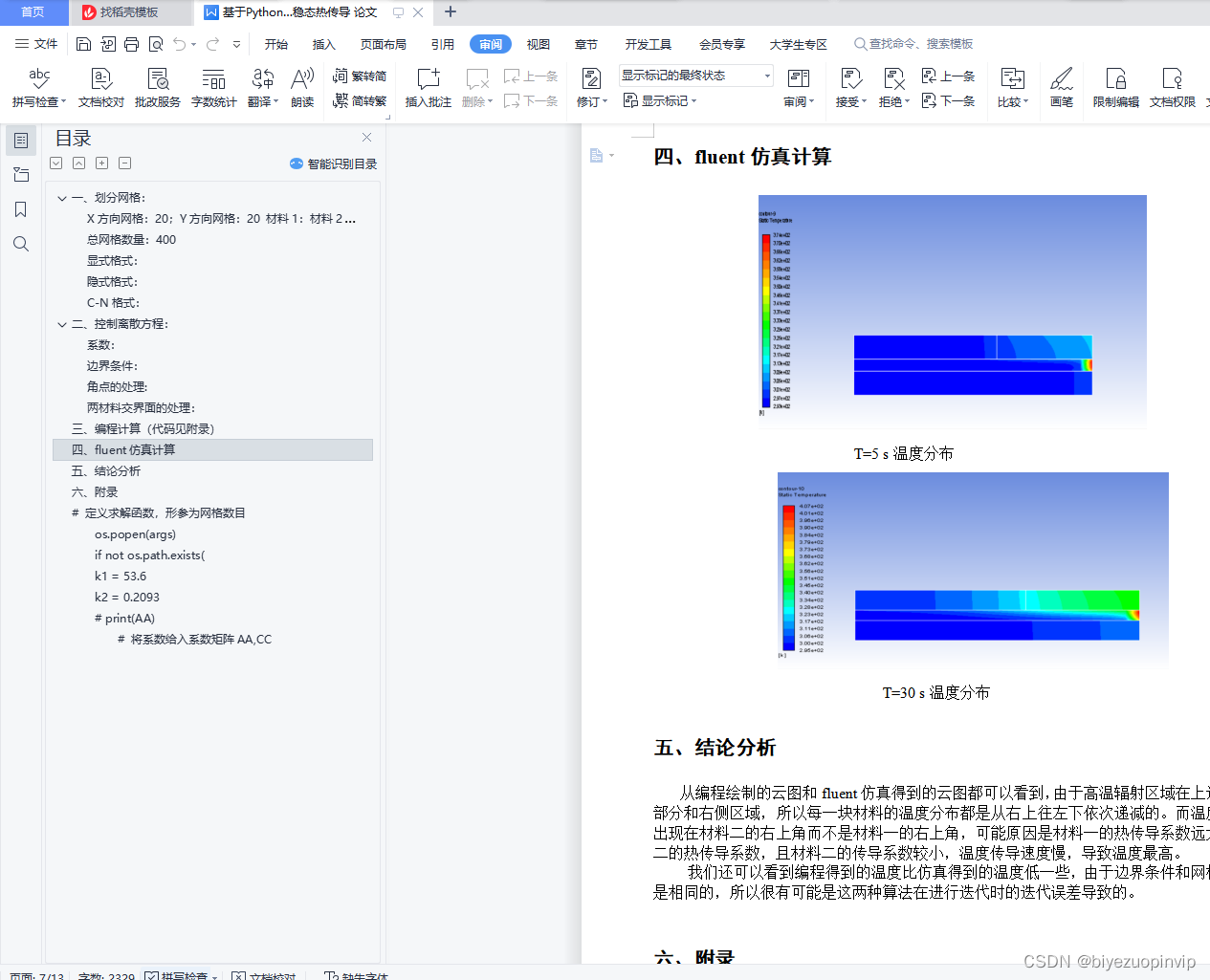

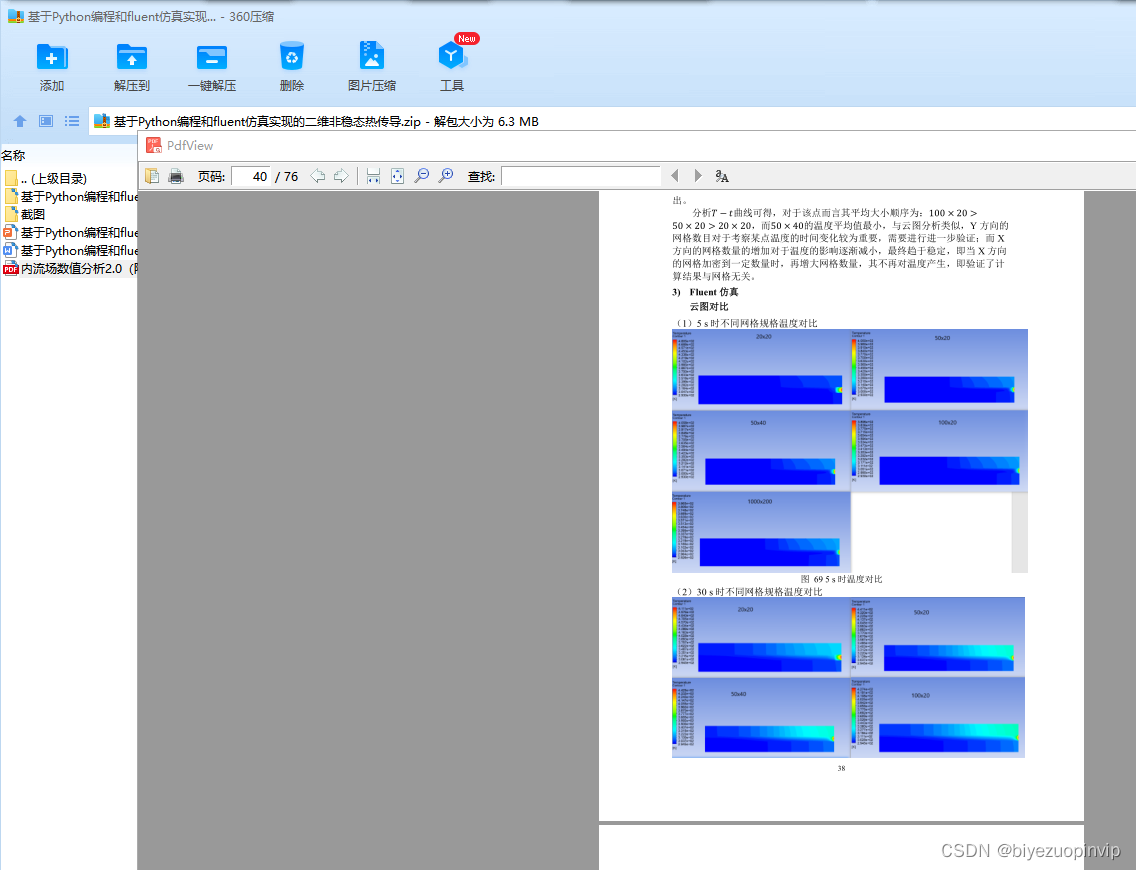

从编程绘制的云图和fluent仿真得到的云图都可以看到，由于高温辐射区域在上边的右半部分和右侧区域，所以每一块材料的温度分布都是从右上往左下依次递减的。而温度最高点出现在材料二的右上角而不是材料一的右上角，可能原因是材料一的热传导系数远大于材料二的热传导系数，且材料二的传导系数较小，温度传导速度慢，导致温度最高。
我们还可以看到编程得到的温度比仿真得到的温度低一些，由于 边界 条件和网格划分均是相同的，所以很有可能是这两种算法在进行迭代时的迭代误差导致的。
#!usr/bin/env python
# -*- coding:utf-8 _*-
"""
@author:tianchang
@file: 膏体14-10.py
@time: 2019/11/16 14:10-20s
"""
# 添加中断后继续的代码部分
# 二维非稳态导热问题的有限体积数值解法#
from mpl_toolkits.mplot3d import Axes3D
from scipy import linalg
import matplotlib.pyplot as plt
import numpy as np
# 定义求解函数，形参为网格数目
import os
def 打开tecplot(N_x_grid, N_y_grid, delta_t, eff_1, h, eff_2):
args = 'cd "内流场大作业代码上边界对流eff_1={3} eff_2={5} h={4}"&&"T-2d-Nx={0}-Ny={1}-t={2}.plt"'.format(
N_x_grid, N_y_grid, (int(5 / delta_t)) * 0.004, eff_1, h, eff_2)
os.popen(args)
args = 'cd "内流场大作业代码上边界对流eff_1={3} eff_2={5} h={4}"&&"T-2d-Nx={0}-Ny={1}-t={2}.plt"'.format(
N_x_grid, N_y_grid, (int(30 / delta_t)) * 0.004, eff_1, h, eff_2)
os.popen(args)
def 数据写入文件(
eff_1,
eff_2, h,
N_x_grid,
N_y_grid, k, X,
Y,
T,
a_p,
a_n,
a_s,
a_w,
a_e,
sp,
su):
'''# 判断是否存在文件夹，不存在则建立'''
if not os.path.exists(
r'./内流场大作业代码上边界对流eff_1={0} eff_2={2} h={1}'.format(eff_1, h, eff_2)):
os.mkdir(
r'./内流场大作业代码上边界对流eff_1={0} eff_2={2} h={1}'.format(eff_1, h, eff_2))
with open(
r'./内流场大作业代码上边界对流eff_1={3} eff_2={5} h={4}/T-2d-Nx={0}-Ny={1}-t={2}.plt'.format(
N_x_grid, N_y_grid, (k + 1) * 0.004, eff_1, h, eff_2), 'w', encoding='UTF-8') as fp1:
fp1.write("VARIABLES = X, Y, T, ap,an,as,aw,ae,sp,su\n") # 按计算节点数输出结果
fp1.write("ZONE I=%d,J=%d, F=POINT,t=\"%.3f\"\n" %
(N_x_grid, N_y_grid, (k + 1) * 0.004))
for j in range(N_y_grid - 1, -1, -1):
for i in range(0, N_x_grid):
fp1.write(
"{:.5f} {:.5f} {:.3f} {:.3f} {:.3f} {:.3f} {:.3f} {:.3f} {:.3f} {:.3f}\n".format(
X[i][j],
Y[i][j],
T[i][j],
a_p[i][j],
a_n[i][j],
a_s[i][j],
a_w[i][j],
a_e[i][j],
sp[i][j],
su[i][j]))
def solve(N_x_grid, N_y_grid, t, eff_1, eff_2, h):
'''N_x_grid, N_y_grid, t, eff, h'''

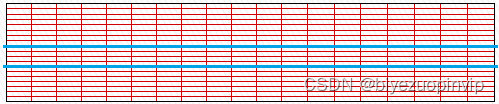

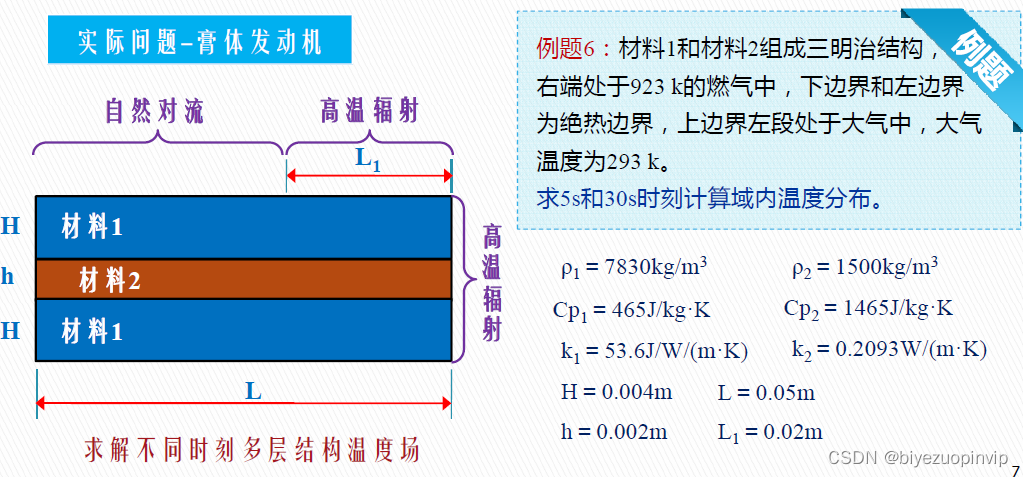

# 物性参数定义：发动机长度，高温辐射区域长度，两层材料的宽度、热传导系数、密度、比热容，燃气温度，发射率，对流换热系数
L = 0.05
L1 = 0.02
HH = 0.004
hh = 0.002
k1 = 53.6
k2 = 0.2093
k0 = 0.41697
rou1 = 7830
rou2 = 1500
Cp1 = 465
Cp2 = 1465
Tair = 293
Tgas = 923
T0 = 293 # 初始温度
# eff = 0.8 # 假定发射率
# h = 10 # 假定导热系数
sigma = 5.67 * 10 ** -8
# 网格尺寸定义：
delta_x = L / N_x_grid # 0.0025
delta_y = (2 * HH + hh) / N_y_grid # 0.0005
# 时间步长及迭代次数：
delta_t = 0.004
cal_num = int(t / delta_t)
# 定义求解线性方程组的动态数组：
AA = np.zeros((N_x_grid * N_y_grid, N_x_grid * N_y_grid))
# print(AA)
CC = np.zeros((N_x_grid * N_y_grid))
# 定义初始0矩阵:
a_w = np.zeros((N_x_grid, N_y_grid))
a_e = np.zeros((N_x_grid, N_y_grid))
a_n = np.zeros((N_x_grid, N_y_grid))
a_s = np.zeros((N_x_grid, N_y_grid))
sp = np.zeros((N_x_grid, N_y_grid))
su = np.zeros((N_x_grid, N_y_grid))
a_p = np.zeros((N_x_grid, N_y_grid))
a_p0 = np.zeros((N_x_grid, N_y_grid))
T = np.zeros((N_x_grid, N_y_grid)) X = np.zeros((N_x_grid, N_y_grid))
Y = np.zeros((N_x_grid, N_y_grid))
# 离散方程系数计算
for k in range(0, cal_num):
if k == 0:
for i in range(0, N_x_grid):
for j in range(0, N_y_grid):
T[i][j] = T0
for i in range(0, N_x_grid):
for j in range(0, N_y_grid):
# 结点位置确定
Y[i][j] = delta_y * (j + 0.5)
X[i][j] = delta_x * (i + 0.5)
# 给定初始温度场
# 判断结点在哪一区域，给出a_e,a_w,a_s,a_n,a_p相应系数
if j <= 0.4 * N_y_grid - 1 or j >= 0.6 * N_y_grid: # 0——7，12——19
a_w[i][j] = k1 / delta_x * delta_y # 10.72
a_e[i][j] = k1 / delta_x * delta_y # 10.72
a_s[i][j] = k1 / delta_y * delta_x # 268
a_n[i][j] = k1 / delta_y * delta_x # 268
a_p[i][j] = rou1 * Cp1 * delta_x * delta_y / delta_t
else: # 8——11
a_w[i][j] = k2 / delta_x * delta_y
a_e[i][j] = k2 / delta_x * delta_y
a_s[i][j] = k2 / delta_y * delta_x
a_n[i][j] = k2 / delta_y * delta_x
a_p[i][j] = rou2 * Cp2 * delta_x * delta_y / delta_t
# 交界面处系数
if j == 0.6 * N_y_grid - 1 or j == 0.4 * N_y_grid - 1: # 7，11
a_n[i][j] = k0 / delta_y * delta_x
if j == 0.6 * N_y_grid or j == 0.4 * N_y_grid: # 8，12
a_s[i][j] = k0 / delta_y * delta_x
# 边界条件
if i == 0: # 左边界为绝热边界
a_w[i][j] = 0.0
su[i][j] = 0.0
sp[i][j] = 0.0
if i == N_x_grid - 1: # 右边界为辐射换热边界
if j <= 0.4 * N_y_grid - 1 or j >= 0.6 * N_y_grid: # 0——7，12——19
a_e[i][j] = 0.0
# 将边界结点的温度作为壁面温度
su[i][j] = eff_1 * sigma * \
(Tgas ** 4 - (T[i][j]) ** 4) * delta_y
sp[i][j] = 0.0
else:
a_e[i][j] = 0.0
# 将边界结点的温度作为壁面温度
su[i][j] = eff_2 * sigma * \
(Tgas ** 4 - (T[i][j]) ** 4) * delta_y
sp[i][j] = 0.0
if j == 0: # 下边界为绝热边界
a_s[i][j] = 0.0
su[i][j] = 0.0
sp[i][j] = 0.0
if j == N_y_grid - 1: # 上边界为混合边界
if i <= N_x_grid * 0.6 - 1: # 上边界左侧为对流换热
a_n[i][j] = 0.0
su[i][j] = h * (Tair - T[i][j]) * delta_x
sp[i][j] = 0
else: # 改动1： 上边界右侧为辐射换热加对流换热
a_n[i][j] = 0.0
su[i][j] = eff_1 * sigma * \
(Tgas ** 4 - (T[i][j]) ** 4) * delta_x + h * (Tair - T[i][j]) * delta_x
sp[i][j] = 0.0
# 四个角点系数替换
if i == 0 and j == 0: # 左下角点
su[i][j] = 0.0
if i == 0 and j == N_y_grid - 1: # 左上角点
su[i][j] = h * (Tair - T[i][j]) * delta_x
if i == N_x_grid - 1 and j == N_y_grid - 1: # 右上角点
su[i][j] = eff_1 * sigma * (Tgas ** 4 - (T[i][j]) ** 4) * delta_x + eff_1 * sigma * (
Tgas ** 4 - (T[i][j]) ** 4) * delta_y + h * (Tair - T[i][j]) * delta_x
if i == N_x_grid - 1 and j == 0: # 右下角点
su[i][j] = eff_1 * sigma * \
(Tgas ** 4 - (T[i][j]) ** 4) * delta_y
a_p0[i][j] = a_p[i][j] - \
(a_w[i][j] + a_e[i][j] + a_s[i][j] + a_n[i][j] - sp[i][j])
# 将系数给入系数矩阵AA,CC
for i in range(0, N_x_grid):
for j in range(0, N_y_grid):
AA[i * N_y_grid + j][i * N_y_grid + j] = a_p[i][j]
CC[i * N_y_grid + j] = su[i][j] + a_p0[i][j] * T[i][j]
if j != 0:
CC[i * N_y_grid + j] = CC[i * N_y_grid + j] + \
a_s[i][j] * T[i][j - 1]
if j != N_y_grid - 1:
CC[i * N_y_grid + j] = CC[i * N_y_grid + j] + \
a_n[i][j] * T[i][j + 1]
if i != 0:
CC[i * N_y_grid + j] = CC[i * N_y_grid + j] + \
a_w[i][j] * T[i - 1][j]
if i != N_x_grid - 1:
CC[i * N_y_grid + j] = CC[i * N_y_grid + j] + \
a_e[i][j] * T[i + 1][j]
result = linalg.solve(AA, CC) # 求解温度场
T_对流求和 = 0
T_对流求和_i = 0
for i in range(0, N_x_grid):
for j in range(0, N_y_grid):
T[i][j] = result[i * N_y_grid + j]
if j == N_y_grid - 1: # 上边界为混合边界
if i <= N_x_grid * 0.6 - 1: # 上边界左侧为对流换热
T_对流求和 += T[i][j]
T_对流求和_i += 1
#print (T_对流求和, T_对流求和_i)
delta_t_温差 = T_对流求和 / T_对流求和_i - 293
数据写入文件(eff_1, eff_2,h,N_x_grid,N_y_grid,k,X,Y,T,a_p,a_n,a_s,a_w,a_e,sp, su)
print('已完成:{:.2f}% t_温差:{:.3f}'.format(k / cal_num * 100, delta_t_温差))
打开tecplot(N_x_grid, N_y_grid, delta_t, eff_1, h, eff_2) # 最后调用
