我的CAD操作方式：基于CAD 2014和ObjectARX基础操作实现

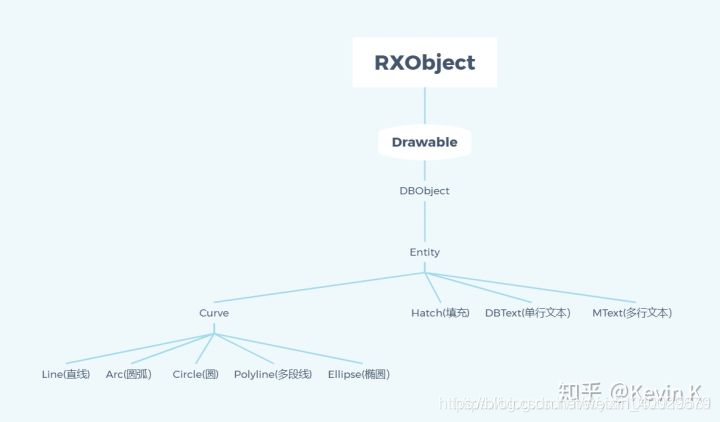

cad 操作方式以及解析：

   1)：新建一个 类  库，NetFramework 框架选择3.5,添加AutoCAD 2008的两个dll引用：acmgd.dll，acdbmgd.dll。（在安装目录下能找到）

2)：添加命名空间

Autodesk.AutoCAD.ApplicationServices; //CAD实体

Autodesk.AutoCAD.EditorInput;//命令栏

Autodesk.AutoCAD.Runtime;//运行时，如设置 指令

Autodesk.AutoCAD.DatabaseServices;//数据库服务

1. 获取当前文档，数据库，和命令栏
2. 启一个事务，获取模型空间的所有块表记录；
3. 遍历块表记录的所有对象，判定是否为单行文本，如果是则在命令栏输出文本内容。
4. 编译和运行

打开CAD，输入netload 加载编译的dll，输入指令：sss，即可看到运行效果

解析 单行文本替换：

using (Database blkDb = new Database(false, true))
                    {
                        //read drawing
                        blkDb.ReadDwgFile(ThisAppPath, System.IO.FileShare.Read, true, null);
                        blkDb.CloseInput(true);
                        #region 处理替换数据
                        using (Transaction Bst = blkDb.TransactionManager.StartTransaction())
                        {
                            BlockTable btY = (BlockTable)Bst.GetObject(blkDb.BlockTableId, OpenMode.ForRead);
                            BlockTableRecord btrY = (BlockTableRecord)Bst.GetObject(btY[BlockTableRecord.ModelSpace], OpenMode.ForWrite);
                            foreach (ObjectId btrId in btrY)///替换对应的数据
                            {
                                Entity baseEntity = (Entity)Bst.GetObject(btrId, OpenMode.ForWrite);///获取当前正在处理的
                                if (baseEntity.GetType() == typeof(DBText))
                                {
                                    DBText ThisText = (DBText)baseEntity;
                                    if (ThisText.TextString == "05-07-1")
                                    {
                                        ThisText.TextString = "这个是测试清除";
                                    }
                                    if (ThisText.TextString == "TIN-23046")
                                    {
                                        ThisText.TextString = "这是测试清除";
                                    }
                                }
                            }
                            Bst.Commit();
                        }
  }

拷贝数据到已经打开的文件里

[CommandMethod("InsertOut")]
        //插入外面的块文件
        public static void InsertOut()
        {
            Editor ed = Autodesk.AutoCAD.ApplicationServices.Application.DocumentManager.MdiActiveDocument.Editor;
            Document doc = Autodesk.AutoCAD.ApplicationServices.Application.DocumentManager.MdiActiveDocument;
            //PromptPointResult ppr = ed.GetPoint("选择插入点");
            //Point3d pt = ppr.Value;//获取到插入点
            Point3d pt;                   //utility.WriteToEditor(pt.ToString());
            DBOP dal = new DBOP();
            List<FileSet> listFiles = new List<FileSet>();
            listFiles = dal.Query().ToList();
            if (listFiles != null)
            {
                for (int i = 0; i < listFiles.Count; i++)
                {
                    pt = new Point3d(800 * i, 300, 300);//获取到插入点
                    string ThisAppPath = $"{Environment.CurrentDirectory}\\modelFile\\{listFiles[i].FileName}";
                    using (Database blkDb = new Database(false, true))
                    {
                        //read drawing
                        blkDb.ReadDwgFile(ThisAppPath, System.IO.FileShare.Read, true, null);
                        blkDb.CloseInput(true);
                        #region 处理替换数据
                        using (Transaction Bst = blkDb.TransactionManager.StartTransaction())
                        {
                            BlockTable btY = (BlockTable)Bst.GetObject(blkDb.BlockTableId, OpenMode.ForRead);
                            BlockTableRecord btrY = (BlockTableRecord)Bst.GetObject(btY[BlockTableRecord.ModelSpace], OpenMode.ForWrite);
                            foreach (ObjectId btrId in btrY)///替换对应的数据
                            {
                                Entity baseEntity = (Entity)Bst.GetObject(btrId, OpenMode.ForWrite);///获取当前正在处理的
                                if (baseEntity.GetType() == typeof(DBText))
                                {
                                    DBText ThisText = (DBText)baseEntity;
                                    if (ThisText.TextString == "05-07-1")
                                    {
                                        ThisText.TextString = "这个是测试清除";
                                    }
                                    if (ThisText.TextString == "TIN-23046")
                                    {
                                        ThisText.TextString = "这是测试清除";
                                    }
                                }
                            }
                            Bst.Commit();
                        }
                        #endregion
                        using (DocumentLock docLock = doc.LockDocument())//多文档要先这样，否则报至命错误
                        {
                            using (Transaction t = doc.TransactionManager.StartTransaction())
                            {
                                string name = $"a{i}";//aa是不与blockPath文件中的任何块重名的字符串
                                                      //insert it as a new block
                                ObjectId idBTR = doc.Database.Insert(name, blkDb, false);
                                //create a ref to the block
                                BlockTable bt = (BlockTable)t.GetObject(doc.Database.BlockTableId, OpenMode.ForRead);
                                BlockTableRecord btr = (BlockTableRecord)t.GetObject(bt[BlockTableRecord.ModelSpace], OpenMode.ForWrite);
                                using (BlockReference bref = new BlockReference(pt, idBTR)) //pt是一个Point3D坐标,这里是插入进当前dwg文件中
                                {
                                    btr.AppendEntity(bref);
                                    t.AddNewlyCreatedDBObject(bref, true);
                                }

                                t.Commit();
                            }
                        }
                    }
                }
            }

        }

创建dll

   l链接文件：

 command "netload" "https://www.gofarlic.com\test\CAD\CAD控件Test\CadCommand\CadCommand\CadCommand\bin\Debug\CadCommand.dll"
