ACT_ElectronicTransformer_v1.1：ANSYS变压器仿真扩展插件使用教程

这个插件在ansys插件市场就可以下载

ACT: Electronic Transformer R19.1(ETK)

   Install the Extension

   • The extension can be downloaded from ANSYS ACT Application Store
Ansys Store Catalog

   To install extension:

   1) Open Electronics Desktop

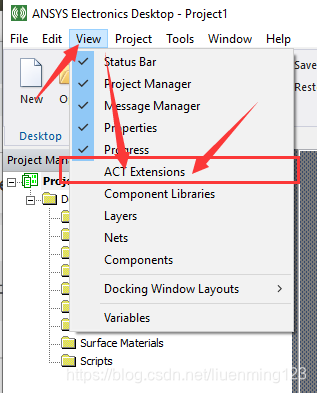

   2) Ensure the ACTs are visible by

   selecting from the menu:

   View -> ACT Extensions

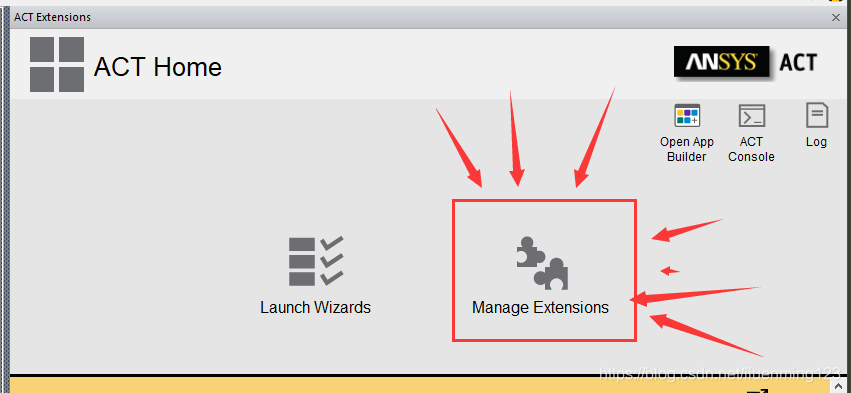

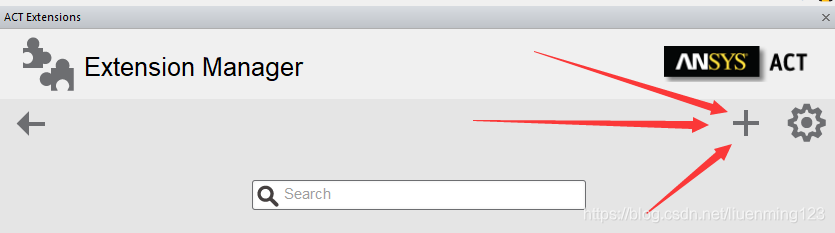

   3) Click on Extension Manager,

   click on the “+” sign to install

   extensions, select the wbex file

   downloaded from the ANSYS ACT

   Application Store.

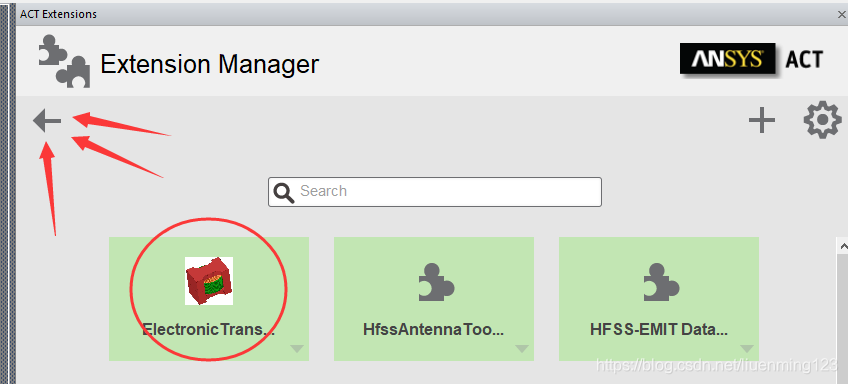

   After installing the extension, you

   will see the extension.

选择压缩包里的wbex文件

   • Import extension appears in the

   Extension Manager with a white

   background, which means it has

   been installed but not yet loaded.

   To load the extension, you can

   just simply click on it. If the

   extension is loaded successfully,

   the icon’s background should be

   green.

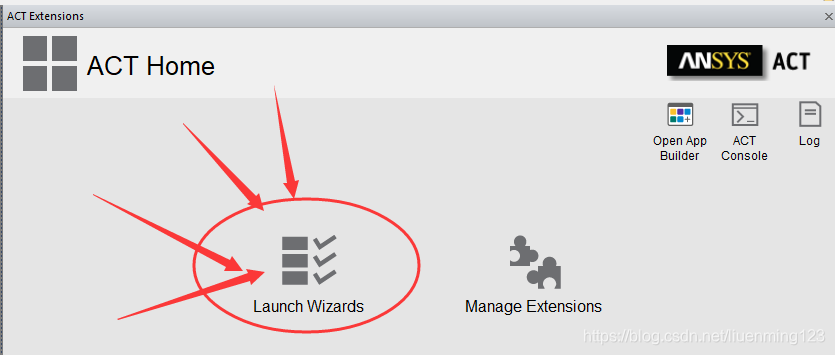

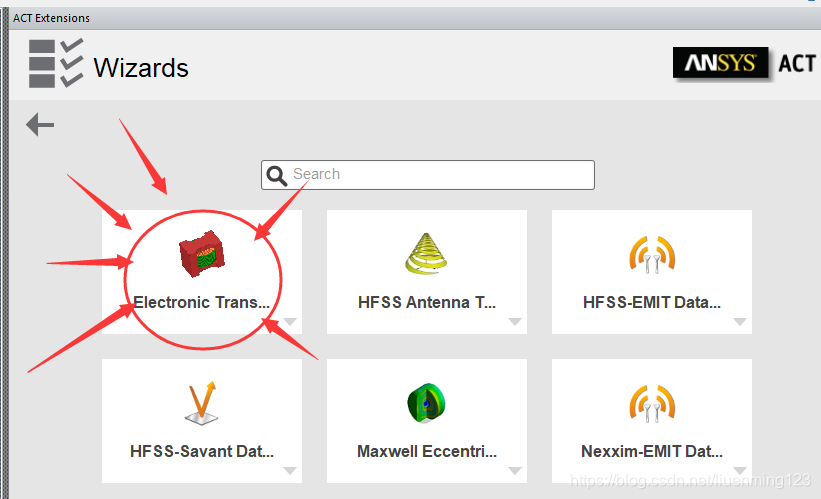

跟随向导设置即可

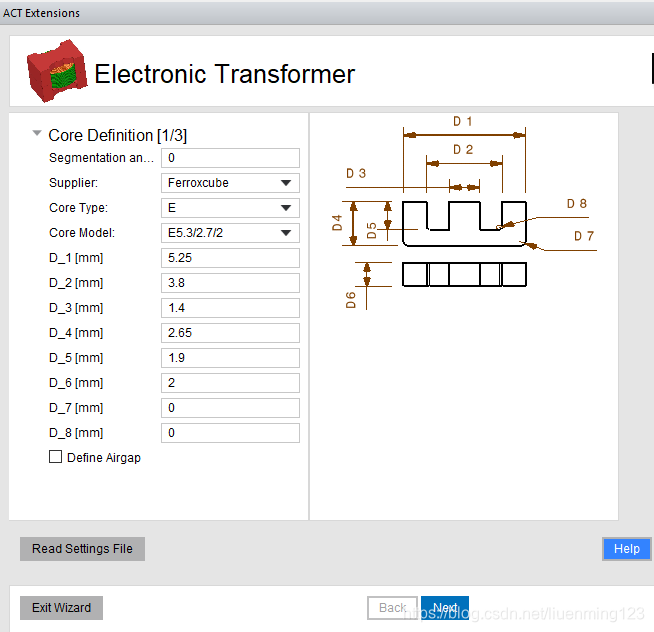

设置磁芯数据，或者导入数据

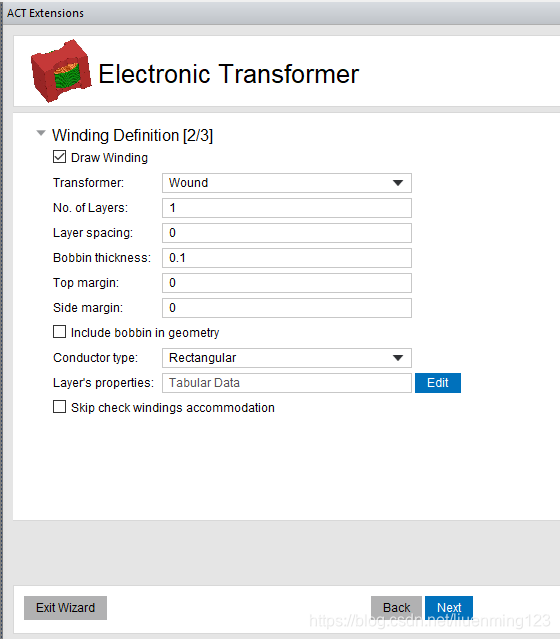

线圈设置

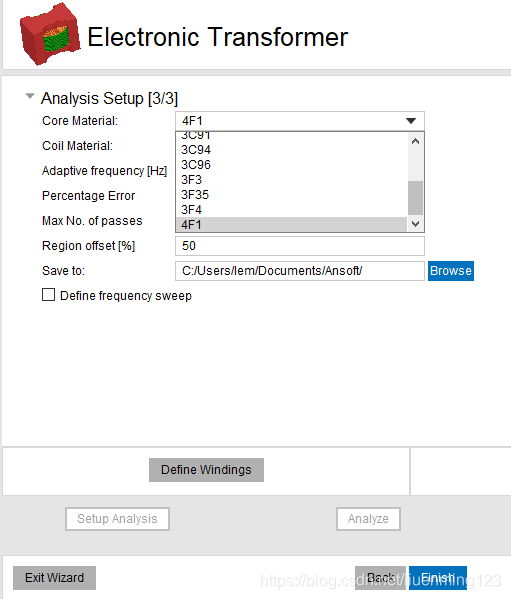

仿真参数设置

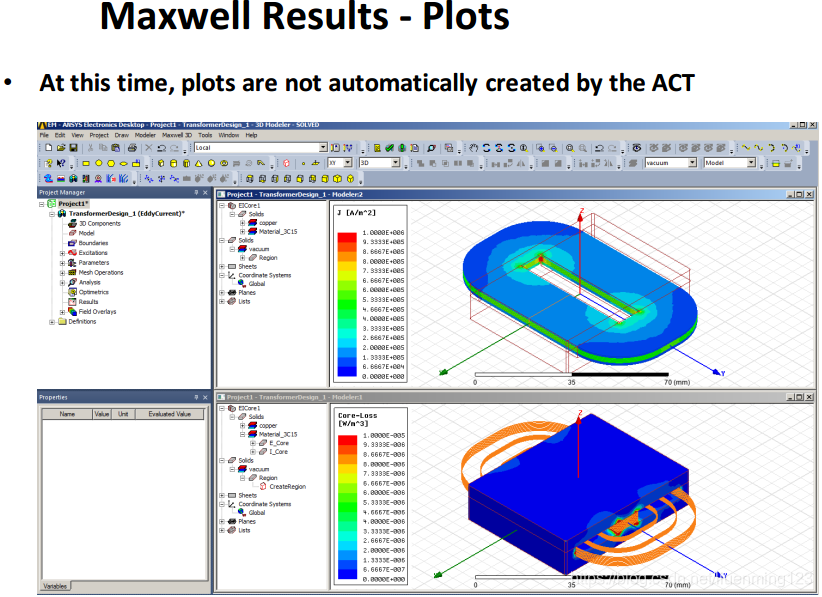

设置完就可以直接仿真查看结果了。

下载的安装文件种附有详细的介绍。

20240117更新：原来的资源失效了，这里我找了网络上确认可以下载的资源

变压器插件的名称是

ACT_ElectronicTransformer_v1.1

ACT_ElectronicTransformer_v2.0.1

下载链接：

链接: https://pan.baidu.com/s/1Xx0pQITU64WRvNQIGf5GcA

   提取码: cy4y
