Teamcenter与NX集成开发：使用NX、SOA连接Teamcenter

最近工作中经常使用Teamcenter、NX集成开发的情况，因此在这里记录使用NX、SOA连接到Teamcenter的连接方式。

主要操作：

1-初始化UGMGR环境成功后就可以连接到Teamcenter。

2-获取指定ID编码零组件标识和Latest Working（没记错的话应该是最新版本）版本ID。

3-获取版本下相关数据集文件（UGMASTER、UGPART等）。

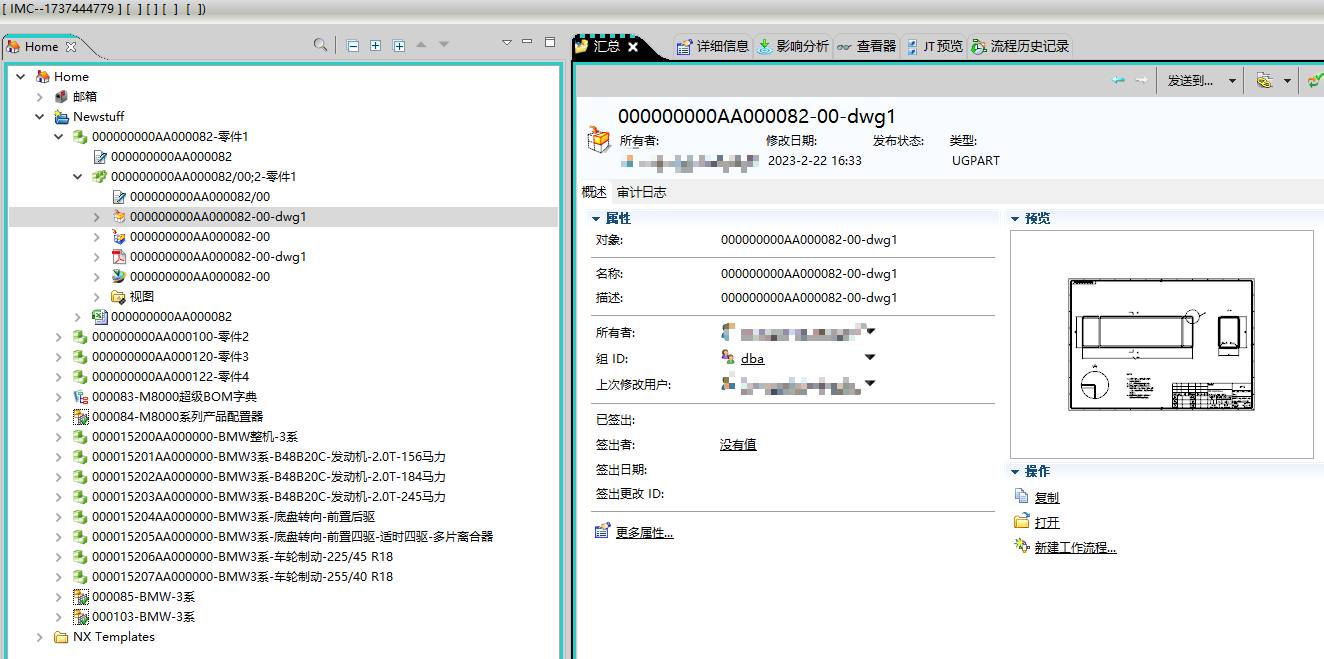

4-ID、版本、文件类型Encode组成集成环境下NX可以打开的NX部件文件名称，并打开。

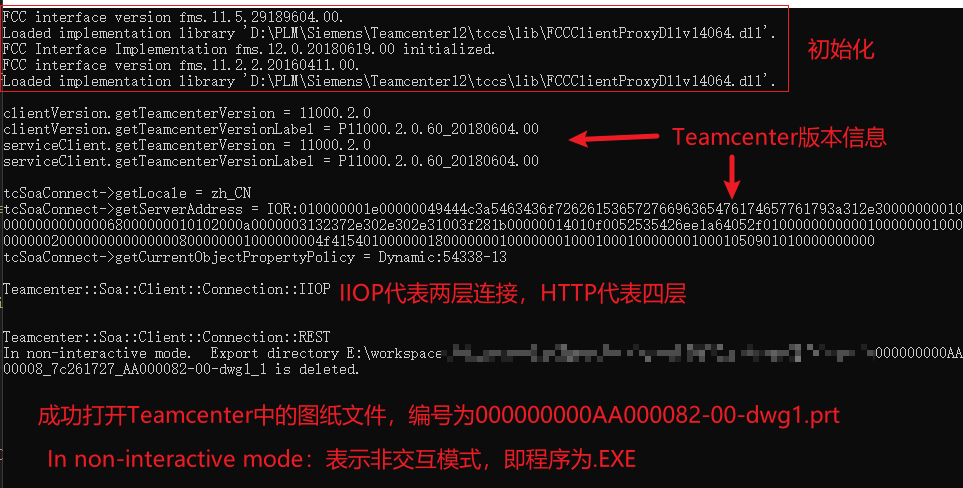

5-获取Session，打印Teamcenter当前登录方式（二层或者四层等）及其他信息。

6-关闭打开的零组件并释放内存。

// Mandatory UF Includes#include <uf.h>#include <uf_object_types.h>#include <uf_ugmgr.h>#include <uf_part.h>#include <uf_disp.h>#include <uf_modl.h>#include <uf_obj.h>#include <uf_assem.h> // Internal+External Includes#include <NXOpen/Annotations.hxx>#include <NXOpen/Assemblies_Component.hxx>#include <NXOpen/Assemblies_ComponentAssembly.hxx>#include <NXOpen/Body.hxx>#include <NXOpen/BodyCollection.hxx>#include <NXOpen/Face.hxx>#include <NXOpen/Line.hxx>#include <NXOpen/NXException.hxx>#include <NXOpen/NXObject.hxx>#include <NXOpen/Part.hxx>#include <NXOpen/PartCollection.hxx>#include <NXOpen/Session.hxx> #include <NXOpen/PDM_PdmSession.hxx>#include <NXOpen/PDM_SoaConnectionHandle.hxx>#include <teamcenter/soa/client/Connection.hxx>#include <teamcenter/services/core/DatamanagementService.hxx>#include <teamcenter/soa/common/Version.hxx> // Std C++ Includes#include <iostream>#include <sstream> using namespace NXOpen;using namespace Teamcenter::Soa::Client;using namespace Teamcenter::Services::Core;using std::string;using std::exception;using std::stringstream;using std::endl;using std::cout;using std::cerr; void do_it(){    int err = 0;    UF_UGMGR_tag_t database_part_tag = NULL_TAG;    err = UF_UGMGR_ask_part_tag("000000000AA000082", &database_part_tag);    err = UF_UGMGR_set_config_rule("Latest Working");     UF_UGMGR_tag_t part_revision = NULL_TAG;    err = UF_UGMGR_ask_configured_rev(database_part_tag, &part_revision);     char revision_id[UF_UGMGR_NAME_BUFSIZE] = { 0 };    err = UF_UGMGR_ask_part_revision_id(part_revision, revision_id);     int file_count = 0;    char** file_types = NULL;    char** file_names = NULL;    err = UF_UGMGR_list_part_rev_files(part_revision, &file_count, &file_types, &file_names);    if (file_count <= 0) return;     for (int idx = 0; idx < file_count; idx++){        if (file_names[idx] == NULL)            continue;         char encoded_name[MAX_FSPEC_BUFSIZE] = { 0 };        err = UF_UGMGR_encode_part_filename("000000000AA000082", revision_id, file_types[idx], file_names[idx], encoded_name);         tag_t partTag = NULL_TAG;        UF_PART_load_status_t error_status;        err = UF_PART_open(encoded_name, &partTag, &error_status);         //===================        // 打开零组件后获取Session,不然会报错。也可以获取零组件属性,打开的是图纸还可以导出PDF。        //===================        NXOpen::Session *theSession = NXOpen::Session::GetSession();        NXOpen::Part *displayPart(theSession->Parts()->Display());        NXOpen::PDM::PdmSession *thePdmSession = NULL;        NXOpen::PDM::SoaConnectionHandle *connectHandle = NULL;        Teamcenter::Soa::Client::Connection *tcSoaConnect = NULL;         thePdmSession = theSession->PdmSession();        connectHandle = thePdmSession->GetSoaConnectionHandle();        tcSoaConnect = reinterpret_cast<Teamcenter::Soa::Client::Connection*>(connectHandle->GetHandle());        Teamcenter::Services::Core::DatamanagementService *dmService = Teamcenter::Services::Core::DatamanagementService::getService(tcSoaConnect);         Teamcenter::Soa::Common::Version clientVersion = tcSoaConnect->getClientVersion();        Teamcenter::Soa::Common::Version serviceClient = tcSoaConnect->getServerVersion();        Teamcenter::Soa::Client::Connection::Protocol protocol = tcSoaConnect->getProtocol();        Teamcenter::Soa::Client::Connection::Binding binding = tcSoaConnect->getBinding();         std::cout << "\nclientVersion.getTeamcenterVersion = " << clientVersion.getTeamcenterVersion() << std::endl;        std::cout << "clientVersion.getTeamcenterVersionLabel = " << clientVersion.getTeamcenterVersionLabel() << std::endl;        std::cout << "serviceClient.getTeamcenterVersion = " << serviceClient.getTeamcenterVersion() << std::endl;        std::cout << "serviceClient.getTeamcenterVersionLabel = " << serviceClient.getTeamcenterVersionLabel() << std::endl;         std::cout << "\ntcSoaConnect->getLocale = " << tcSoaConnect->getLocale() << std::endl;        std::cout << "tcSoaConnect->getServerAddress = " << tcSoaConnect->getServerAddress() << std::endl;        std::cout << "tcSoaConnect->getCurrentObjectPropertyPolicy = " << tcSoaConnect->getCurrentObjectPropertyPolicy() << std::endl;         switch (protocol){        case Teamcenter::Soa::Client::Connection::HTTP:            std::cout << "\n\nTeamcenter::Soa::Client::Connection::HTTP" << std::endl;            break;        case Teamcenter::Soa::Client::Connection::TCCS:            std::cout << "\nTeamcenter::Soa::Client::Connection::TCCS" << std::endl;            break;        case Teamcenter::Soa::Client::Connection::IIOP:            std::cout << "\nTeamcenter::Soa::Client::Connection::IIOP" << std::endl;            break;        case Teamcenter::Soa::Client::Connection::TCTP:            std::cout << "\nTeamcenter::Soa::Client::Connection::TCTP" << std::endl;            break;        default:            break;        }        switch (binding){        case Teamcenter::Soa::Client::Connection::REST:            std::cout << "\n\nTeamcenter::Soa::Client::Connection::REST" << std::endl;            break;        case Teamcenter::Soa::Client::Connection::SOAP:            std::cout << "\nTeamcenter::Soa::Client::Connection::SOAP" << std::endl;            break;        default:            break;        }         err = UF_PART_free_load_status(&error_status);        err = UF_PART_close(partTag, 1, 1);    }     UF_free_string_array(file_count, file_names);    UF_free_string_array(file_count, file_types);    file_types = NULL;    file_names = NULL;} //===================// Entry Point//===================int main(int argc, char* argv[]){    try{        const char** dd = (const char**)(argv);        int err = UF_UGMGR_initialize(argc, dd);        do_it();        err = UF_UGMGR_terminate();        return err;    }    catch (const NXException& e1){        cerr << "NXException: " << e1.ErrorCode() << endl;        cerr << e1.Message() << endl;    }    catch (const exception& e2){        cerr << "Exception: " << e2.what() << endl;    }    catch (...){        cerr << "Unknown Exception: " << endl;    }}

encode：把ID、版本、文件类型编码成NX可以打开的名称。
