Matlab设置图例legend（全面教程）：位置、样式与自定义

阅读数 6

legend('sin(x)','cos(x)','Location','North');

Matlab中有许多位置可以选择：
        'North'          inside plot box near top
        'South'          inside bottom
        'East'           inside right
        'West'           inside left
        'NorthEast'       inside top right (default for 2-D plots)
        'NorthWest'       inside top left
        'SouthEast'       inside bottom right
        'SouthWest'       inside bottom left
        'NorthOutside'      outside plot box near top
        'SouthOutside'      outside bottom
        'EastOutside'       outside right
        'WestOutside'       outside left
        'NorthEastOutside'   outside top right (default for 3-D plots)
        'NorthWestOutside'   outside top left
        'SouthEastOutside'   outside bottom right
        'SouthWestOutside'   outside bottom left
        'Best'           least conflict with data in plot
        'BestOutside'      least unused space outside plot

水平排列

h1 = legend(H([1 3 5]),'First','Third','Fifthth','Location','North');
set(h1,'Orientation','horizon')

不要方框

PS：不要方框，此时图例为透明的颜色，不会遮挡住数据线条

h1 = legend(H([1 3 5]),'First','Third','Fifthth','Location','North');
set(h1,'Orientation','horizon','Box','off')

参考连接
http ://blog. sina .com.cn/s/blog_7db803c10102weyk.html

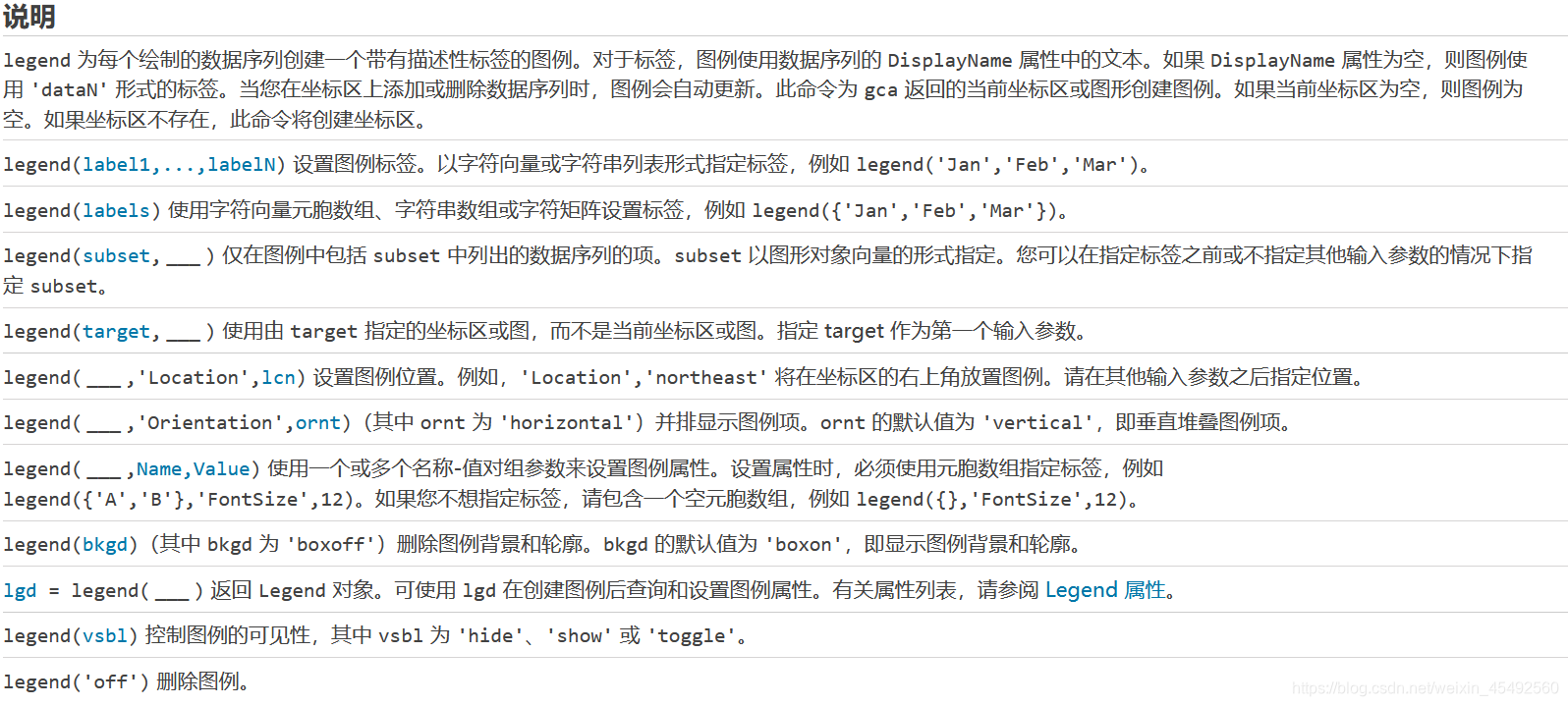

legend详细介绍
在这里插入图片描述

PS：legend（vsb1）也可设置图例的：隐藏、表现、介于两者之间，没试出其效果

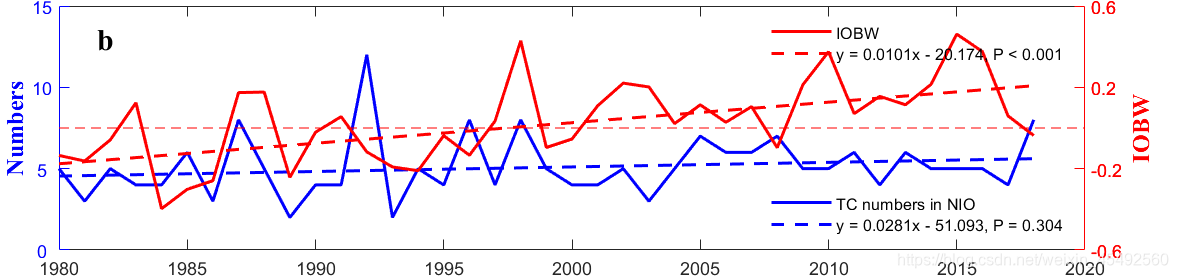

如果想要在一张图上显示2个图例，需要加上下面这句话

ah=axes('position',get(gca,'position'),'visible','off');

呈现效果如下：
在这里插入图片描述

修改legend形状、大小等，添加标题等

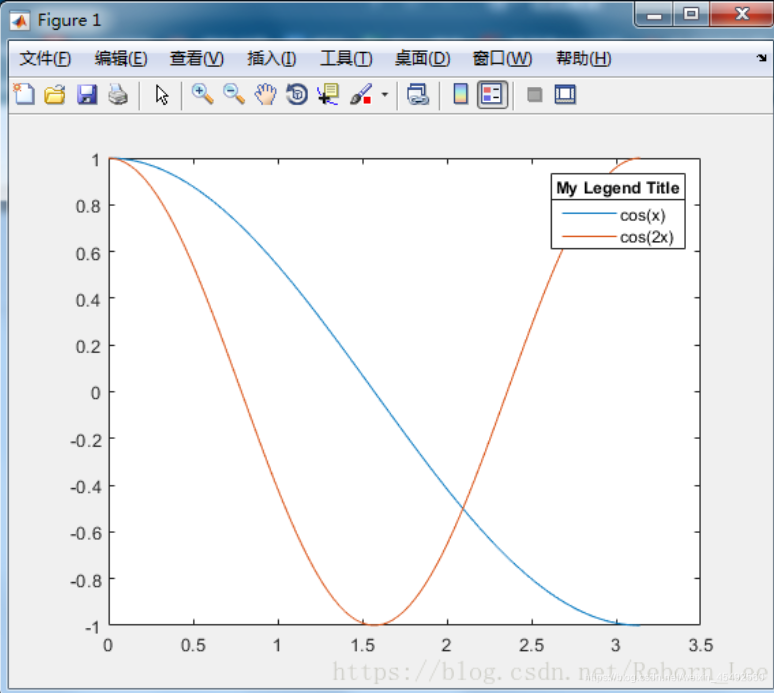

添加标题
在这里插入图片描述

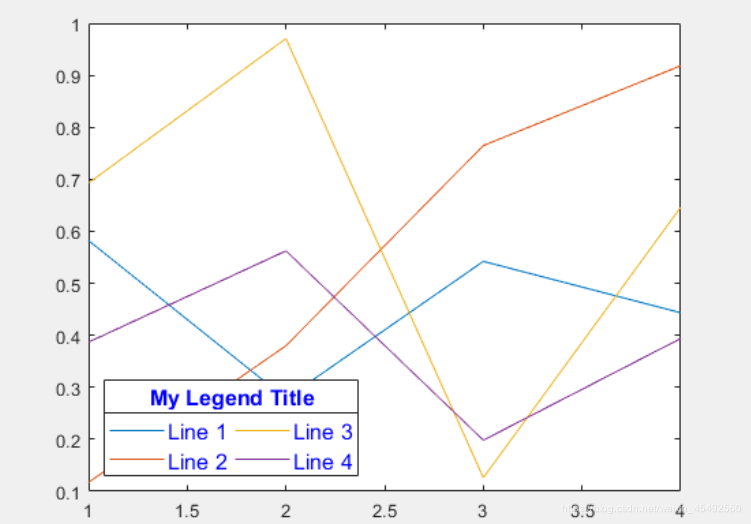

添加颜色、大小等

% Modify the legend appearance by setting Legend properties.

clear
clc
close all

rdm = rand(4);
plot(rdm)

lgd = legend('Line 1','Line 2','Line 3','Line 4');
lgd.FontSize = 12;
lgd.TextColor = 'blue';
lgd.NumColumns = 2;
lgd.Location = 'southwest';
leg.Orientation = 'vertical';
title(lgd,'My Legend Title');

在这里插入图片描述
