ArcGIS JS加载WMTS服务（以超图示例为例）

阅读数 15

前言

在前一篇中说到我们可以通过加载WMS服务解决用ArcGIS API加载超图发布的服务，但是WMS服务在加载效率上是低于切片服务的，加上超图的IServer，无力吐槽，所以，在加载速度的要求下，切片的WMTS服务更符合要求。

加载WMTS服务的要点

identifier：图层标识

tileMatrixSet：切片矩阵标识

extent：加载范围

spatialReference：控件参考

version：WMTS服务版本号

dpi：平铺方案的dpi

lods:定义切片方案的一系列细节层次。

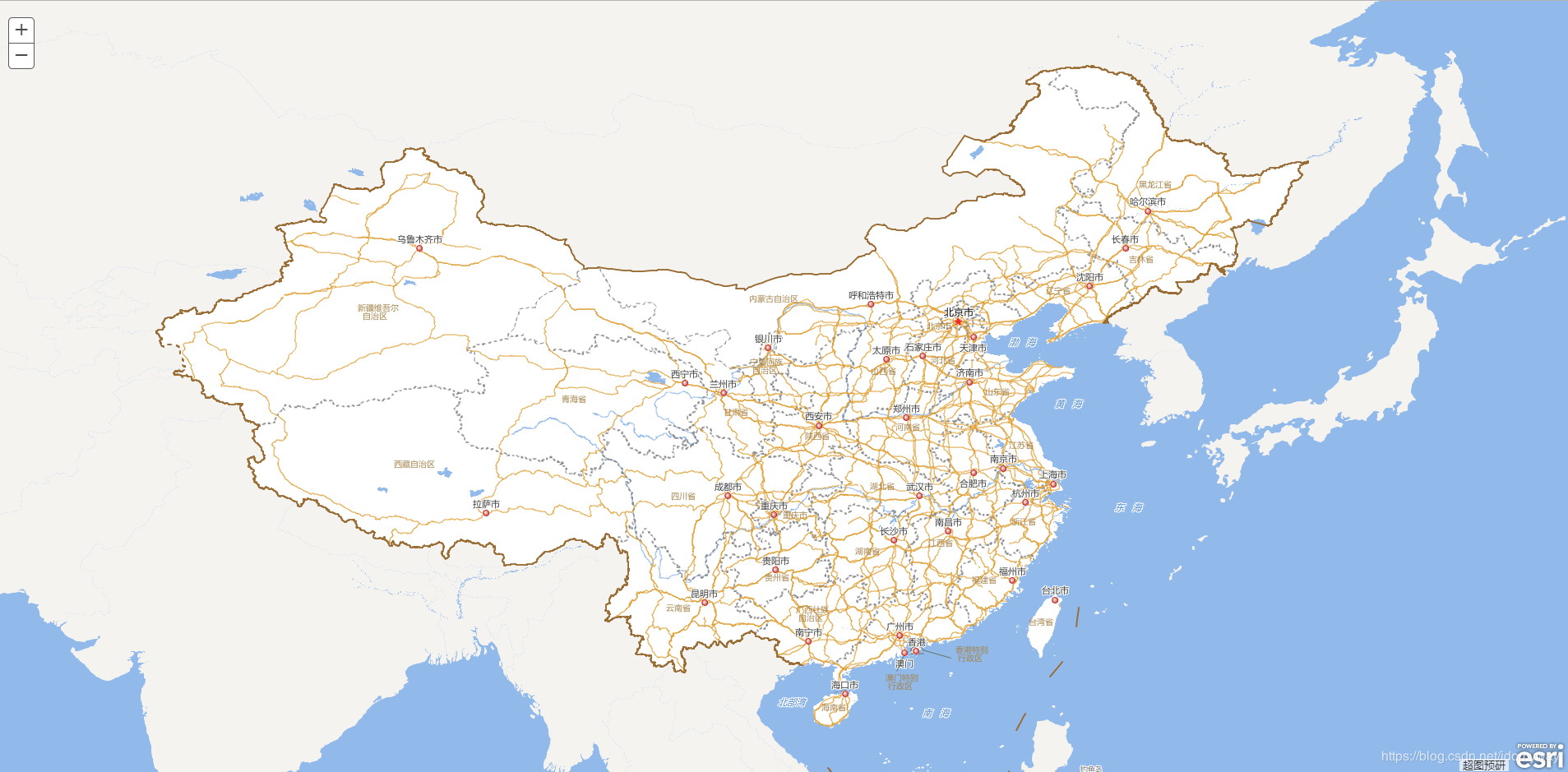

实现效果

实现代码

<!DOCTYPE html>

<html>

<head>

< meta http-equiv="Content- Type " content="text/html; charset=utf-8">

<meta name="viewport" content="initial-scale=1, maximum-scale=1,user-scalable=no">

<title>Map with WMTS resourceinfo</title>

<link rel="stylesheet" type="text/ css " href="http://localhost:8080/arcgis_js_api/library/3.25/3.25/esri/css/esri.css" />

<script type="text/javascript" src="http://localhost:8080/arcgis_js_api/library/3.25/3.25/init.js"></script>

< style >

html,

body,

#map {

height: 100%;

width: 100%;

margin: 0;

padding: 0;

}

</style>

<script>

require([

"esri/map",

"esri/layers/WMTSLayer",

"esri/layers/WMTSLayerInfo",

"esri/geometry/Extent",

"esri/layers/TileInfo",

"esri/SpatialReference",

"dojo/parser",

"dijit/ layout /BorderContainer",

"dijit/layout/ContentPane",

"dojo/domReady!"

], function (

Map,

WMTSLayer,

WMTSLayerInfo,

Extent,

TileInfo,

SpatialReference,

parser

) {

parser.parse();

var map = new Map("map", {

center: [113.707012, 34.766478],

zoom: 3

});

var tileInfo = new TileInfo({

"dpi": 96,

"format": "image/png",

"compressionQuality": 0,

"spatialReference": new SpatialReference({

"wkid": 4326

}),

"rows": 256,

"cols": 256,

"origin": {

"x": -180,

"y": 90

},

"lods": [{

"level": "0","scale": 295829355.45,"resolution": 0.703125

}, {

"level": "1","scale": 147914677.725,"resolution": 0.3515625

}, {

"level": "2", "scale": 73957338.8625,"resolution": 0.17578125

}, {

"level": "3","scale": 36978669.43125,"resolution": 0.087890625

}, {

"level": "4","scale": 18489334.715625,"resolution": 0.0439453125

}, {

"level": "5","scale": 9244667.3578125,"resolution": 0.02197265625

}, {

"level": "6","scale": 4622333.67890625,"resolution": 0.010986328125

}, {

"level": "7","scale": 2311166.83945312,"resolution": 0.0054931640625

}, {

"level": "8","scale": 1155583.41972656,"resolution": 0.00274658203125

}, {

"level": "9","scale": 577791.709863281,"resolution": 0.001373291015625

}, {

"level": "10","scale": 288895.8549316406,"resolution": 0.0006866455078125

}, {

"level": "11","scale": 144447.9274658203,"resolution": 0.00034332275390625

}, {

"level": "12","scale": 4508.935440959931,"resolution": 0.000171661376953125

}, {

"level": "13","scale": 36111.98186645508,"resolution": 0.0000858306884765625

}, {

"level": "14","scale": 18055.99093322754,"resolution": 0.0000429153442382812

}, {

"level": "15","scale": 9027.99546661377,"resolution": 0.0000214576721191406

}, {

"level": "16","scale": 4513.997733306885,"resolution": 0.0000107288360595703

}, {

"level": "17","scale": 2256.9988666534423,"resolution": 0.00000536441802978515

}, {

"level": "18","scale": 1128.4994333267211,"resolution": 0.00000268220901489257

}, {

"level": "19","scale": 564.2497166633606,"resolution": 0.00000134110450744628

}]

});

var tileExtent = new Extent(-180.0 , -85.0511287798065,180.0 , 85.05112877980648, new SpatialReference({

wkid: 4326

}));

var layerInfo = new WMTSLayerInfo({

tileInfo: tileInfo,

fullExtent: tileExtent,

initialExtent: tileExtent,

identifier: "China_4326",

tileMatrixSet: "ChinaPublicServices_China_4326",

format: "png",

style: "default"

});

var resourceInfo = {

version: "1.0.0",

layerInfos: [layerInfo],

copyright: "超图预研"

};

var options = {

serviceMode: "KVP",

resourceInfo: resourceInfo,

layerInfo: layerInfo

};

wmtsLayer = new WMTSLayer("http://www.supermap.com.cn:8090/iserver/services/map-china400/wmts-china", options);

map.addLayer(wmtsLayer);

map.centerAndZoom([113.707012, 34.766478],0);

});

</script>

</head>

<body>

<div id="map"></div>

</body>

</html>
