为Visual Studio 2010开发扩展插件教程

阅读数 26

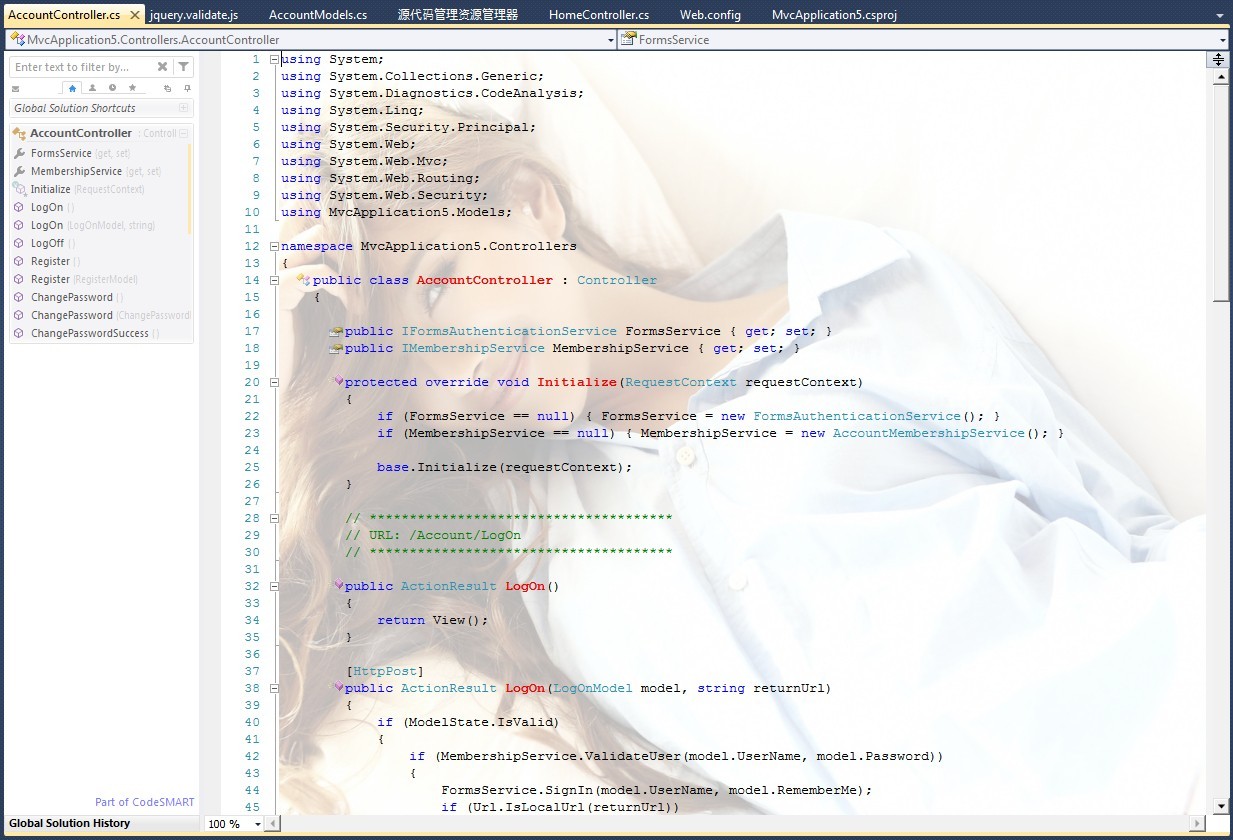

之前看到有国外的大神开发了一些非常好玩的 Visual Studio 扩展插件，觉得非常有意思，自己也参考了别人的代码做了一个插件。

首先需要安装 Visual Studio SDK ，安装不需要其它的工具就可以，直接使用 Visual Studio 安装包。

安装完成后打开 Visual Studio 2010，创建一个名为 VSEditorBackgroud 的 VSIX Project：文件（File）-> 新建（New）-> 项目（Project）->Visual C#->Extensibility-> VSIX Project，名称为 VSEditorBackgroud。

添加 Config 类：

using System;using System.Collections.Generic;using System.Linq;using System.Text;using System.Xml.Serialization;using System.IO; namespace VSEditorBackgroud{    [Serializable]    public class Config    {        public ImageConfig BackgroundImage;        private static Config _Config = null;        [XmlAttribute]        public double LayerOpacity;        private static object staticSyncRoot = new object();         public Config()        {            this.LayerOpacity = 0.5;            this.BackgroundImage = new ImageConfig();        }         public static Config CreatePure()        {            Config config = new Config();            return config;        }         public static Config CurrentConfig        {            get            {                lock (staticSyncRoot)                {                    XmlSerializer serializer = new XmlSerializer(typeof(Config), new XmlRootAttribute("ImageConfig"));                    bool IsCreate = false;                    if (_Config == null)                    {                        if (File.Exists(ConfigConsts.ConfigPath))                        {                            try                            {                                using (StreamReader reader = new StreamReader(ConfigConsts.ConfigPath))                                {                                    _Config = (Config)serializer.Deserialize(reader);                                }                                IsCreate = true;                            }                            catch { }                        }                        if (!IsCreate)                        {                            _Config = CreatePure();                            try                            {                                using (StreamWriter writer = new StreamWriter(ConfigConsts.ConfigPath, false, ConfigConsts.NoBomUTF8))                                {                                    serializer.Serialize(writer, _Config, ConfigConsts.VoidNamespaceMapping);                                }                            }                            catch                            {                            }                        }                    }                }                return _Config;            }        }         [Serializable]        public class ImageConfig        {            [XmlAttribute]            public double Opacity = 1.0;            public string Uri = "\t";        }    }}

添加 ConfigConsts 类：

using System;using System.Collections.Generic;using System.Linq;using System.Text;using System.IO;using System.Threading;using System.Xml.Serialization; namespace VSEditorBackgroud{    internal static class ConfigConsts    {        public static readonly string ConfigPath = Path.Combine(Environment.GetFolderPath(Environment.SpecialFolder.Personal) + "\\Visual Studio 2010\\Settings", "VSEditorBackgroud.config");        private static Encoding nobomutf8;         public static Encoding NoBomUTF8        {            get            {                if (nobomutf8 == null)                {                    Interlocked.CompareExchange<Encoding>(ref nobomutf8, new UTF8Encoding(false), null);                }                return nobomutf8;            }        }         public static XmlSerializerNamespaces VoidNamespaceMapping        {            get            {                XmlSerializerNamespaces namespaces = new XmlSerializerNamespaces();                namespaces.Add("", "");                return namespaces;            }        }    } }

编辑器背景类 EditorBackgroud：

using System.Windows.Controls;using System.Windows.Media;using Microsoft.VisualStudio.Text.Editor;using System.Windows.Media.Imaging;using System; namespace VSEditorBackgroud{    /// <summary>    /// Adornment class that draws a square box in the top right hand corner of the viewport    /// </summary>    public class EditorBackgroud    {        private Image _image;        private IWpfTextView _view;        private IAdornmentLayer _adornmentLayer;         /// <summary>        /// Creates a square image and attaches an event handler to the layout changed event that        /// adds the the square in the upper right-hand corner of the TextView via the adornment layer        /// </summary>        /// <param name="view">The <see cref="IWpfTextView"/> upon which the adornment will be drawn</param>        public EditorBackgroud(IWpfTextView view)        {            _view = view;             Config _Config = Config.CurrentConfig;             //Grab a reference to the adornment layer that this adornment should be added to            _adornmentLayer = view.GetAdornmentLayer("VSEditorBackgroud");             _adornmentLayer.Opacity = _Config.LayerOpacity;            ApplyImageConfig(_Config.BackgroundImage);             _view.ViewportHeightChanged += delegate { this.onSizeChange(); };            _view.ViewportWidthChanged += delegate { this.onSizeChange(); };        }         private void ApplyImageConfig(Config.ImageConfig config)        {            if (config != null)            {                try                {                    Image image = new Image();                    string uri = config.Uri;                    BitmapImage bgImage = new BitmapImage();                    bgImage.BeginInit();                    bgImage.CreateOptions = BitmapCreateOptions.IgnoreImageCache;                    bgImage.CacheOption = BitmapCacheOption.OnLoad;                    bgImage.UriSource = new Uri(uri);                    bgImage.EndInit();                    image.Stretch = Stretch.Fill;                    image.Opacity = config.Opacity;                    image.Source = bgImage;                    this._image = image;                }                catch                {                }            }        }         public void onSizeChange()        {            //clear the adornment layer of previous adornments            _adornmentLayer.RemoveAllAdornments();             if (this._image != null && !this._image.Width.Equals(this._view.ViewportWidth))                this._image.Width = this._view.ViewportWidth;            if (this._image != null && !this._image.Height.Equals(this._view.ViewportHeight))                this._image.Height = this._view.ViewportHeight;             //Place the image in the top right hand corner of the Viewport            Canvas.SetLeft(_image, _view.ViewportLeft);            Canvas.SetTop(_image, _view.ViewportTop);             //add the image to the adornment layer and make it relative to the viewport            _adornmentLayer.AddAdornment(AdornmentPositioningBehavior.ViewportRelative, null, null, _image, null);        }    }}

EditorFactory 类：

using System.ComponentModel.Composition;using Microsoft.VisualStudio.Text.Editor;using Microsoft.VisualStudio.Utilities; namespace VSEditorBackgroud{    #region Adornment Factory    /// <summary>    /// Establishes an <see cref="IAdornmentLayer"/> to place the adornment on and exports the <see cref="IWpfTextViewCreationListener"/>    /// that instantiates the adornment on the event of a <see cref="IWpfTextView"/>'s creation    /// </summary>    [Export(typeof(IWpfTextViewCreationListener))]    [ContentType("text")]    [TextViewRole(PredefinedTextViewRoles.Document)]    internal sealed class PurpleBoxAdornmentFactory : IWpfTextViewCreationListener    {        /// <summary>        /// Defines the adornment layer for the scarlet adornment. This layer is ordered         /// after the selection layer in the Z-order        /// </summary>        [Export(typeof(AdornmentLayerDefinition))]        [Name("VSEditorBackgroud")]        [Order(After = PredefinedAdornmentLayers.Outlining)]        [TextViewRole(PredefinedTextViewRoles.Document)]        public AdornmentLayerDefinition editorAdornmentLayer = null;         /// <summary>        /// Instantiates a Wen manager when a textView is created.        /// </summary>        /// <param name="textView">The <see cref="IWpfTextView"/> upon which the adornment should be placed</param>        public void TextViewCreated(IWpfTextView textView)        {            new EditorBackgroud(textView);        }    }    #endregion //Adornment Factory}

修改 source.extension.vsixmanifest 文件的信息：

<?xml version="1.0" encoding="utf-8"?><Vsix xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xsd="http://www.w3.org/2001/XMLSchema" Version="1.0.0" xmlns="http://schemas.microsoft.com/developer/vsx-schema/2010">  <Identifier Id="3f2ce087-8d13-492c-a207-e1fdbfd1cf58">    <Name>VSEditorBackgroud</Name>    <Author>Charles Zhang</Author>    <Version>1.0.0.5</Version>    <Description xml:space="preserve">The Visual Studio Editor Backgroud plugin. </Description>    <Locale>4</Locale>    <License>license.rtf</License>    <Icon>icon.ico</Icon>    <PreviewImage>PreviewImage.jpg</PreviewImage>    <SupportedProducts>      <VisualStudio Version="10.0">        <Edition>Ultimate</Edition>        <Edition>Premium</Edition>        <Edition>Pro</Edition>        <Edition>Express_All</Edition>      </VisualStudio>      <VisualStudio Version="11.0">        <Edition>Ultimate</Edition>        <Edition>Premium</Edition>        <Edition>Pro</Edition>        <Edition>Express_All</Edition>      </VisualStudio>    </SupportedProducts>    <SupportedFrameworkRuntimeEdition MinVersion="4.0" MaxVersion="4.5" />  </Identifier>  <References />  <Content>    <MefComponent>|%CurrentProject%|</MefComponent>  </Content></Vsix>

在项目中添加一个 PreviewImage.jpg 用做插件的预览图，添加 icon.ico 用做扩展的图标。

编译项目，安装生成的 Vsix 文件。

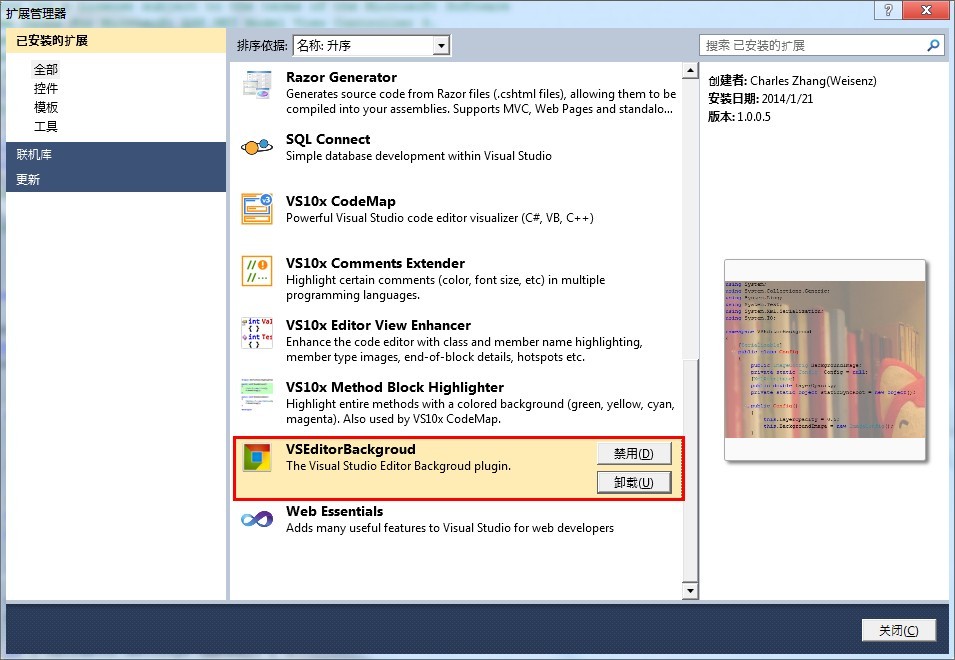

安装好以后在扩展管理器中的效果如下：
