Autodesk浏览器中渲染RVT模型的方法

阅读数 3

使用Forge完成渲染

Forge是什么为什么能够渲染出来rvt模型

Forge是由Autodesk开发的一套云端开发平台和工具集。
在Forge平台中，有一个名为"Model Derivative"的服务，它可以将包括RVT（Revit）在内的多种BIM（Building Information Modeling）文件格式转换为可在Web上浏览和渲染的格式。
具体来说，"Model Derivative"服务可以将RVT（Revit）文件转换为SVF（Scalable Vector Graphics）格式。
SVF是一种基于Web的轻量级3D模型表示格式，可以实现高性能的3D模型渲染和交互。通过将RVT文件转换为SVF格式，可以在Web端使用Forge提供的Viewer组件加载和展示RVT模型

Forge与Autodesk的关系

Autodesk是一家设计软件公司，Forge可以视为Autodesk的云端扩展

渲染步骤：

首先要注册autodesk平台，并创建项目获取自己的client_id与client_secret

官网地址：Autodesk Platform Services (formerly Forge)

如下图：

配置postman环境

下面我们演示通过postman上传模型到Forge云端，然后配置Forge的js渲染出来

post环境文件：

BIM.postman collection. json

{	"info": {		"_postman_id": "aedeb5db-ab5a-4b0e-ba31-d329f6ef66ba",		"name": "Beijing-Workshop",		"schema": "https://schema.getpostman.com/json/collection/v2.0.0/collection.json",		"_exporter_id": "24665034"	},	"item": [		{			"name": "1获取access token",			"event": [				{					"listen": "test",					"script": {						"exec": [							"var data = JSON.parse(responseBody);",							"postman.setEnvironmentVariable(\"access_token\", data.access_token);",							"postman.setEnvironmentVariable(\"expires_in\", data.expires_in);",							"postman.setEnvironmentVariable(\"token_type\", data.token_type);"						],						"type": "text/javascript"					}				}			],			"request": {				"method": "POST",				"header": [					{						"key": "Content-Type",						"value": "application/x-www-form-urlencoded"					}				],				"body": {					"mode": "urlencoded",					"urlencoded": [						{							"key": "client_id",							"value": "{{client_id}}",							"type": "text"						},						{							"key": "client_secret",							"value": "{{client_secret}}",							"type": "text"						},						{							"key": "grant_type",							"value": "client_credentials",							"type": "text"						},						{							"key": "scope",							"value": "data:read data:write bucket:create bucket:read",							"type": "text"						},						{							"key": "expires_in",							"value": "360000",							"type": "text"						}					]				},				"url": "{{base_domain}}/authentication/v1/authenticate"			},			"response": []		},		{			"name": "2创建的存储桶（bucket）",			"event": [				{					"listen": "prerequest",					"script": {						"exec": [							"if (request.data) {",							" var requestData = JSON.parse(request.data);",							" postman.setEnvironmentVariable(\"bucketKey\", requestData.bucketKey);",							" postman.setEnvironmentVariable(\"bucketPolicy\", requestData.policyKey);",							"}"						],						"type": "text/javascript"					}				}			],			"request": {				"method": "POST",				"header": [					{						"key": "Authorization",						"value": "Bearer {{access_token}}"					},					{						"key": "Content-Type",						"value": "application/json"					}				],				"body": {					"mode": "raw",					"raw": "{\n \"bucketKey\":\"ac-persistent-bucket-test8\",\n \"policyKey\":\"persistent\"\n}"				},				"url": "{{base_domain}}/oss/v2/buckets"			},			"response": []		},		{			"name": "3 查看bucket是否创建成功",			"request": {				"method": "GET",				"header": [					{						"key": "Authorization",						"value": "Bearer {{access_token}}"					}				],				"url": {					"raw": "{{base_domain}}/oss/v2/buckets?limit=10",					"host": [						"{{base_domain}}"					],					"path": [						"oss",						"v2",						"buckets"					],					"query": [						{							"key": "limit",							"value": "10"						}					]				}			},			"response": []		},		{			"name": "4往bucket里放置object模型",			"event": [				{					"listen": "test",					"script": {						"exec": [							"if (responseCode.code === 200) {",							" var data = JSON.parse(responseBody);",							" postman.setEnvironmentVariable(\"urn\", data.objectId);",							" postman.setEnvironmentVariable(\"urnBase64\", window.btoa(data.objectId));",							" postman.setEnvironmentVariable(\"file_location\", data.location);",							"}",							""						],						"type": "text/javascript"					}				}			],			"request": {				"method": "PUT",				"header": [					{						"key": "Authorization",						"value": "Bearer {{access_token}}"					}				],				"body": {					"mode": "file",					"file": {						"src": "/C:/Users/ac135/Desktop/rvtText/data/textOne.rvt"					}				},				"url": "{{base_domain}}/oss/v2/buckets/{{bucketKey}}/objects/aggregate-1.rvt"			},			"response": []		},		{			"name": "5检查对象模型是否成功上传",			"request": {				"method": "GET",				"header": [					{						"key": "Authorization",						"value": "Bearer {{access_token}}"					}				],				"url": "{{base_domain}}/oss/v2/buckets/{{bucketKey}}/objects"			},			"response": []		},		{			"name": "6将模型在云端转换成SVF格式",			"event": [				{					"listen": "test",					"script": {						"exec": [							"var data = JSON.parse(responseBody);",							"",							"var setEnvVar = function (tar, src) {",							" if (!src) {",							" return;",							" }",							" postman.setEnvironmentVariable(tar, src);",							"}",							"",							"if (data) {",							" if (data.urn) {",							" setEnvVar(\"urnBase64\", data.urn);",							" }",							"}"						],						"type": "text/javascript"					}				}			],			"request": {				"method": "POST",				"header": [					{						"key": "Authorization",						"value": "Bearer {{access_token}}"					},					{						"key": "Content-Type",						"value": "application/json"					},					{						"key": "x-ads-force",						"value": "true"					}				],				"body": {					"mode": "raw",					"raw": "{\n \"input\": {\n \"urn\": \"{{urnBase64}}\" \n },\n \"output\": {\n \"destination\": {\n \"region\": \"us\"\n },\n \"formats\": [\n {\n \"type\": \"svf\",\n \"views\":[\"2d\", \"3d\"]\n }]\n }\n}"				},				"url": "{{base_domain}}/modelderivative/v2/designdata/job"			},			"response": []		},		{			"name": "7检查模型是否转化完成",			"request": {				"method": "GET",				"header": [					{						"key": "Authorization",						"value": "Bearer {{access_token}}"					},					{						"key": "Accept",						"value": "application/vnd.api+json,application/json"					}				],				"url": "{{base_domain}}/modelderivative/v2/designdata/{{urnBase64}}/manifest"			},			"response": []		},		{			"name": "04-POST job",			"event": [				{					"listen": "test",					"script": {						"type": "text/javascript",						"exec": [							"var data = JSON.parse(responseBody);",							"",							"",							"if (data) {",							" if (data.urn) {",							" postman.setEnvironmentVariable(\"urnBase64\", data.urn);",							" }",							"}"						]					}				}			],			"request": {				"method": "POST",				"header": [					{						"key": "Authorization",						"value": "Bearer {{access_token}}"					},					{						"key": "Content-Type",						"value": "application/json"					},					{						"key": "x-ads-force",						"value": "true"					}				],				"body": {					"mode": "raw",					"raw": "{\n \"input\": {\n \"urn\": \"{{urnBase64}}\" \n },\n \"output\": {\n \"destination\": {\n \"region\": \"us\"\n },\n \"formats\": [\n {\n \"type\": \"svf\",\n \"views\":[\"2d\", \"3d\"]\n }]\n }\n}"				},				"url": "{{base_domain}}/modelderivative/v2/designdata/job"			},			"response": []		},		{			"name": "06-GET metadata",			"request": {				"method": "GET",				"header": [					{						"key": "Authorization",						"value": "Bearer {{access_token}}"					}				],				"url": "{{base_domain}}/modelderivative/v2/designdata/{{urnBase64}}/metadata"			},			"response": []		},		{			"name": "07-GET metadata/:guid",			"request": {				"method": "GET",				"header": [					{						"key": "Authorization",						"value": "Bearer {{access_token}}"					},					{						"key": "Accept-Encoding",						"value": "gzip"					}				],				"url": "{{base_domain}}/modelderivative/v2/designdata/{{urnBase64}}/metadata/{{metadata_guid}}"			},			"response": []		},		{			"name": "08-GET :urn/metadata/:guid/properties",			"request": {				"method": "GET",				"header": [					{						"key": "Authorization",						"value": "Bearer {{access_token}}"					}				],				"url": "{{base_domain}}/modelderivative/v2/designdata/{{urnBase64}}/metadata/{{metadata_guid}}/properties"			},			"response": []		},		{			"name": "09-bucket details",			"event": [				{					"listen": "test",					"script": {						"type": "text/javascript",						"exec": [							"if (responseCode.code === 200 && responseBody) {",							" var data = JSON.parse(responseBody);",							" postman.setEnvironmentVariable(\"bucketKey\", data.bucketKey);",							"}"						]					}				}			],			"request": {				"method": "GET",				"header": [					{						"key": "Authorization",						"value": "Bearer {{access_token}}"					}				],				"url": "{{base_domain}}/oss/v2/buckets/{{bucketKey}}/details"			},			"response": []		},		{			"name": "12-GET formats",			"request": {				"method": "GET",				"header": [					{						"key": "Authorization",						"value": "Bearer {{access_token}}"					}				],				"url": "{{base_domain}}/modelderivative/v2/designdata/formats"			},			"response": []		}	]}

BIM.postman environment,.json

{	"id": "63cf71cf-bae6-411f-8e53-7319cf62fd9a",	"name": "Beijing-Workshop",	"values": [		{			"key": "base_domain",			"value": "https://developer.api.autodesk.com",			"type": "text",			"enabled": true		},		{			"key": "client_id",			"value": "xxxxxxxxx",			"type": "text",			"enabled": true		},		{			"key": "client_secret",			"value": "xxxxxxxxxxx",			"type": "text",			"enabled": true		},		{			"key": "urnBase64",			"value": "dXJuOmFkc2sub2JqZWN0czpvcy5vYmplY3Q6YWMtcGVyc2lzdGVudC1idWNrZXQtdGVzdDMvYWdncmVnYXRlLTEucnZ0",			"type": "text",			"enabled": true		},		{			"key": "access_token",			"value": "eyJhbGciOiJIUzI1NiIsImtpZCI6Imp3dF9zeW1tZXRyaWNfa2V5In0.eyJjbGllbnRfaWQiOiJNbDhXdWJFdW52WVRaRk1za2xpQ200YnZCM0dkREVibyIsImV4cCI6MTUyNjExNDc3OCwic2NvcGUiOlsiZGF0YTpyZWFkIiwiZGF0YTp3cml0ZSIsImJ1Y2tldDpjcmVhdGUiLCJidWNrZXQ6cmVhZCJdLCJhdWQiOiJodHRwczovL2F1dG9kZXNrLmNvbS9hdWQvand0ZXhwNjAiLCJqdGkiOiIxMEV2aEVpcGhQMGszTm9FNkFOa2NnR1pKOVJUaUhDazA3dXhWMDFFc1R1M2twS2tVNnB4a2d5d3A5QXBFakpDIn0.prPXmCc9e1oxZcPFSEgPOlonHG8po16RdzDciborQlg",			"type": "text",			"enabled": true		},		{			"key": "guid",			"value": "57873878-6d98-b389-aa22-fead1053823f",			"type": "text",			"enabled": true		},		{			"key": "bucketKey",			"value": "xiaodong-persistent-bucket-test8",			"type": "text",			"enabled": true		},		{			"key": "guid",			"value": "e22cc916-cabd-4b97-9ccd-1ab1e613f707",			"type": "text",			"enabled": true		},		{			"key": "objectKey",			"value": "RevitNative.rvt",			"type": "text",			"enabled": true		},		{			"key": "expires_in",			"value": "3599",			"type": "text",			"enabled": true		},		{			"key": "token_type",			"value": "Bearer",			"type": "text",			"enabled": true		},		{			"key": "bucketPolicy",			"value": "persistent",			"type": "text",			"enabled": true		},		{			"key": "urn",			"value": "urn:adsk.objects:os.object:xiaodong-persistent-bucket-test8/workshop-2.rvt",			"type": "text",			"enabled": true		},		{			"key": "file_location",			"value": "https://developer.api.autodesk.com/oss/v2/buckets/xiaodong-persistent-bucket-test8/objects/workshop-2.rvt",			"type": "text",			"enabled": true		}	],	"_postman_variable_scope": "environment",	"_postman_exported_at": "2023-07-15T15:06:21.850Z",	"_postman_exported_using": "Postman/10.16.0"}

client_secret与client_id记住改成自己的，然后就开始用postman请求上传了

获取access token

https://developer.api.autodesk.com/authentication/v1/authenticate

是用于获取 Autodesk API 的访问令牌（access token）的认证

请求中包含必要的认证信息

客户端 ID（client_id）
客户端密钥（client_secret）
grant_type：授权类型，通常为 "client_credentials"（客户端凭据模式）
scope：请求的权限范围，用空格分隔多个权限（如 "data:read data:write"）
expires_in：设置合适的过期时间，单位毫秒

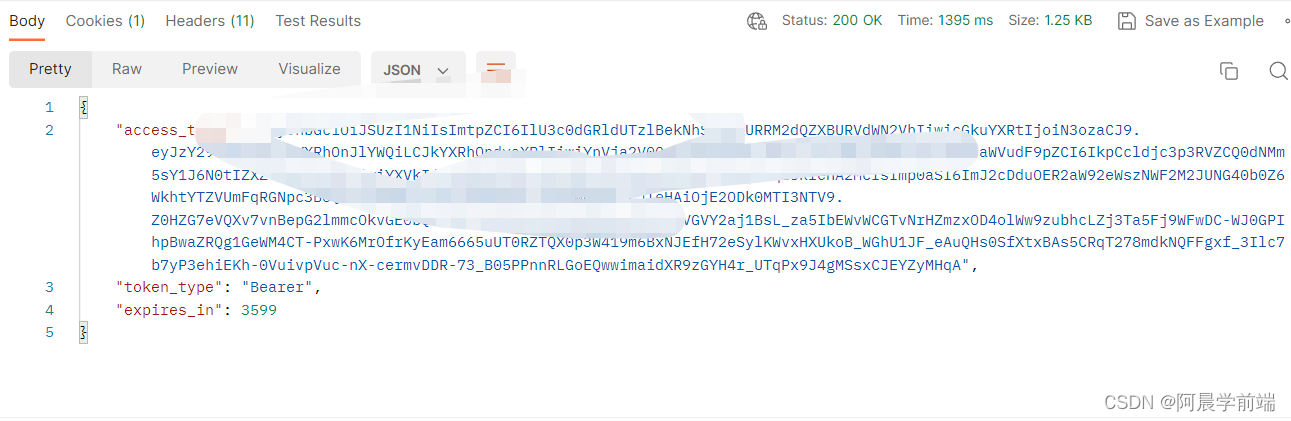

响应结果：

创建 Autodesk Forge 中的存储桶（bucket）

https://developer.api.autodesk.com/oss/v2/buckets

请求中包含必要的认证信息:

Authorization：Authorization: Bearer {{access_token}}
bucketKey：存储桶的唯一标识符，它必须是全局唯一的。可以使用小写字母、数字、连字符 - 和下划线 _ 来命名。长度应在3到128个字符之间。
policyKey：存储桶的访问策略。默认为 transient，表示存储桶中的对象在30天后过期； persistent，表示永久保存

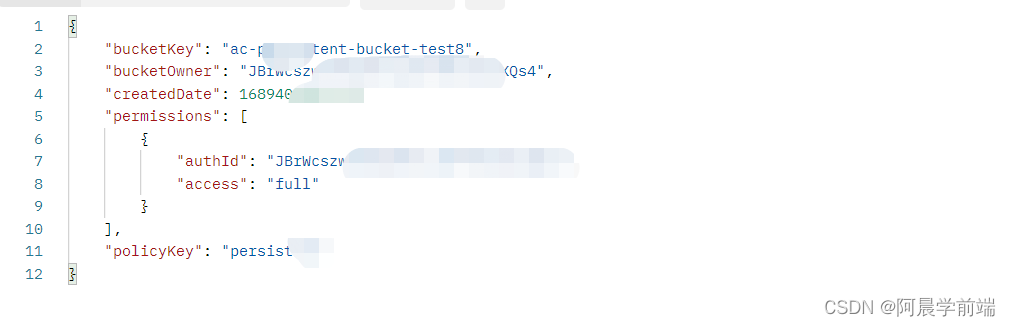

响应结果：

查看bucket是否创建成功

https://developer.api.autodesk.com/oss/v2/buckets

请求中包含必要的认证信息:

Authorization：Authorization: Bearer {{access_token}}

请求可选的参数信息:

limit：指定要返回的存储桶数量的限制。例如，返回最多 10 个存储桶，默认为 10

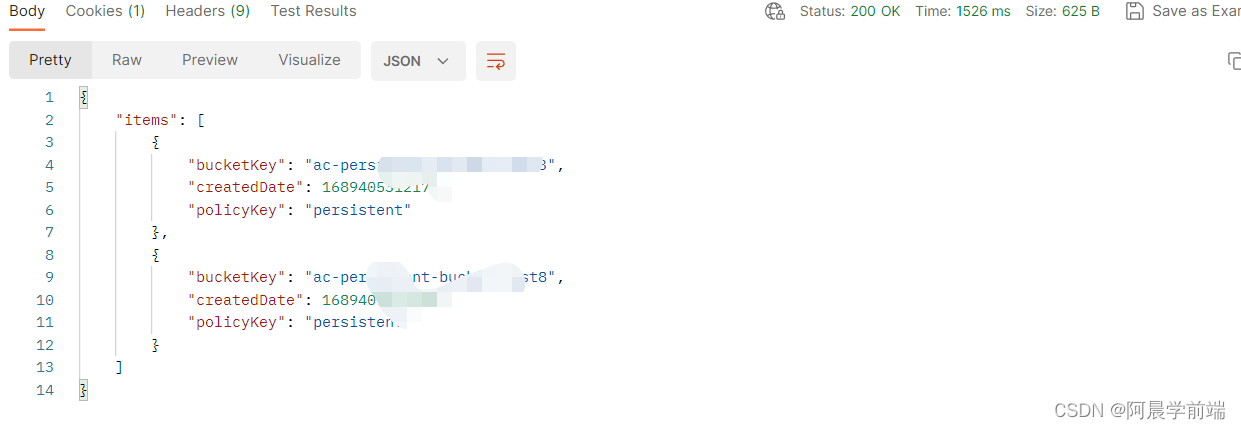

响应结果：

往bucket里放置object模型

https://developer.api.autodesk.com/oss/v2/buckets/{bucketKey}/objects/{objectName}

请求中包含必要的认证信息:

Authorization：Authorization: Bearer {{access_token}}
选择需要放置的rvt模型
objectName：每个文件在存储桶中都有一个唯一的标识符

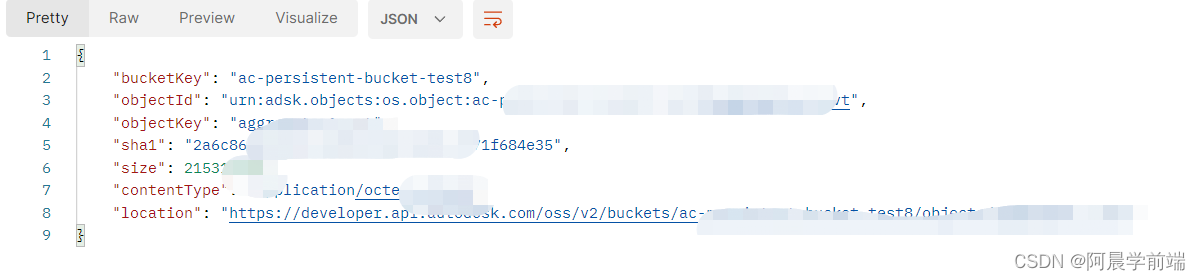

响应结果：

检查对象模型是否成功上传到 Autodesk Forge 存储桶（bucket）中

https://developer.api.autodesk.com/oss/v2/buckets/{{bucketKey}}/objects

请求中包含必要的认证信息:

Authorization：Authorization: Bearer {{access_token}}
bucketKey：查询的存储桶的实际标识符

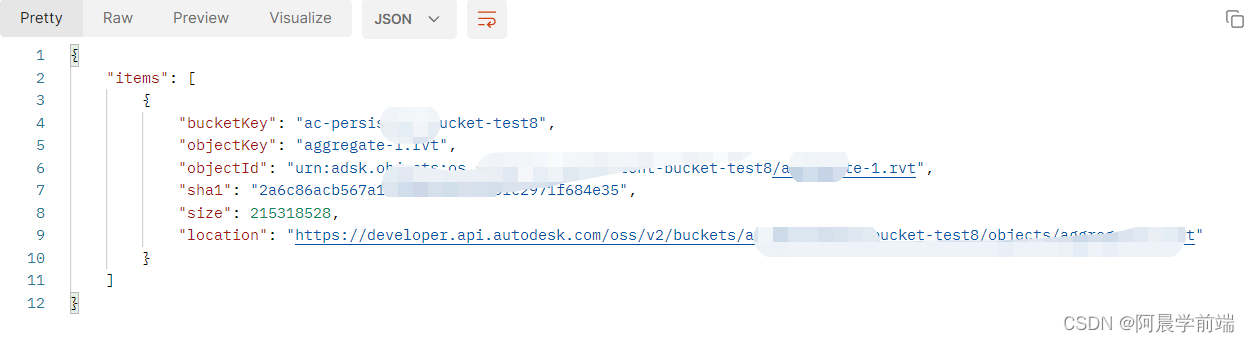

响应结果：

将模型在云端转换成SVF格式

https://developer.api.autodesk.com/modelderivative/v2/designdata/job

请求中包含必要的认证信息:

Authorization：Authorization: Bearer {{access_token}}
input：指定要转换的对象的 URN（Uniform Resource Name）。将 object_id 的 URN 作为输入。
output：指定要生成的输出格式和文件类型。在这里，你可以指定 SVF 格式作为输出。例如，{"formats": [{"type": "svf", "views": ["2d", "3d"]}]}

备注：input中的urn是 objectId转化为Base64格式

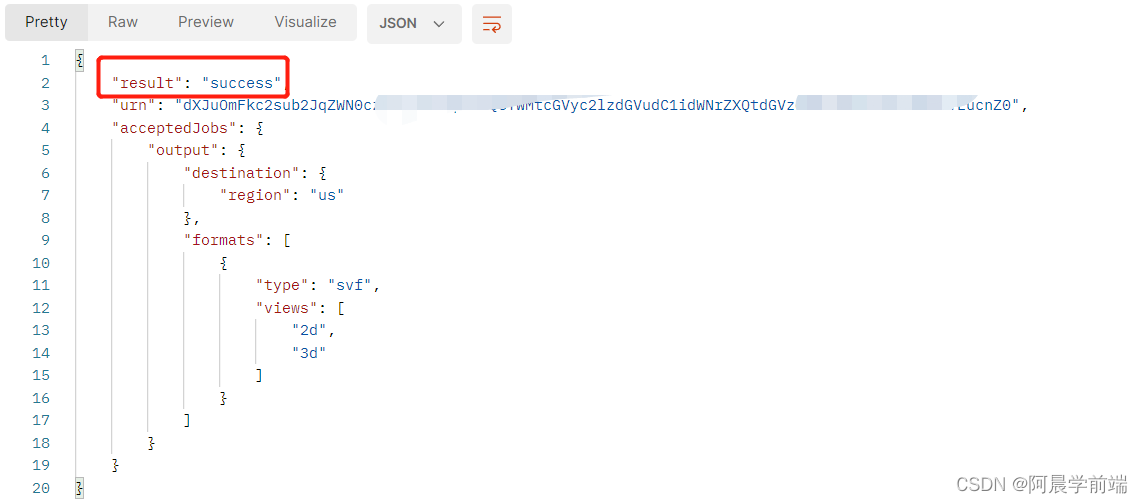

响应结果：

检查模型是否转化完成

https://developer.api.autodesk.com/modelderivative/v2/designdata/{base64_urn}/manifest

请求中包含必要的认证信息:

Authorization：Authorization: Bearer {{access_token}}
base64_urn：经过 Base64 编码的 URN

响应结果：

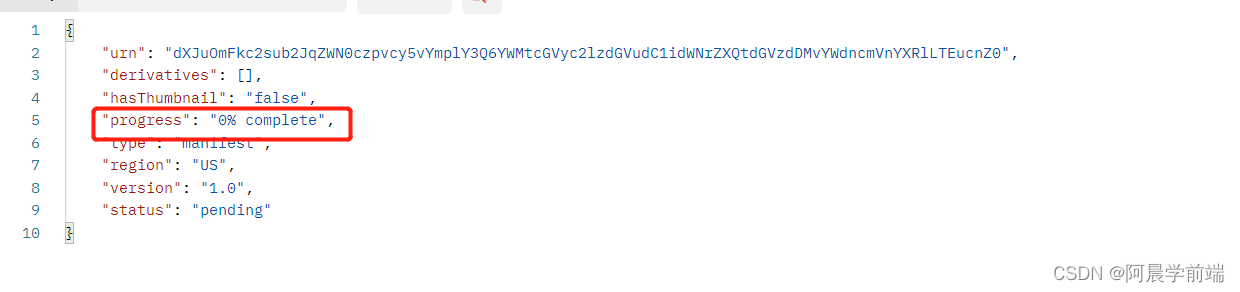

图一表示进度，图二代表成功

浏览器渲染：

html 渲染模板将accessToken与documentId替换掉就行

<!DOCTYPE html><html> <head>    <title>Autodesk Forge: 3D Viewer App Sample</title>     <meta http-equiv="cache-control" content="max-age=0" />    <meta http-equiv="cache-control" content="no-cache" />    <meta http-equiv="expires" content="0" />    <meta http-equiv="expires" content="Tue, 01 Jan 1980 1:00:00 GMT" />    <meta http-equiv="pragma" content="no-cache" />    <!-- Third Party package -->    <script src="https://code.jquery.com/jquery-3.3.1.min.js"></script>    <!-- Autodesk Forge Viewer files (IMPORTANT) -->    <link rel="stylesheet" href="https://developer.api.autodesk.com/modelderivative/v2/viewers/7.51/style.min.css"        type="text/css">    <script src="https://developer.api.autodesk.com/modelderivative/v2/viewers/7.51/viewer3D.min.js"></script>     <style>        /** Just simple CSS styling to make this page a little nicer **/        body {            margin: 0;            padding: 0;        }    </style></head> <body>     <!-- The Viewer will be instantiated here -->    <div id="MyViewerDiv"></div>     <!-- Custom script -->    <script>        var viewer;        var options = {            env: 'AutodeskProduction',            api: 'derivativeV2', // TODO: for models uploaded to EMEA change this option to 'derivativeV2_EU'            // getAccessToken: getForgeToken            accessToken: 'eyJhbGciOiJSUzI1NiIsImtpZCI6IlU3c0dGRldUTzlBekNhSzBqZURRM2dQZXBURVdWN2VhIiwicGkuYXRtIjoiN3ozaCJ9.eyJzY29wZSI6WyJkYXRhOnJlYWQiLCJkYXRhOndyaXRlIiwiYnVja2V0OmNyZWF0ZSIsImJ1Y2tldDpyZWFkIl0sImNsaWVudF9pZCI6IkpCcldjc3p3RVZCQ0dNMm5sY1J6N0tIZXZTbXpYUXM0IiwiYXVkIjoiaHR0cHM6Ly9hdXRvZGVzay5jb20vYXVkL2Fqd3RleHA2MCIsImp0aSI6ImJjWXBRalcwekh5aTZyUEd3QU1kNjdjamlWS1Q2dDZIYXNqcjFmOXR4OUExeGhZY05JWkhINVlibkdDeHVaTWoiLCJleHAiOjE2ODk5MTI0ODB9.JdpIFQAmWmsGc-t2g3tpU677G1Y11RwF4ndTxbwSa4hE5tOjYtLsMK7pR-jGGWIHAEHUkScvDixQWFIUG_o5UWpwhAdH7r06126QhGFNk_Wf1d8OvoDknqdKt9aXns_1xvxucOdPs3VkJ8BWH6j65B3fxZ7GB5jub3zeF7sGuYd1zBL9FdAcQ5_uQUBpEXh8uP4yZ_Y3yDe_mnTx2OxTMyRXsHw7quWjtxXDQXweGq0xDn3ENayOTkYnsru3_GJmGXUE4b-Zl1csHENJyyegkDqrfbaLbMeKagCWxY-RnCikmg80iWDqOd6KvIejRbQdqpjdQWz4i3Qx6Wnj6Lzf4w'        };        // var documentId = 'urn:' + getUrlParameter('urn');        var documentId = 'urn:dXJuOmFkc2sub2JqZWN0czpvcy5vYmplY3Q6YWMtcGVyc2lzdGVudC1idWNrZXQtdGVzdDMvYWdncmVnYXRlLTEucnZ0'        // 初始化和加载文档的部分        Autodesk.Viewing.Initializer(options, function onInitialized() {            // Find the element where the 3d viewer will live.             var htmlElement = document.getElementById('MyViewerDiv');            if (htmlElement) {                // Create and start the viewer in that element                 viewer = new Autodesk.Viewing.GuiViewer3D(htmlElement);                viewer.start();                // Load the document into the viewer.                Autodesk.Viewing.Document.load(documentId, onDocumentLoadSuccess, onDocumentLoadFailure);                $('.adsk-viewing-viewer').css('height', '80%')                $('.adsk-viewing-viewer').css('width', '42%')            }        });         /** * 加载模型的回调函数 */        function onDocumentLoadSuccess(doc) {            // Load the default viewable geometry into the viewer.            // Using the doc, we have access to the root BubbleNode,            // which references the root node of a graph that wraps each object from the Manifest JSON.            var viewable = doc.getRoot().getDefaultGeometry();            if (viewable) {                viewer.loadDocumentNode(doc, viewable).then(function (result) {                    console.log('Viewable Loaded!');                }).catch(function (err) {                    console.log('Viewable failed to load.');                    console.log(err);                }                )            }        }         /** * 文档加载失败时的回调函数 */        function onDocumentLoadFailure(viewerErrorCode) {            console.error('onDocumentLoadFailure() - errorCode: ' + viewerErrorCode);            jQuery('#MyViewerDiv').html('<p>Translation in progress... Please try refreshing the page.</p>');        }     </script></body> </html>

效果图如下：
