Abaqus子程序设置与配置指南

Software Preparation

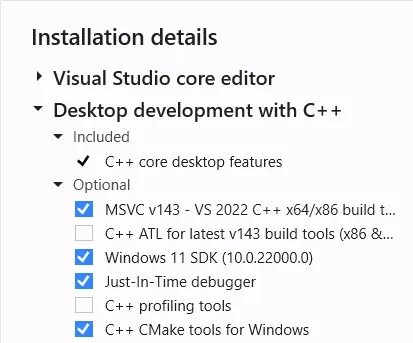

1. Install visual studio 2022. Select components in the picture below:

2. Install Intel® Fortran Compiler only after visual studio installed. Link: https://www.intel.com/content/www/us/en/developer/articles/tool/oneapi-standalone-components.html#fortran.

3. Install Abaqus 2022 at any time you want. It's both OK to install Abaqus first or last.

Modify System Environment Variables

add this path in System Properties > Environment Variables > System variables > Path:

C:\Program Files (x86)\Intel\oneAPI\compiler\latest\windows\bin\intel64

Modify shortcuts

Modify two shortcuts, add follow command in front of shortcuts' original target:

"C:\Program Files (x86)\Intel\oneAPI\compiler\latest\env\vars.bat" intel64 vs2022 &

tip: "intel64" and "vs2022" are variables used by "vars.bat". You could open "vars.bat" to check which values supported.

For example:

Original CAE shortcut Target：

"C:\Program Files\SIMULIA\EstProducts\2022\win_b64\resources\install\cmdDirFeature\launcher.bat" cae || pause

Modified CAE shortcut Target：

"C:\Program Files (x86)\Intel\oneAPI\compiler\latest\env\vars.bat" intel64 vs2022 & "C:\Program Files\SIMULIA\EstProducts\2022\win_b64\resources\install\cmdDirFeature\launcher.bat" cae || pause

Original Command shortcut Target：

C:\Windows\System32\cmd.exe /k

Modified Command shortcut Target：

"C:\Program Files (x86)\Intel\oneAPI\compiler\<version2>\env\vars.bat" intel64 vs2022 & C:\Windows\system32\cmd.exe /k
