OVN架构与原理深度解析

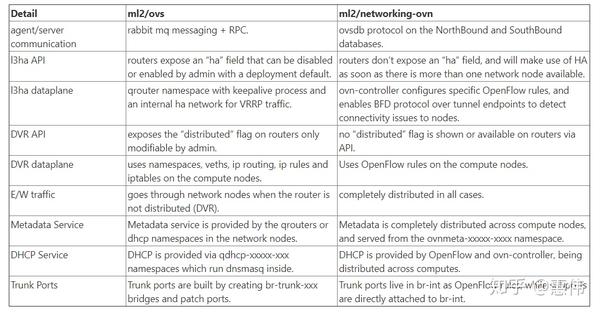

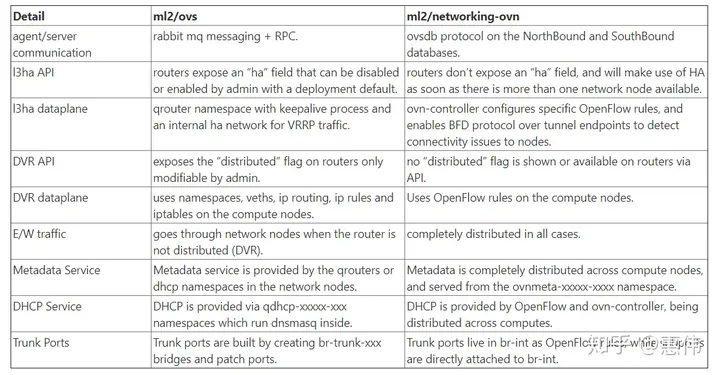

OVN来源

ovn是轻量级的SDN controller，网络的事情交给SDN来完成，openstack neutron-server只提供api和db。

不再需要那么多agent(neutron-openvswitch-agent,neutron-l3-agent,neutron-dhcp-agent)等

ovn组件之间用自己方式通信，不再用RPC通信。

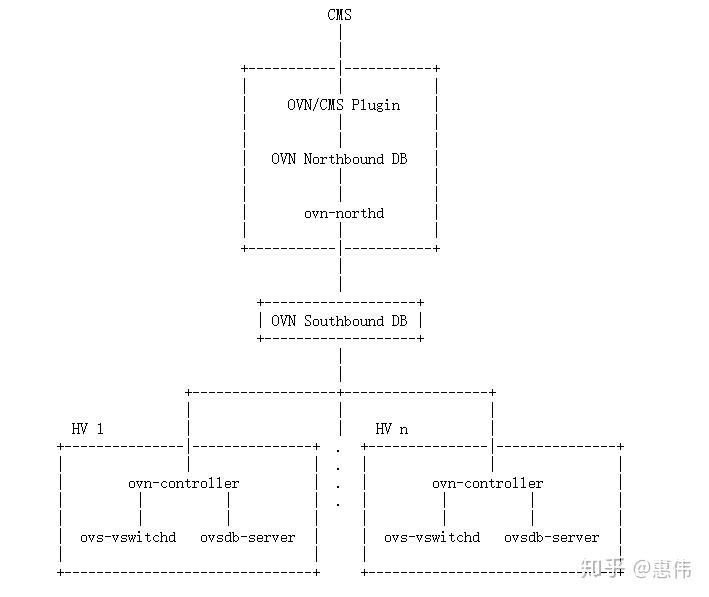

OVN架构

networking-ovn作为neutron-server的plugin，把neutron-server api请求写到ovn-north DB中。

ovn-northd监听ovn-north DB，然后把ovn-north DB翻译成ovn-south DB

ovn-controller监听ovn-south DB，获取信息然后操作ovs

ovn north DB

对应openstack neutron的数据库，都是逻辑的概念，由neutron plugin写数据库

logical switch等价于neutron network，logical router等价于neutron中的router

logical port 等价于openstack中的port，分为如下几类

logical port

其它都能在neutron中找到对应的东西

NB_Global Northbound configuration

  Logical_Switch L2 logical switch

  Logical_Switch_Port L2 logical switch port

  Address_Set Address Sets

  Load_Balancer load balancer

  ACL Access Control List (ACL) rule

  Logical_Router L3 logical router

  QoS QOS table

  Logical_Router_Port L3 logical router port

  Logical_Router_Static_Route Logical router static routes

  NAT NAT rules

  DHCP_Options DHCP options

  Connection OVSDB client connections.

  DNS Native DNS resolution

  SSL SSL configuration.

  Gateway_Chassis Gateway_Chassis configuration

ovn south DB

逻辑网络 物理网络 以及二者的对应关系

逻辑网络由ovn-northd写，物理网络和二者对应关系由ovn-controller写

SB_Global Southbound configuration

  Chassis Physical Network Hypervisor and Gateway Information

  Encap Encapsulation Types

  Address_Set Address Sets

  Logical_Flow Logical Network Flows

  Multicast_Group Logical Port Multicast Groups

  Datapath_Binding Physical-Logical Datapath Bindings

  Port_Binding Physical-Logical Port Bindings

  MAC_Bindin IP to MAC bindings

  DHCP_Options DHCP Options supported by native OVN DHCP

  DHCPv6_Options DHCPv6 Options supported by native OVN DHCPv6

ovn-northd

主要是把logical switch和logical router翻译成logical flow

logical flow有switch和router datapath，每个datapath又分为ingress和egress

流量依次经过每一个table，并且先ingress后egree

Logical Switch Datapaths

  Ingress Table 0: Admission Control and Ingress Port Security - L2

  Ingress Table 1: Ingress Port Security - IP

  Ingress Table 2: Ingress Port Security - Neighbor discovery

  Ingress Table 3: from-lport Pre-ACLs

  Ingress Table 4: Pre-LB

  Ingress Table 5: Pre-stateful

  Ingress table 6: from-lport ACLs

  Ingress Table 7: from-lport QoS Marking

  Ingress Table 8: from-lport QoS Meter

  Ingress Table 9: LB

  Ingress Table 10: Stateful

  Ingress Table 11: ARP/ND responder

  Ingress Table 12: DHCP option processing

  Ingress Table 13: DHCP responses

  Ingress Table 14 DNS Lookup

  Ingress Table 15 DNS Responses

  Ingress Table 16 Destination Lookup

  Egress Table 0: Pre-LB

  Egress Table 1: to-lport Pre-ACLs

  Egress Table 2: Pre-stateful

  Egress Table 3: LB

  Egress Table 4: to-lport ACLs

  Egress Table 5: to-lport QoS Marking

  Egress Table 6: to-lport QoS Meter

  Egress Table 7: Stateful

  Egress Table 8: Egress Port Security - IP

  Egress Table 9: Egress Port Security - L2

Logical Router Datapaths

  Ingress Table 0: L2 Admission Control

  Ingress Table 1: IP Input

  Ingress Table 2: DEFRAG

  Ingress Table 3: UNSNAT

  Ingress Table 4: DNAT(Gateway Routers or Distributed Routers)

  Ingress Table 5: IPv6 ND RA option processing

  Ingress Table 6: IPv6 ND RA responder

  Ingress Table 7: IP Routing

  Ingress Table 8: ARP/ND Resolution

  Ingress Table 9: Gateway Redirect

  Ingress Table 10: ARP Request

  Egress Table 0: UNDNAT

  Egress Table 1: SNAT(Gateway Routers or Distributed Routers)

  Egress Table 2: Egress Loopback

  Egress Table 3: Delivery

ovn-controller

每个hypervisor上运行一个，连接到ovn south DB，然后把ovn south DB中获取的信息写到本地ovs DB中

然后作为ovs-vswitchd的controller，把logical flow转换成ovs flow

转发原理

hypervisor之间流量用geneve封装，和物理VTEP之间才用vxlan，geneve相比vxlan头部有TLV扩展，

可以跨hypervisor之间携带更多信息，如（logical datapath field, input port, output port, conntrack zone等）

ovn-controller在每一个hypervisor上创建一个br-int桥，VM直接连接到br-int桥上，ovn-controller还会在br-int

上添加tunnel口，用于和其它hypervisor和gateway互通

如果要和物理网络打通，还需要类似于neutron中的bridge mapping，单独创建一个bridge，bridge中绑定一个host

上的物理口，这个物理口和物理网络通着，最后br-int bridge和这个bridge用patch port互连，neutron中创建网络时

provider physical network指定这个物理口。
