恒讯XH-SMD PTC贴片保险丝选型指南，电流电压参数匹配要点

Hengxun Technology (Jiaxing) Co.,Ltd.恒讯科技(嘉兴)有限公司华南地区授权代理分销商，电话075582574660 82542001邮箱Lily@szkoyu.com sales01@szkoyu.com提供方案技术支持~

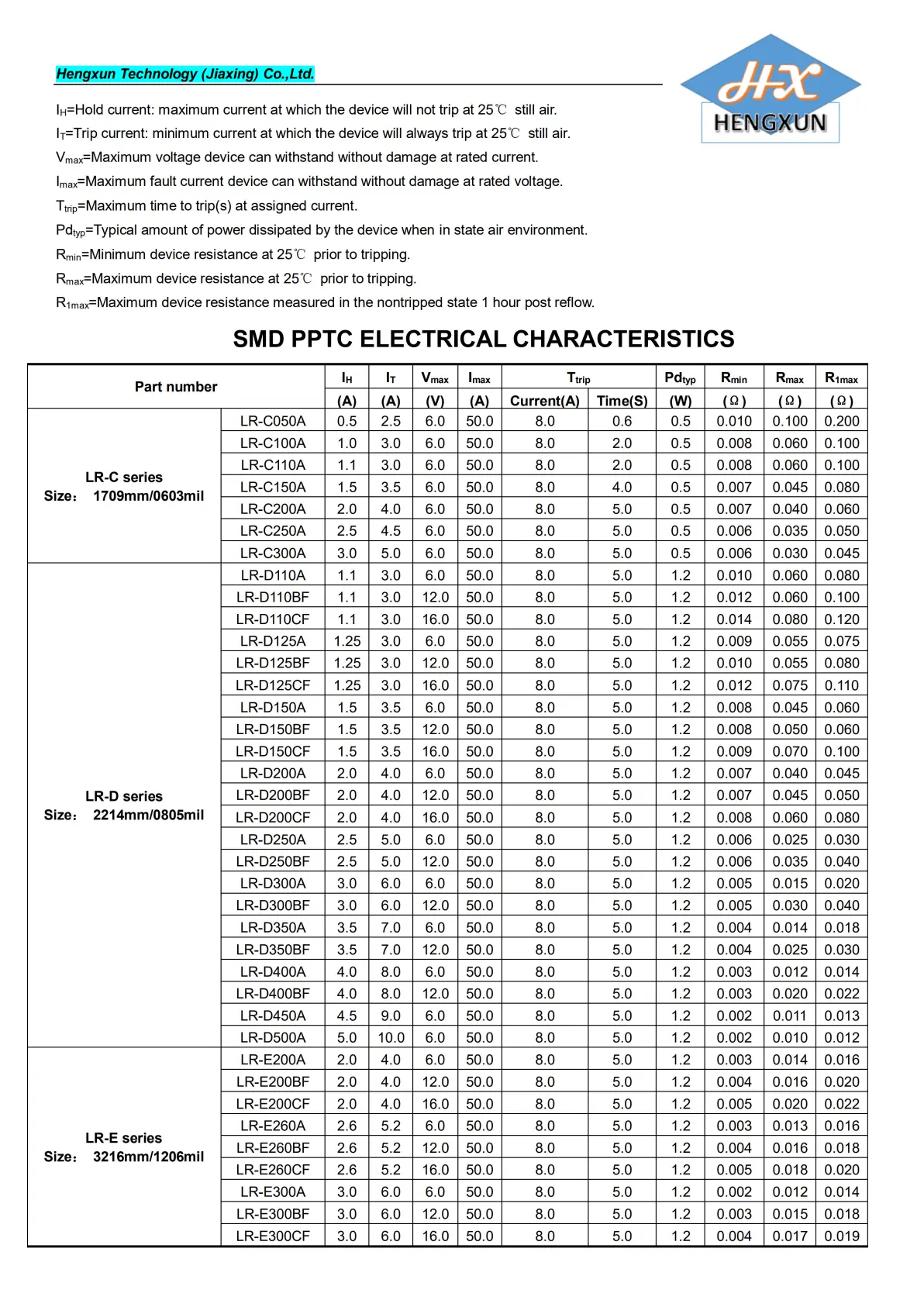

IH=Hold current: maximum current at which the device will not trip at 25℃ still air.

IT=Trip current: minimum current at which the device will always trip at 25℃ still air.

Vmax=Maximum voltage device can withstand without damage at rated current.

Imax=Maximum fault current device can withstand without damage at rated voltage.

Ttrip=Maximum time to trip(s) at assigned current.

Pdtyp=Typical amount of power dissipated by the device when in state air environment.

Rmin=Minimum device resistance at 25℃ prior to tripping.
