Linux安装Dlib及人脸关键点检测（68点/81点）

Linux  下安装dlib19.6 Face Landmark Detection

1、下载dlib

   下载dlib-19.6.zip
2、 C++编译dlib

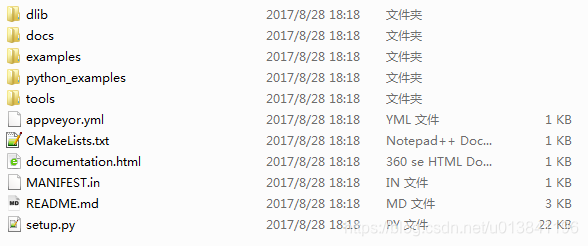

   从官网下载的dlib文件如下：

从dlib的根目录执行下面语句即可：

>>首先进入dlib的根目录下
>>再执行如下语句：
cd examples  #进入dlib下的examples文件夹
mkdir build  #新建build文件夹，存放cmake编译后的执行文件
cd build     #进入新建好的build文件夹
cmake ..     #cmake编译examples整个文件夹
cmake --build . --config Release

这只是编译好了examples下的dlib，要想编译整个dlib库，则执行以下代码即可：

>>进入dlib根目录下
mkdir buildcd build
cmake ..
make release=1

Dlib 关键点检测代码实现：

#include <dlib/opencv.h>
#include <opencv2/opencv.hpp>
#include <dlib/image_processing/frontal_face_detector.h>
#include <dlib/image_processing/render_face_detections.h>
#include <dlib/image_processing.h>
#include <dlib/gui_widgets.h>

using namespace dlib;
using namespace std;

int main()
{
	try
	{

		// Load face detection and pose estimation models.
		frontal_face_detector detector = get_frontal_face_detector();
		shape_predictor pose_model;
		deserialize("shape_predictor_68_face_landmarks.dat") >> pose_model;

		// Grab a frame
		string path = "XZQ.jpg";
		cv::Mat temp = cv::imread(path);

		cv_image<bgr_pixel> cimg(temp);
		// Detect faces
		std::vector<rectangle> faces = detector(cimg);
		// Find the pose of each face.
		std::vector<full_object_detection> shapes;
		for (unsigned long i = 0; i < faces.size(); ++i)
			shapes.push_back(pose_model(cimg, faces[i]));

		if (!shapes.empty()) {
			for (int i = 0; i < 68; i++) {
				circle(temp, cvPoint(shapes[0].part(i).x(), shapes[0].part(i).y()), 3, cv::Scalar(0, 0, 255), -1);
				//	shapes[0].part(i).x();//68个
			}
		}
		//imshow("Dlib特征点", temp);
		cv::imwrite("saveXZQ_landmark.jpg", temp);
        //cv::waitKey(0);

	}
	catch (exception& e)
	{
		cout << e.what() << endl;
	}
}

参考CMakeList.txt文件：

cmake_minimum_required(VERSION 2.8.4)  #版本最小为2.8.4

PROJECT(dlib_facedetector)   #设置工程名

SET(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -std=c++11 -O2 -DDLIB_JPEG_SUPPORT")

IF(CMAKE_CXX_COMPILER_ID STREQUAL "Clang")
  SET(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -Weverything")
ELSEIF(CMAKE_CXX_COMPILER_ID STREQUAL "GNU")
  SET(CMAKE_CXX_FLAGS "${CMAKE_CXX_FLAGS} -Wall -Wextra")
ENDIF()


# #INCLUDE OPENCV
# include_directories(/home/local/include/opencv/)
# include_directories(/home/local/include/opencv2/)
# include_directories(/home/local/include/)

# link_libraries(opencv_core)
# link_libraries(opencv_highgui)
# link_libraries(opencv_imgproc)

#INCLUDE OPENCV
FIND_PACKAGE(OpenCV REQUIRED)
INCLUDE_DIRECTORIES(${OpenCV_INCLUDE_DIRS})
message(STATUS "Opencv include dir found at ${OpenCV_INCLUDE_DIRS}")


#包含头文件
INCLUDE_DIRECTORIES(/dlib-19.6) #dlib根目录地址

LINK_DIRECTORIES(/dlib-19.6/build/dlib/) #dlib编译后bulid下dlib地址

#生产类似于.exe的可执行文件
ADD_EXECUTABLE(dlib_detector dilib_landmark.cpp)
#链接库
TARGET_LINK_LIBRARIES(dlib_detector dlib ${OpenCV_LIBS})
#TARGET_LINK_LIBRARIES(dlib_detector libjpeg.so)

编译执行，编译代码如下：

>>在自己建的工程文件夹下新建build文件夹
mkdir buildcd build
cmake ..
make -j8 #用make也行

然后再执行.cpp文件，执行代码如下：

>>在build文件夹下继续执行一行代码即可显示结果：
./dlib_detector

可能出现的问题：

   make出现/usr/bin/ld: 找不到 -lopencv_dep_cudart错误时候
解决方法： 在cmake时候加上参数即可。

   cmake -D CUDA_USE_STATIC_CUDA_RUNTIME=OFF .

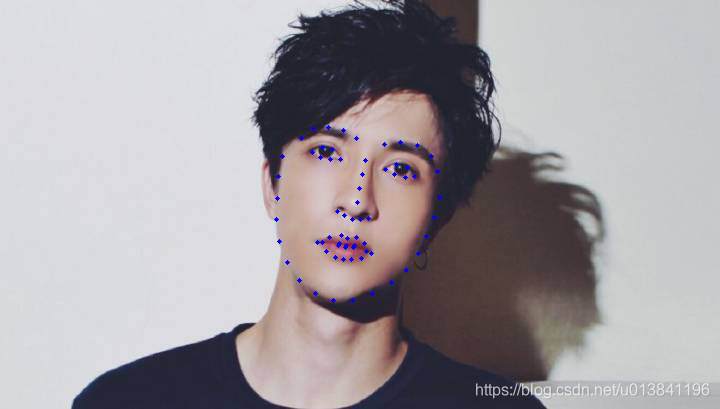

测试结果：

参考：https://blog.csdn.net/qq_17448289/article/details/56494998
