CentOS实战配置：Jira邮箱与邮箱服务器的搭建

笔记内容：CentOS7下搭建postfix邮箱服务器并实现extmail的web访问

笔记日期：2017-11-20

闲来无事想着尝试使用postfix搭建一个邮箱服务器，我是边搭建边写这个笔记，搭建过程中遇到坑也会一并记录，使用的系统版本如下：

本示例基于LNMP环境。

1. 准备工作

关闭selinux
[root@localhost ~]# setenforce 0
[root@localhost ~]# getenforce
Permissive
[root@localhost ~]#
关闭firewalld防火墙，并清空iptables规则：
[root@localhost ~]# systemctl stop firewalld
[root@localhost ~]# iptables -F
[root@localhost ~]# iptables -X
[root@localhost ~]# iptables -nvL
Chain INPUT (policy ACCEPT 38 packets, 7291 bytes)
pkts bytes target prot opt in out source destination
Chain FORWARD (policy ACCEPT 0 packets, 0 bytes)
pkts bytes target prot opt in out source destination
Chain OUTPUT (policy ACCEPT 12 packets, 1208 bytes)
pkts bytes target prot opt in out source destination
[root@localhost ~]#1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.

由于CentOS7默认安装的是MariaDB，所以要添加MySQL的yum源，有些编译需要的devel包只有epel扩展源有，所以我们需要把epel源也一并添加。因为是通过wget命令从下载地址中下载，但是最小化安装的CentOS7不自带wget命令，还需要先安装这个命令：

yum install -y wget
wget http://dev.mysql.com/get/mysql-community-release-el7-5.noarch.rpm
rpm -ivh mysql-community-release-el7-5.noarch.rpm
wget http://dl.fedoraproject.org/pub/epel/epel-release-latest-7.noarch.rpm
rpm -ivh epel-release-latest-7.noarch.rpm1.
2.
3.
4.
5.

2. 安装postfix

首先需要安装编译环境及其他所需要的包，免得一会编译过程中老报缺少包的错误，因为需要安装的包有点多，所以这个过程有点慢：

yum install nginx vim gcc gcc-c++ openssl openssl-devel db4-devel ntpdate mysql mysql-devel mysql-server bzip2 php-mysql cyrus-sasl-md5 perl-GD perl-DBD-MySQL perl-GD perl-CPAN perl-CGI perl-CGI-Session cyrus-sasl-lib cyrus-sasl-plain cyrus-sasl cyrus-sasl-devel libtool-ltdl-devel telnet mail libicu-devel -y
安装完以上所需的包后，开始编译安装postfix：1.
2.

1.首先卸载系统自带的postfix，并删除postfix用户，重新指定uid、gid创建新用户postfix，postdrop，嫌一条条命令去执行有点麻烦就写成脚本文件去执行：

yum remove postfix -y
userdel postfix
groupdel postdrop
groupadd -g 2525 postfix
useradd -g postfix -u 2525 -s /sbin/nologin -M postfix
groupadd -g 2526 postdrop
useradd -g postdrop -u 2526 -s /sbin/nologin -M postdrop1.
2.
3.
4.
5.
6.
7.

2.下载源码包并解压编译(如果下载地址失效就到官网去找下载连接)：

cd /usr/local/src/
wget http://cdn.postfix.johnriley.me/mirrors/postfix-release/official/postfix-3.0.11.tar.gz
tar -zxvf postfix-3.0.11.tar.gz
cd postfix-3.0.11
make makefiles 'CCARGS=-DHAS_MYSQL -I/usr/include/mysql -DUSE_SASL_AUTH -DUSE_CYRUS_SASL -I/usr/include/sasl -DUSE_TLS ' 'AUXLIBS=-L/usr/lib64/mysql -lmysqlclient -lz -lrt -lm -L/usr/lib64/sasl2 -lsasl2 -lssl -lcrypto'
make && make install
echo $?
在make install环节的时候会有个交互式的界面，可以自定义一些目录，我这里只更改了第二项临时文件目录，其他的都选择了默认目录：
Please specify the prefix for installed file names. Specify this ONLY
if you are building ready-to-install packages for distribution to OTHER
machines. See PACKAGE_README for instructions.
install_root: [/]
Please specify a directory for scratch files while installing Postfix. You
must have write permission in this directory.
tempdir: [/usr/local/src/postfix-3.0.11] /tmp/extmail // 就只更改这一项为tmp目录，其他的全部默认
Please specify the final destination directory for installed Postfix
configuration files.
config_directory: [/etc/postfix]
Please specify the final destination directory for installed Postfix
administrative commands. This directory should be in the command search
path of adminstrative users.
command_directory: [/usr/sbin]
Please specify the final destination directory for installed Postfix
daemon programs. This directory should not be in the command search path
of any users.
daemon_directory: [/usr/libexec/postfix]
Please specify the final destination directory for Postfix-writable
data files such as caches or random numbers. This directory should not
be shared with non-Postfix software.
data_directory: [/var/lib/postfix]
Please specify the final destination directory for the Postfix HTML
files. Specify "no" if you do not want to install these files.
html_directory: [no]
Please specify the owner of the Postfix queue. Specify an account with
numerical user ID and group ID values that are not used by any other
accounts on the system.
mail_owner: [postfix]
Please specify the final destination pathname for the installed Postfix
mailq command. This is the Sendmail-compatible mail queue listing command.
mailq_path: [/usr/bin/mailq]
Please specify the final destination directory for the Postfix on-line
manual pages. You can no longer specify "no" here.
manpage_directory: [/usr/local/man]
Please specify the final destination pathname for the installed Postfix
newaliases command. This is the Sendmail-compatible command to build
alias databases for the Postfix local delivery agent.
newaliases_path: [/usr/bin/newaliases]
Please specify the final destination directory for Postfix queues.
queue_directory: [/var/spool/postfix]
Please specify the final destination directory for the Postfix README
files. Specify "no" if you do not want to install these files.
readme_directory: [no]
Please specify the final destination pathname for the installed Postfix
sendmail command. This is the Sendmail-compatible mail posting interface.
sendmail_path: [/usr/sbin/sendmail]
Please specify the group for mail submission and for queue management
commands. Specify a group name with a numerical group ID that is
not shared with other accounts, not even with the Postfix mail_owner
account. You can no longer specify "no" here.
setgid_group: [postdrop]
Please specify the final destination directory for Postfix shared-library
files.
shlib_directory: [no]
3.更改目录的属主和属组：
chown -R postfix:postdrop /var/spool/postfix
chown -R postfix:postdrop /var/lib/postfix/
chown root /var/spool/postfix
chown -R root /var/spool/postfix/pid
4.修改postfix的配置文件：
[root@localhost ~]# vim /etc/postfix/main.cf
myhostname = mail.everyoo.com //设置主机名
mydomain = everyoo.com //指定域名
myorigin = $mydomain //指明发件人所在的域名
inet_interfaces = //all指定postfix系统监听的网络接口
mydestination = $myhostname, localhost.$mydomain, localhost,$mydomain //指定postfix接收邮件时收件人的域名 [使用虚拟域需要禁用]
mynetworks_style = host //指定信任网段类型
mynetworks = 192.168.77.1/24, 127.0.0.0/8 //指定信任的客户端
relay_domains = $mydestination //指定允许中转邮件的域名
alias_maps = hash:/etc/aliases //设置邮件的别名
5.然后需要在/etc/init.d/目录下提供一个脚本来管理postfix的启动与停止：
[root@localhost /var/www/extsuite/extman]# vim /etc/init.d/postfix
把下面的内容放在/etc/init.d/postfix里面：
#!/bin/bash
#
# postfix Postfix Mail Transfer Agent
#
# chkconfig: 2345 80 30
# description: Postfix is a Mail Transport Agent, which is the program \
# that moves mail from one machine to another.
# processname: master
# pidfile: /var/spool/postfix/pid/master.pid
# config: /etc/postfix/main.cf
# config: /etc/postfix/master.cf
# Source function library.
. /etc/rc.d/init.d/functions
# Source networking configuration.
. /etc/sysconfig/network
# Check that networking is up.
[ $NETWORKING = "no" ] && exit 3
[ -x /usr/sbin/postfix ] || exit 4
[ -d /etc/postfix ] || exit 5
[ -d /var/spool/postfix ] || exit 6
RETVAL=0
prog="postfix"
start() {
# Start daemons.
echo -n $"Starting postfix: "
/usr/bin/newaliases >/dev/null 2>&1
/usr/sbin/postfix start 2>/dev/null 1>&2 && success || failure $"$prog start"
RETVAL=$?
[ $RETVAL -eq 0 ] && touch /var/lock/subsys/postfix
echo
return $RETVAL
}
stop() {
# Stop daemons.
echo -n $"Shutting down postfix: "
/usr/sbin/postfix stop 2>/dev/null 1>&2 && success || failure $"$prog stop"
RETVAL=$?
[ $RETVAL -eq 0 ] && rm -f /var/lock/subsys/postfix
echo
return $RETVAL
}
reload() {
echo -n $"Reloading postfix: "
/usr/sbin/postfix reload 2>/dev/null 1>&2 && success || failure $"$prog reload"
RETVAL=$?
echo
return $RETVAL
}
abort() {
/usr/sbin/postfix abort 2>/dev/null 1>&2 && success || failure $"$prog abort"
return $?
}
flush() {
/usr/sbin/postfix flush 2>/dev/null 1>&2 && success || failure $"$prog flush"
return $?
}
check() {
/usr/sbin/postfix check 2>/dev/null 1>&2 && success || failure $"$prog check"
return $?
}
restart() {
stop
start
}
# See how we were called.
case "$1" in
start)
start
;;
stop)
stop
;;
restart)
stop
start
;;
reload)
reload
;;
abort)
abort
;;
flush)
flush
;;
check)
check
;;
status)
status master
;;
condrestart)
[ -f /var/lock/subsys/postfix ] && restart || :
;;
*)
echo $"Usage: $0 {start|stop|restart|reload|abort|flush|check|status|condrestart}"
exit 1
esac
exit $?
为脚本添加执行权限，并将服务添加到开机启动项中：
[root@localhost /var/www/extsuite/extman]# chmod +x /etc/init.d/postfix
[root@localhost /var/www/extsuite/extman]# chkconfig --add postfix
[root@localhost /var/www/extsuite/extman]# chkconfig postfix on
[root@localhost /var/www/extsuite/extman]# chown postfix.postfix -R /var/lib/postfix/
[root@localhost /var/www/extsuite/extman]# chown postfix.postfix /var/spool/ -R1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.
162.
163.
164.
165.
166.
167.
168.
169.
170.
171.
172.
173.
174.
175.
176.
177.
178.
179.
180.
181.
182.
183.
184.
185.
186.
187.

3. 安装dovecot

yum安装：
[root@localhost ~]# yum install -y dovecot dovecot-mysql
配置dovecot：
[root@localhost ~]# cd /etc/dovecot/
[root@localhost dovecot]# vim dovecot.conf //直接在配置文件最后添加即可
protocols = imap pop3
!include conf.d/*.conf
listen = *
base_dir = /var/run/dovecot/
[root@localhost dovecot]# cd conf.d/
[root@localhost conf.d]# vim 10-auth.conf
disable_plaintext_auth = no
[root@localhost conf.d]# vim 10-mail.conf
mail_location = maildir:~/Maildir
mail_location = maildir:/var/mailbox/%d/%n/Maildir
mail_privileged_group = mail
[root@localhost conf.d]# vim 10-ssl.conf
ssl = no
[root@localhost conf.d]# vim 10-logging.conf
log_path = /var/log/dovecot.log
info_log_path = /var/log/dovecot.info
log_timestamp = "%Y-%m-%d %H:%M:%S "
[root@localhost conf.d]# cp auth-sql.conf.ext auth-sql.conf
[root@localhost conf.d]# vim auth-sql.conf
passdb {
driver = sql
# Path for SQL configuration file, see example-config/dovecot-sql.conf.ext
args = /etc/dovecot/dovecot-sql.conf.ext
}
userdb {
driver = sql
args = /etc/dovecot/dovecot-sql.conf.ext
}
编辑dovecot通过mysql认证的配置文件：
[root@localhost conf.d]# vim /etc/dovecot-mysql.conf
driver = mysql
connect = host=localhost dbname=extmail user=extmail password=extmail
default_pass_scheme = CRYPT
password_query = SELECT username AS user,password AS password FROM mailbox WHERE username = '%u'
user_query = SELECT maildir, uidnumber AS uid, gidnumber AS gid FROM mailbox WHERE username = '%u'
4. 安装courier-authlib
下载解压并编译：
[root@localhost ~]# cd /usr/local/src/
[root@localhost /usr/local/src]# wget https://sourceforge.net/projects/courier/files/authlib/0.66.2/courier-authlib-0.66.2.tar.bz2
[root@localhost /usr/local/src]# tar -jxvf courier-authlib-0.66.2.tar.bz2
[root@localhost /usr/local/src]# cd courier-authlib-0.66.2
[root@localhost /usr/local/src/courier-authlib-0.66.2]# ./configure --prefix=/usr/local/courier-authlib --sysconfdir=/etc --without-authpam --without-authshadow --without-authvchkpw --without-authpgsql --with-authmysql --with-mysql-libs=/usr/lib64/mysql --with-mysql-includes=/usr/include/mysql --with-redhat --with-authmysqlrc=/etc/authmysqlrc --with-authdaemonrc=/etc/authdaemonrc --with-mailuser=postfix
[root@localhost /usr/local/src/courier-authlib-0.66.2]# make && makeinstall
编译过程中发生了一个错误：
configure: error: The Courier Unicode Library 1.2 appears not to be installed. You may need to install a separate development subpackage, in addition to the main package
这是因为Courier Unicode Library没有安装，我们下载courier-unicode-1.2并编译安装：
[root@localhost ~]# wget https://sourceforge.net/projects/courier/files/courier-unicode/1.2/courier-unicode-1.2.tar.bz2
[root@localhost ~]# tar jxvf courier-unicode-1.2.tar.bz2
[root@localhost ~]# cd courier-unicode-1.2
[root@localhost courier-unicode-1.2]# ./configure
[root@localhost courier-unicode-1.2]# make && make install
完成Courier Unicode Library的安装后，倒回去再次编译courier-authlib就没问题了
配置courier-authlib：
[root@localhost courier-authlib-0.66.2]# chmod 755 /usr/local/courier-authlib/var/spool/authdaemon
[root@localhost courier-authlib-0.66.2]# cp /etc/authdaemonrc.dist /etc/authdaemonrc
[root@localhost courier-authlib-0.66.2]# cp /etc/authmysqlrc.dist /etc/authmysqlrc
[root@localhost courier-authlib-0.66.2]# vim /etc/authdaemonrc //配置文件里的验证方法比较多，我们这里只使用authmysql
authmodulelist="authmysql"
authmodulelistorig="authmysql"
[root@localhost courier-authlib-0.66.2]# vim /etc/authmysqlrc //直接添加到配置文件尾部，然后去上面将响应系统默认的注视掉，或者删除即可
MYSQL_SERVER localhost
MYSQL_USERNAME extmail
MYSQL_PASSWORD extmail
MYSQL_SOCKET /var/lib/mysql/mysql.sock
MYSQL_PORT 3306
MYSQL_DATABASE extmail
MYSQL_USER_TABLE mailbox
MYSQL_CRYPT_PWFIELD password
DEFAULT_DOMAIN test.com
MYSQL_UID_FIELD '2525'
MYSQL_GID_FIELD '2525'
MYSQL_LOGIN_FIELD username
MYSQL_HOME_FIELD concat('/var/mailbox/',homedir)
MYSQL_NAME_FIELD name
MYSQL_MAILDIR_FIELD concat('/var/mailbox/',maildir)
courier-authlib添加服务启动脚本及其他：
[root@localhost courier-authlib-0.66.2]# cp courier-authlib.sysvinit /etc/init.d/courier-authlib
[root@localhost courier-authlib-0.66.2]# chmod +x /etc/init.d/courier-authlib
[root@localhost courier-authlib-0.66.2]# chkconfig --add courier-authlib
[root@localhost courier-authlib-0.66.2]# chkconfig courier-authlib on
[root@localhost courier-authlib-0.66.2]# echo "/usr/local/courier-authlib/lib/courier-authlib" >> /etc/ld.so.conf.d/courier-authlib.conf
[root@localhost courier-authlib-0.66.1]# ldconfig
[root@localhost courier-authlib-0.66.1]# service courier-authlib start
Starting Courier authentication services: authdaemond
smtp以及虚拟用户相关的设置：
[root@localhost ~]# vim /usr/lib64/sasl2/smtpd.conf //文件不存在，要自己创建
pwcheck_method: authdaemond
log_level: 3
mech_list: PLAIN LOGIN
authdaemond_path:/usr/local/courier-authlib/var/spool/authdaemon/socket
[root@localhost ~]# vim /etc/postfix/main.cf
##postfix支持SMTP##
smtpd_sasl_auth_enable = yes
smtpd_sasl_local_domain = ''
smtpd_recipient_restrictions = permit_mynetworks,permit_sasl_authenticated,reject_unauth_destination
broken_sasl_auth_clients=yes
smtpd_client_restrictions = permit_sasl_authenticated
smtpd_sasl_security_options = noanonymous
##postfix支持虚拟用户##
virtual_mailbox_base = /var/mailbox
virtual_mailbox_maps = mysql:/etc/postfix/mysql_virtual_mailbox_maps.cf //这里的配置文件需在后面extman
里复制过来
virtual_mailbox_domains = mysql:/etc/postfix/mysql_virtual_domains_maps.cf
virtual_alias_domains =
virtual_alias_maps = mysql:/etc/postfix/mysql_virtual_alias_maps.cf
virtual_uid_maps = static:2525
virtual_gid_maps = static:2525
virtual_transport = virtual
安装extmail
下载extmail和extman：
[root@localhost ~]# cd /usr/local/src/
[root@localhost /usr/local/src]# wget http://7xivyw.com1.z0.glb.clouddn.com/extmail-1.2.tar.gz
[root@localhost /usr/local/src]# wget http://7xivyw.com1.z0.glb.clouddn.com/extman-1.1.tar.gz
创建站点目录并解压、重命名extmail包：
[root@localhost /usr/local/src]# mkdir -p /var/www/extsuite
[root@localhost /usr/local/src]# tar -zxvf extmail-1.2.tar.gz -C /var/www/extsuite/
[root@localhost /usr/local/src]# mv /var/www/extsuite/extmail-1.2/ /var/www/extsuite/extmail
更改extmail的配置文件：
[root@localhost ~]# cd /var/www/extsuite/extmail
[root@localhost extmail]# cp webmail.cf.default webmail.cf
[root@localhost extmail]# vim webmail.cf
SYS_SESS_DIR = /tmp/extmail
SYS_UPLOAD_TMPDIR = /tmp/extmail/upload
SYS_USER_LANG = zh_CN
SYS_MIN_PASS_LEN = 8
SYS_MAILDIR_BASE = /var/mailbox
SYS_MYSQL_USER = extmail
SYS_MYSQL_PASS = extmail
SYS_MYSQL_DB = extmail
SYS_MYSQL_HOST = localhost
SYS_MYSQL_SOCKET = /var/lib/mysql/mysql.sock
SYS_MYSQL_TABLE = mailbox
SYS_MYSQL_ATTR_USERNAME = username
SYS_MYSQL_ATTR_DOMAIN = domain
SYS_MYSQL_ATTR_PASSWD = password
SYS_AUTHLIB_SOCKET = /usr/local/courier-authlib/var/spool/authdaemon/socket
建立临时文件目录与session目录，并更改权限：
[root@localhost extmail]# mkdir -p /tmp/extmail/upload
[root@localhost extmail]# chown -R postfix.postfix /tmp/extmail/
安装extman
回到extman的下载目录下，解压extman包：
[root@localhost ~]# cd /usr/local/src/
[root@localhost /usr/local/src]# tar -zxvf extman-1.1.tar.gz -C /var/www/extsuite/
[root@localhost /usr/local/src]# cd /var/www/extsuite/
[root@localhost /var/www/extsuite]# mv extman-1.1/ extman
拷贝extman的配置文件：
[root@localhost /var/www/extsuite]# cd extman/
[root@localhost /var/www/extsuite/extman]# cp webman.cf.default webman.cf
更改cgi目录的属主属组：
[root@localhost /var/www/extsuite/extman]# chown -R postfix.postfix /var/www/extsuite/extman/cgi/
[root@localhost /var/www/extsuite/extman]# chown -R postfix.postfix /var/www/extsuite/extmail/cgi/
导入数据库：
由于数据库不能识别TYPE=MyISAM，所以这里直接导入会出错，需要先编辑extmail.sql数据库文件，将文件中的TYPE=MyISAM更改为ENGINE=MyISAM，共有五处修改：
[root@localhost /var/www/extsuite/extman]# vim docs/extmail.sql
:% s/TYPE/ENGINE/g
我这里导入数据的时候发生了一个错误，提示找不到mysql.sock文件：
[root@localhost /var/www/extsuite/extman]# mysql -uroot < docs/extmail.sql
ERROR 2002 (HY000): Can't connect to local MySQL server through socket '/var/lib/mysql/mysql.sock' (2)
[root@localhost /var/www/extsuite/extman]# ls /var/lib/mysql/mysql.sock
ls: 无法访问/var/lib/mysql/mysql.sock: 没有那个文件或目录
解决：然后我去查看了一下/etc/my.cnf文件，发现没问题，socket参数指向的也是 /var/lib/mysql/mysql.sock 这个路径，于是我就重启了mysql服务，然后再尝试就没有报找不到mysql.sock文件的错误了，但是报了另一个错误：
[root@localhost /var/www/extsuite/extman]# mysql -uroot < docs/extmail.sql
ERROR 1364 (HY000) at line 31: Field 'ssl_cipher' doesn't have a default value
[root@localhost /var/www/extsuite/extman]#1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.
162.
163.
164.
165.
166.
167.
168.
169.

这错误的意思是：字段 'ssl密码' 没有默认值

于是又得去查看一下/etc/my.cnf文件，然后把sql_mode参数给注释掉：

centos jira 配置邮箱 centos搭建邮箱服务器_mysql

接着重启mysql服务后，继续导入数据，这次就没问题了：

[root@localhost /var/www/extsuite/extman]# !service
service mysqld restart
Redirecting to /bin/systemctl restart mysqld.service
[root@localhost /var/www/extsuite/extman]# mysql -uroot < docs/extmail.sql
[root@localhost /var/www/extsuite/extman]# mysql -uroot < docs/init.sql1.
2.
3.
4.
5.

导入数据成功后再次修改/etc/my.cnf文件，把刚刚注释的那行给去掉注释，不去掉的话，mysql服务可能会出现不能启动的问题：

centos jira 配置邮箱 centos搭建邮箱服务器_perl_02

数据导入成功后，登录mysql，创建一个mysql数据库用户extmail并授予权限：

[root@localhost /var/www/extsuite/extman]# mysql -uroot
mysql> GRANT ALL ON extmail.* to extmail@'%' identified by 'extmail'; //我这里是直接授予全部权限在任意的IP地址上了，实际情况根据需求而定
Query OK, 0 rows affected (0.00 sec)
mysql> FLUSH PRIVILEGES;
Query OK, 0 rows affected (0.00 sec)
mysql>1.
2.
3.
4.
5.
6.

复制之前提到的配置文件：

[root@localhost ~]# cd /var/www/extsuite/extman/docs/
[root@localhost /var/www/extsuite/extman/docs]# cp mysql_virtual_* /etc/postfix/
为extman创建临时目录：
[root@localhost /var/www/extsuite/extman/docs]# mkdir /tmp/extman
[root@localhost /var/www/extsuite/extman/docs]# chown -R postfix.postfix /tmp/extman/
启动postfix、dovecot、saslauthd服务，并查看进程是否正常：
[root@localhost /var/www/extsuite/extman]# service postfix start
Starting postfix (via systemctl): [ 确定 ]
[root@localhost /var/www/extsuite/extman]# ps aux |grep postfix
root 63586 0.0 0.1 95392 2160 ? Ss 01:29 0:00 /usr/libexec/postfix/master -w
postfix 63587 0.0 0.2 95448 3808 ? S 01:29 0:00 pickup -l -t unix -u
postfix 63588 0.0 0.2 95496 3816 ? S 01:29 0:00 qmgr -l -t unix -u
root 63592 0.0 0.0 112680 976 pts/0 S+ 01:33 0:00 grep --color=auto postfix
[root@localhost /var/www/extsuite/extman]# ss -tnluo | grep :25
tcp LISTEN 0 100 *:25 *:*
[root@localhost /var/www/extsuite/extman]# service dovecot start
Redirecting to /bin/systemctl start dovecot.service
[root@localhost /var/www/extsuite/extman]# ps aux |grep dovecot
root 63834 0.3 0.0 15652 1484 ? Ss 02:15 0:00 /usr/sbin/dovecot -F
dovecot 63837 0.0 0.0 9320 1012 ? S 02:15 0:00 dovecot/anvil
root 63838 0.0 0.0 9448 1164 ? S 02:15 0:00 dovecot/log
root 63840 0.0 0.1 12464 2196 ? S 02:15 0:00 dovecot/config
root 63842 0.0 0.0 112680 972 pts/0 S+ 02:15 0:00 grep --color=auto dovecot
[root@localhost /var/www/extsuite/extman]# systemctl start saslauthd
[root@localhost /var/www/extsuite/extman]# ps aux |grep saslauthd
root 63131 0.0 0.0 69648 916 ? Ss 01:19 0:00 /usr/sbin/saslauthd -m /run/saslauthd -a pam
root 63132 0.0 0.0 69648 676 ? S 01:19 0:00 /usr/sbin/saslauthd -m /run/saslauthd -a pam
root 63133 0.0 0.0 69648 676 ? S 01:19 0:00 /usr/sbin/saslauthd -m /run/saslauthd -a pam
root 63134 0.0 0.0 69648 676 ? S 01:19 0:00 /usr/sbin/saslauthd -m /run/saslauthd -a pam
root 63135 0.0 0.0 69648 676 ? S 01:19 0:00 /usr/sbin/saslauthd -m /run/saslauthd -a pam
root 63144 0.0 0.0 112680 972 pts/0 S+ 01:20 0:00 grep --color=auto saslauthd
[root@localhost /var/www/extsuite/extman]# ps aux |grep courier-authlib
root 61661 0.0 0.0 4316 444 ? S 00:07 0:00 /usr/local/courier-authlib/sbin/courierlogger -pid=/usr/local/courier-authlib/var/spool/authdaemon/pid -start /usr/local/courier-authlib/libexec/courier-authlib/authdaemond
root 61662 0.0 0.0 35512 1796 ? S 00:07 0:00 /usr/local/courier-authlib/libexec/courier-authlib/authdaemond
root 61663 0.0 0.0 35512 468 ? S 00:07 0:00 /usr/local/courier-authlib/libexec/courier-authlib/authdaemond
root 61664 0.0 0.0 35512 468 ? S 00:07 0:00 /usr/local/courier-authlib/libexec/courier-authlib/authdaemond
root 61665 0.0 0.0 35512 468 ? S 00:07 0:00 /usr/local/courier-authlib/libexec/courier-authlib/authdaemond
root 61666 0.0 0.0 35512 468 ? S 00:07 0:00 /usr/local/courier-authlib/libexec/courier-authlib/authdaemond
root 61667 0.0 0.0 35512 468 ? S 00:07 0:00 /usr/local/courier-authlib/libexec/courier-authlib/authdaemond
root 63660 0.0 0.0 112680 980 pts/0 S+ 02:00 0:00 grep --color=auto courier-authlib
7. 测试
测试虚拟用户：
[root@localhost courier-authlib-0.66.2]# /usr/local/courier-authlib/sbin/authtest -s login postmaster@extmail.org extmail
Authentication succeeded. //显示这个表示成功，测试时使用的是postmaster@extmail.org，因为我们导入的数据库init.sql里面自带了这个。
Authenticated: postmaster@extmail.org (uid 2525, gid 2525)
Home Directory: /var/mailbox/extmail.org/postmaster //这里需要注意/var/mailbox这个目录现在我们还没有创建，后面web访问的时候如果没有会报错,所以提前创建。
Maildir: /var/mailbox/extmail.org/postmaster/Maildir/
Quota: (none)
Encrypted Password: $1$phz1mRrj$3ok6BjeaoJYWDBsEPZb5C0
Cleartext Password: extmail
Options: (none)
[root@localhost courier-authlib-0.66.2]# mkdir /var/mailbox
[root@localhost courier-authlib-0.66.2]# chown -R postfix.postfix /var/mailbox/
测试smtp发信：
[root@localhost ~]# printf "postmaster@extmail.org" | openssl base64
cG9zdG1hc3RlckBleHRtYWlsLm9yZw==
[root@localhost ~]# printf "extmail" | openssl base64
ZXh0bWFpbA==
[root@localhost ~]# telnet localhost 25
Trying ::1...
telnet: connect to address ::1: Connection refused
Trying 127.0.0.1...
Connected to localhost.
Escape character is '^]'.
220 mail.daen.com ESMTP Postfix
auth login
334 VXNlcm5hbWU6
cG9zdG1hc3RlckBleHRtYWlsLm9yZw==
334 UGFzc3dvcmQ6
ZXh0bWFpbA==
235 2.7.0 Authentication successful //成功
quit
221 2.0.0 Bye
Connection closed by foreign host.
8. 启动nginx实现web访问
nginx本身并不能解析cgi，extmail自带了解析cgi的程序，但是有些地方需要修改下：
[root@localhost ~]# vim /var/www/extsuite/extmail/dispatch-init
SU_UID=postfix
SU_GID=postfix
启动dispatch-init：
[root@localhost ~]# /var/www/extsuite/extmail/dispatch-init start
Starting extmail FCGI server...
[root@localhost ~]# /var/www/extsuite/extman/daemon/cmdserver -v -d
loaded ok
添加nginx虚拟主机：
vim /etc/nginx/conf.d/extmail.conf
文件内容如下：
server {
listen 8080;
server_name mail.everyoo.com;
index index.html index.htm index.php index.cgi;
root /var/www/extsuite/extmail/html/;
location /extmail/cgi/ {
fastcgi_pass 127.0.0.1:8888;
fastcgi_index index.cgi;
fastcgi_param SCRIPT_FILENAME /var/www/extsuite/extmail/cgi/$fastcgi_script_name;
include fcgi.conf;
}
location /extmail/ {
alias /var/www/extsuite/extmail/html/;
}
location /extman/cgi/ {
fastcgi_pass 127.0.0.1:8888;
fastcgi_index index.cgi;
fastcgi_param SCRIPT_FILENAME /var/www/extsuite/extman/cgi/$fastcgi_script_name;
include fcgi.conf;
}
location /extman/ {
alias /var/www/extsuite/extman/html/;
}
access_log /var/log/extmail_access.log;
}
创建fcgi.conf文件：
vim /etc/nginx/fcgi.conf
文件内容如下：
fastcgi_param GATEWAY_INTERFACE CGI/1.1;
fastcgi_param SERVER_SOFTWARE nginx;
fastcgi_param QUERY_STRING $query_string;
fastcgi_param REQUEST_METHOD $request_method;
fastcgi_param CONTENT_TYPE $content_type;
fastcgi_param CONTENT_LENGTH $content_length;
fastcgi_param SCRIPT_NAME $fastcgi_script_name;
fastcgi_param REQUEST_URI $request_uri;
fastcgi_param DOCUMENT_ROOT $document_root;
fastcgi_param SERVER_PROTOCOL $server_protocol;
fastcgi_param REMOTE_ADDR $remote_addr;
fastcgi_param REMOTE_PORT $remote_port;
fastcgi_param SERVER_ADDR $server_addr;
fastcgi_param SERVER_PORT $server_port;
fastcgi_param SERVER_NAME $server_name;
安装Unix::Syslog：
[root@localhost ~]# cd /usr/local/src/
[root@localhost /usr/local/src]# wget http://www.cpan.org/authors/id/M/MH/MHARNISCH/Unix-Syslog-1.1.tar.gz
[root@localhost /usr/local/src]# tar zxvf Unix-Syslog-1.1.tar.gz
[root@localhost /usr/local/src]# cd Unix-Syslog-1.1
[root@localhost /usr/local/src/Unix-Syslog-1.1]# perl Makefile.PL
[root@localhost /usr/local/src/Unix-Syslog-1.1]# make && make install
启动nginx，并检查进程和监听端口是否正常：
[root@localhost ~]# service nginx start
Redirecting to /bin/systemctl start nginx.service
[root@localhost ~]# ps aux |grep nginx
root 72338 0.0 0.1 122892 2296 ? Ss 03:22 0:00 nginx: master process /usr/sbin/nginx
nginx 72339 0.0 0.1 123336 3192 ? S 03:22 0:00 nginx: worker process
nginx 72340 0.0 0.1 123336 3192 ? S 03:22 0:00 nginx: worker process
nginx 72341 0.0 0.1 123336 3192 ? S 03:22 0:00 nginx: worker process
nginx 72342 0.0 0.1 123336 3192 ? S 03:22 0:00 nginx: worker process
root 72344 0.0 0.0 112680 976 pts/0 S+ 03:22 0:00 grep --color=auto nginx
[root@localhost ~]# netstat -lntp
Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 0.0.0.0:110 0.0.0.0:* LISTEN 63834/dovecot
tcp 0 0 0.0.0.0:143 0.0.0.0:* LISTEN 63834/dovecot
tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN 72338/nginx: master
tcp 0 0 0.0.0.0:8080 0.0.0.0:* LISTEN 72338/nginx: master
tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN 1482/sshd
tcp 0 0 127.0.0.1:8888 0.0.0.0:* LISTEN 64100/dispatch.fcgi
tcp 0 0 0.0.0.0:25 0.0.0.0:* LISTEN 64328/master
tcp6 0 0 :::3306 :::* LISTEN 62442/mysqld
tcp6 0 0 :::80 :::* LISTEN 72338/nginx: master
tcp6 0 0 :::22 :::* LISTEN 1482/sshd
[root@localhost ~]#1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.

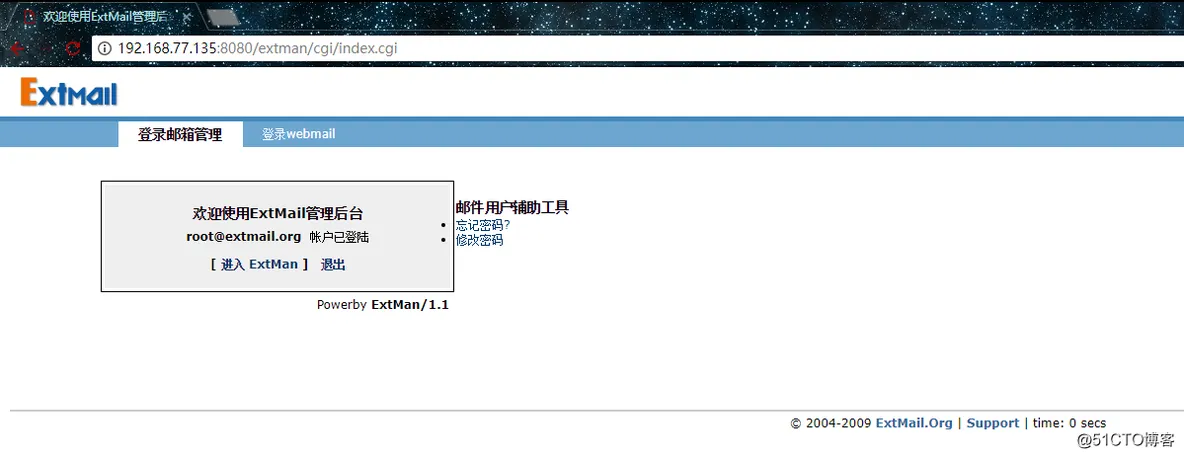

然后到windows上访问你服务器IP的8080端口：

centos jira 配置邮箱 centos搭建邮箱服务器_perl_03

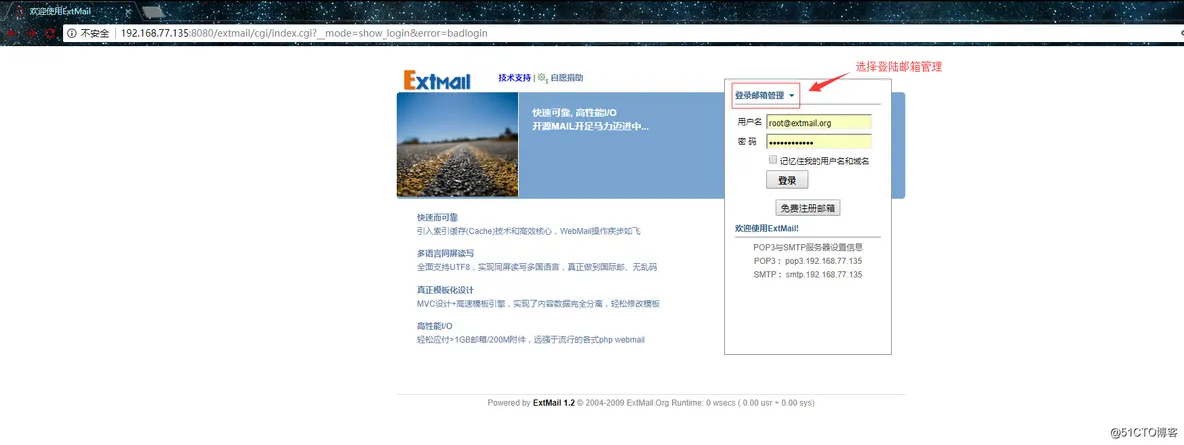

extman的登录账户为root@extmail.org密码为extmail*123*，首次使用需要先添加域，添加之后再修改域，改为可自由注册，再注册用户就可以登录发邮件了：

centos jira 配置邮箱 centos搭建邮箱服务器_centos jira 配置邮箱_04

返回上级列表

请

联系我们

，获取更多内容

< 上一篇: Docker与Jenkins对比：Jira部署的优势分析

下一篇: Postman实战应用：连接Jira REST API并调用HTTPS接口 >
