UNet算法详解：TensorFlow版代码实现

Unet——用于图像边缘检测，是FCN的改进

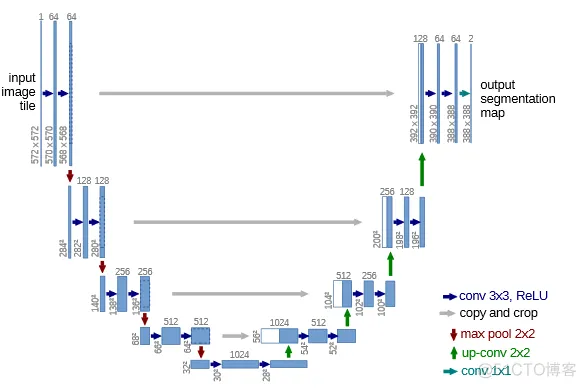

如上图是UNET的架构图，可以发现器输入图像和输出图像不一致，如果我们需要输入图像和输出图像一致时，在卷积时，使用padding=“SAME”即可，然后再边缘检测时，就相当与像素级别的二分类问题，用交叉熵做loss函数即可。但位置检测常用IOU作为loss函数。

个人觉得UNET的优点：

1.Unet的去除了全链接层，可以接受图像大小不一致的输入(在训练时，同一个批图像大小可以不一致吗？)

2.Unet的最重要的是，他还保留了位置信息，讲低级特征图和编码部分对应连接，保留位置信息，所以可以用于图像生成、图像的语义分割和GAN相结合等等，和胶囊网络的比较？

3. U-Net: Convolutional Networks for Biomedical Image Segmentation,是边缘检测的论文，边缘检测这类问题，标签数据是非常少且昂贵的，而要训练deep network需要很多数据，所以应该应用用了图像镜像，图像扭曲，仿射变换等图像增强技术。

tensorflow的实现

#coding:utf-8
import tensorflow as tf
import argparse
import Augmentor
import os
import glob
from PIL import Image
import numpy as np
from data import *

parser = argparse.ArgumentParser()
parser.add_argument('--image_size', type=int, default=512)
parser.add_argument('--batch_size', type=int, default=2)
parser.add_argument('--n_epoch', type=int, default=2000)
param = parser.parse_args()
def conv_pool(input,filters_1,filters_2,kernel_size,name = 'conv2d'):
   with tf.variable_scope(name):
        conv_1 = tf.layers.conv2d(inputs=input,filters= filters_1,kernel_size=kernel_size,padding="same",
                                  activation=tf.nn.relu,kernel_initializer=tf.contrib.layers.variance_scaling_initializer(),name = "conv_1")
        conv_2 = tf.layers.conv2d(inputs=conv_1,filters= filters_2,kernel_size=kernel_size,padding="same",
                                  activation=tf.nn.relu,kernel_initializer=tf.contrib.layers.variance_scaling_initializer(),name = "conv_2")
        pool = tf.layers.max_pooling2d(inputs = conv_2,pool_size = [2,2],strides = 2,padding = "same",name = 'pool')
        return conv_2,pool

def upconv_concat(inputA,inputB,filters,kernel_size,name="upconv"):
     with tf.variable_scope(name):
         up_conv = tf.layers.conv2d_transpose(inputs = inputA,filters = filters,kernel_size = kernel_size,strides = (2,2),padding ="same",
                                        activation=tf.nn.relu,kernel_initializer=tf.contrib.layers.variance_scaling_initializer(),name = 'up_conv')
         return tf.concat([up_conv, inputB], axis=-1, name="concat")


class U_net(object):
    def __init__(self):
        self.name = "U_NET"
    def __call__(self,x,reuse = False):
        with tf.variable_scope(self.name) as scope:
            if reuse:
                scope.reuse_variables()
            conv_1,pool_1 = conv_pool(x,64,64,[3,3],name="conv_pool_1")
            conv_2,pool_2 = conv_pool(pool_1,128,128,[3,3],name="conv_pool_2")
            conv_3,pool_3 = conv_pool(pool_2,256,256,[3,3],name="conv_pool_3")
            conv_4,pool_4 = conv_pool(pool_3,512,512,[3,3],name="conv_pool_4")
            conv_5,pool_5 = conv_pool(pool_4,1024,1024,[3,3],name="conv_pool_5")

            upconv_6 = upconv_concat(conv_5,conv_4,512,[2,2],name="upconv_6")
            conv_6,pool_6 = conv_pool(upconv_6,512,512,[3,3],name="conv_pool_6")

            upconv_7 = upconv_concat(conv_6,conv_3,256,[2,2],name="upconv_7")
            conv_7,pool_7 = conv_pool(upconv_7,256,256,[3,3],name="conv_pool_7")

            upconv_8 = upconv_concat(conv_7,conv_2,128,[2,2],name="upconv_8")
            conv_8,pool_8 = conv_pool(upconv_8,128,128,[3,3],name="conv_pool_8")

            upconv_9 = upconv_concat(conv_8,conv_1,64,[2,2],name="upconv_9")
            conv_9,pool_9 = conv_pool(upconv_9,64,64,[3,3],name="conv_pool_9")

            conv_10 = tf.layers.conv2d(inputs=conv_9,filters= 2,kernel_size=[3,3],padding="same",
                                  activation=tf.nn.relu,kernel_initializer=tf.contrib.layers.variance_scaling_initializer(),name = "conv_10")
            output_image = tf.layers.conv2d(inputs=conv_10,filters= 1,kernel_size=[1,1],padding="same",
                                  activation=tf.nn.sigmoid,kernel_initializer=tf.contrib.layers.variance_scaling_initializer(),name = "output_image")

            return output_image

    @property
    def vars(self):
        return tf.get_collection(tf.GraphKeys.TRAINABLE_VARIABLES, scope=self.name)
class U_net_train(object):
    def __init__(self,unet,data,name = "unet_train"):
        self.name = name
        self.unet = unet
        self.imagesize = param.image_size
        self.train_data = tf.placeholder(tf.float32, shape=[None, self.imagesize, self.imagesize, 1], name = "train_data")
        tf.summary.image("train_image",self.train_data,2)
        self.train_label = tf.placeholder(tf.float32, shape=[None, self.imagesize, self.imagesize, 1], name = "train_label")
        tf.summary.image("train_label",self.train_label,2)
        self.data = data
        self.predict_label = self.unet(self.train_data)
        tf.summary.image("output_image",self.predict_label,2)
        with tf.name_scope('loss'):
            self.loss = - tf.reduce_mean(self.train_label * tf.log(self.predict_label + 1e-8) + (1-self.train_label) * tf.log(1 - self.predict_label + 1e-8 ))
            tf.summary.scalar('loss',self.loss)
        #self.loss = tf.reduce_mean(tf.nn.sigmoid_cross_entropy_with_logits(labels = self.train_label,logits = self.predict_label,name = 'loss'))
        with tf.name_scope("train"):
            self.optimizer = tf.train.AdamOptimizer(learning_rate=0.0001).minimize(self.loss)
        self.saver = tf.train.Saver()
        gpu_options = tf.GPUOptions(allow_growth = True)
        with tf.name_scope('init_sessoin'):
            self.sess = tf.InteractiveSession(config=tf.ConfigProto(gpu_options=gpu_options))
        #self.sess = tf.Session()
        self.merged = tf.summary.merge_all()
    def train(self, sample_dir, restore = False,ckpt_dir='ckpt'):
        if restore:
            print("hhhh")
            self.saver.restore(self.sess,"ckpt/unet.ckpt")
        self.sess.run(tf.global_variables_initializer())
        writer = tf.summary.FileWriter("./logs_1/", self.sess.graph)
        for epoch in range(param.n_epoch):
            images, labels = self.data(param.batch_size)
            loss,_,rs = self.sess.run([self.loss,self.optimizer,self.merged],feed_dict={self.train_data: images, self.train_label: labels})
            writer.add_summary(rs, epoch)
            if epoch % 50 == 1:
                print('Iter: {}; loss: {:.10}'.format(epoch, loss))
            if (epoch + 21) % 100 == 1:
                self.saver.save(self.sess, os.path.join(ckpt_dir, "unet.ckpt"))
                self.test()
        self.saver.save(self.sess, os.path.join(ckpt_dir, "unet.ckpt"))
    def test(self):
        #test_image = glob.glob("./data/test/*.tif")
        test_images = np.zeros((1,512,512,1))
        for i in range(1):
            test_images[i,:,:,:] = np.array(Image.open("./data/test/"+str(i)+".tif")).reshape(512,512,1)/255.
        #saver = tf.train.Saver()
        #gpu_options = tf.GPUOptions(allow_growth=True)
        #self.sess = tf.Session(config=tf.ConfigProto(gpu_options=gpu_options))
        self.saver.restore(self.sess,"ckpt/unet.ckpt")
        #test_labels = self.unet(test_images,reuse = True)
        test_labels = self.sess.run(self.predict_label,feed_dict={self.train_data: test_images})
        for i in range(1):
            image = test_labels[i,:,:,:] * 255.
            testimage = image.reshape((512,512))
            testimage =testimage.astype(np.uint8)
            im = Image.fromarray(testimage)
            im.save("./data/test/label"+str(i)+".tif")
if __name__ == '__main__':

    # constraint GPU
    #os.environ['CUDA_VISIBLE_DEVICES'] = '0'

    unet = U_net()
    data = DATA()
    u_train = U_net_train(unet,data)
    u_train.train("./data/model/",restore=False)
    u_train.test()


View Code

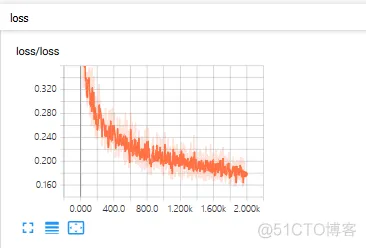

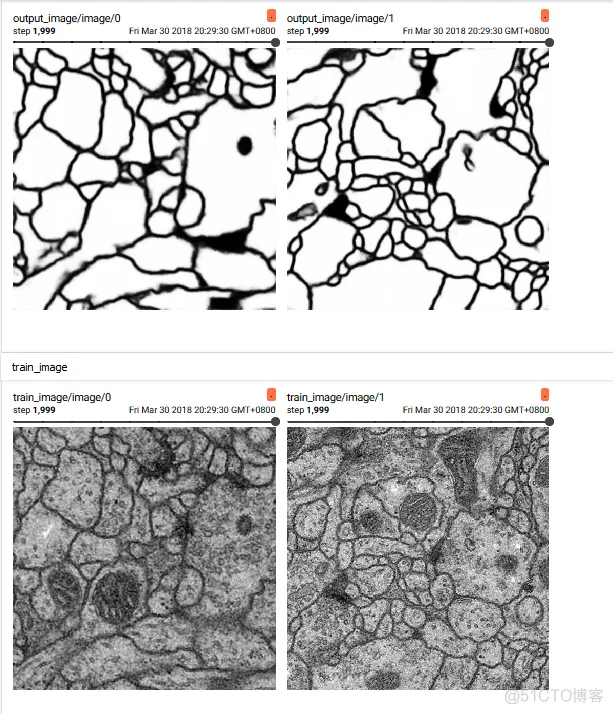

效果图

踩过的坑，原论文中网络之后一层变成2个通道的没加，直接加上了输出通道效果一直不好，个人以为可能特征太多，没有转化为高级特征，所以造成不收敛效果不好的问题。

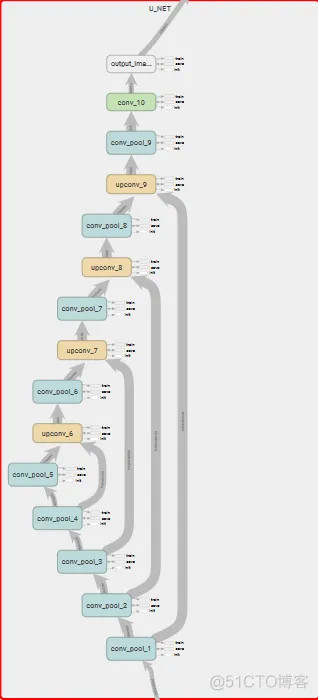

因tensorboard的图太大，这里就截个一个tensorboard的局部图：
